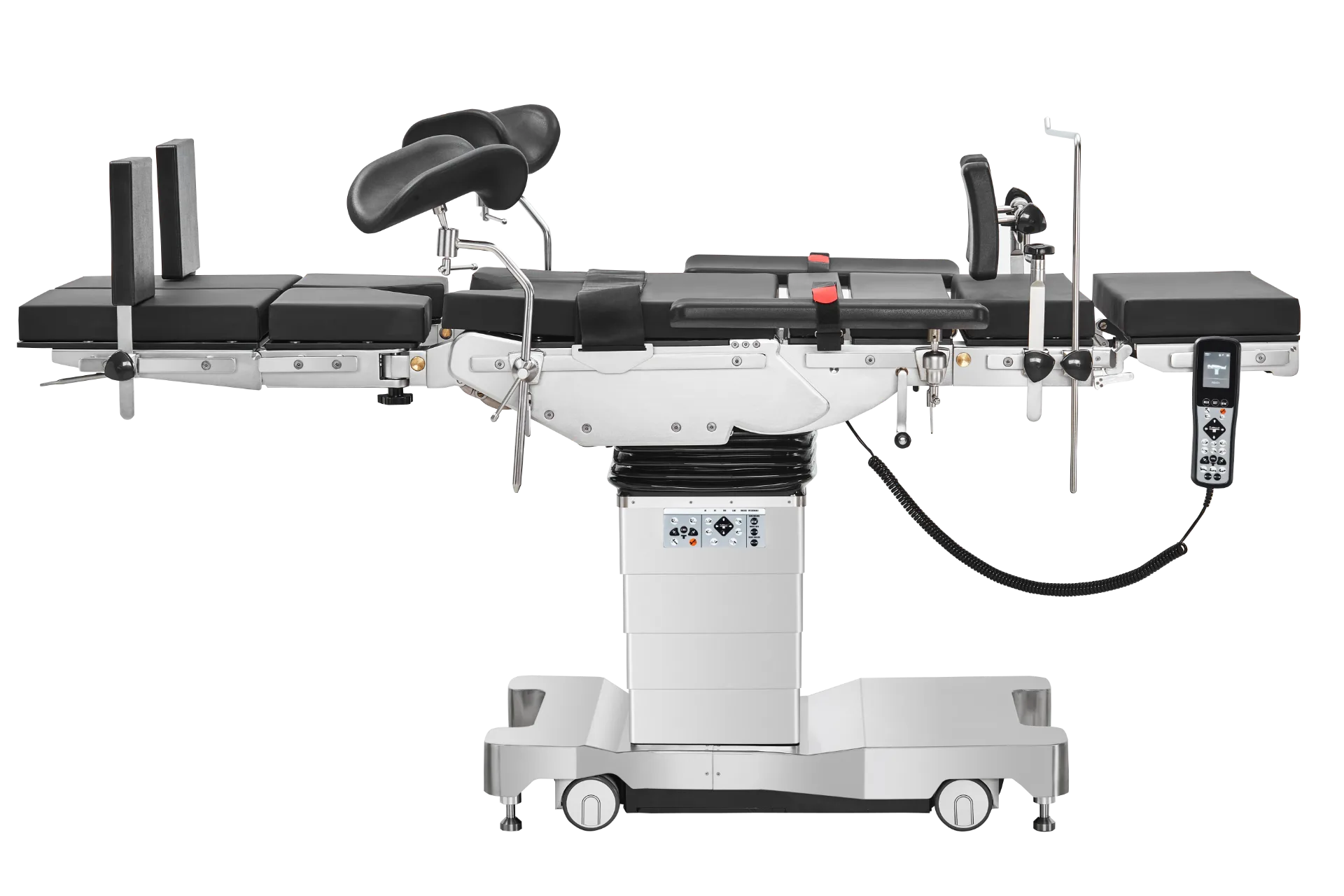

TDY-Y-2 Special Version Electro-Hydraulic Operating Table

Product Overview

The TDY-Y-2 Special Version Electro-Hydraulic Operating Table is a Class I Type B medical device with IPX4 splash-proof certification and EC safety certification, engineered for complex, diversified surgical workflows in large comprehensive hospitals and specialist surgery centers. Its standout feature — the interchangeable upper back plate and leg plate design — greatly expands the range of achievable surgical positions, making it uniquely suited for orthopedics, neurosurgery, abdominal surgery, gynecology, anorectal surgery, and emergency trauma operations. With an industry-leading 350kg safe load capacity, 480mm lifting stroke, dual LCD control system with position memory, and C-arm compatible sliding structure, this special edition surgical table delivers stable, safe, and intelligent patient positioning for the most demanding operating rooms.

Key Features & Advantages

Interchangeable Back & Leg Plate Design (Exclusive): The upper back plate and leg plate can be disassembled and swapped via side quick-release snap fasteners, enabling customized tabletop layouts for special surgical postures. This unique function dramatically expands positioning versatility beyond any standard operating table.

Ultra-Wide Adjustment Range: Trendelenburg/reverse-Trendelenburg >=35 degrees, lateral tilt >=25 degrees, back plate upward >=85 degrees, electric leg plates synchronous upward >=80 degrees, kidney bridge lift >=120mm, and longitudinal sliding >=310mm for C-arm fluoroscopy.

350kg Safe Working Load: Reinforced with thickened hydraulic cylinders and high-strength frame, stably supporting overweight patients plus full accessory sets without frame shaking or hydraulic leakage.

Dual Intelligent LCD Control System: Standard wired LCD hand remote with multi-language support, custom position memory (save/recall/delete), real-time battery query, fault diagnosis error codes, and one-click presets (zero, chair, flex, reflex). Optional column-mounted panel with exclusive INTERCHANGE indicator.

480mm Lifting Stroke: The largest vertical adjustment range in the product line, accommodating surgeons of all heights and complex auxiliary equipment placement. Minimum height 560+/-50mm.

Clinical Applications

The TDY-Y-2 Special Version is designed for complex multi-discipline operating rooms:

• Orthopedic Surgery: Joint replacement, spine surgery, and trauma fixation with interchangeable plates for specialized positioning and C-arm fluoroscopy support
• Neurosurgery: Craniotomy and spinal neurosurgery with detachable head plate and 35-degree Trendelenburg capability
• Abdominal Surgery: Hepatobiliary, gastrointestinal, and hernia procedures with kidney bridge elevation and flex positioning
• Gynecological Surgery: Hysterectomy, laparoscopy, and pelvic procedures with split leg plates and Trendelenburg positioning
• Anorectal Surgery: Rectal and anal procedures with leg plate outward spreading >=90 degrees
• Emergency Trauma Surgery: Rapid multi-position setup for polytrauma with 350kg load capacity for overweight patients
• Plastic & Minimally Invasive Surgery: Aesthetic and reconstructive procedures requiring precise multi-angle positioning

Comparison: TDY-Y-2 Special Version vs Standard Multifunctional Model

Technical Specifications

• Model: TDY-Y-2 Special Version Electro-Hydraulic Operating Table
• Total tabletop length: >=2100 mm
• Tabletop width: 550+/-20 mm (rails excluded)
• Minimum tabletop height: 560+/-50 mm
• Total lifting stroke: >=480 mm
• Safe working load: 350 kg
• Trendelenburg / reverse-Trendelenburg: >=35 degrees
• Max lateral tilt: >=25 degrees
• Head plate: upward >=40 deg, downward >=90 deg, fully detachable
• Back plate: upward >=85 deg, downward >=40 deg (segmented)
• Leg plates (electric): synchronous upward >=80 deg, downward >=90 deg; independent left/right control
• Leg plates (manual): downward >=90 deg, outward >=90 deg
• Flex position: >=220 deg | Reflex position: <=100 deg
• Kidney bridge lift: >=120 mm
• Longitudinal sliding: >=310 mm
• Power supply: AC 220V+/-10%, 50Hz+/-1Hz; compatible with 110V/60Hz
• Input power: 650VA
• DC backup: Built-in lead-acid battery pack
• Fuse protection: 2x F5AL AC + 1x F20AL DC
• Gross weight: 355 kg | Net weight: 305 kg
• Packing dimension: 1350x750x740 mm
• IP rating: IPX4 splash-proof
• Certification: EC safety certification

Frequently Asked Questions (FAQ)

Q: What is the interchangeable back and leg plate feature, and why is it important?
A: The TDY-Y-2 Special Version allows users to disassemble and swap the upper back plate and leg plate via quick-release snap fasteners. This exclusive feature enables customized tabletop layouts for special surgical postures that standard operating tables cannot achieve, greatly expanding the range of applicable surgical positions.

Q: Can this operating table support overweight or bariatric patients?
A: Yes, the TDY-Y-2 Special Version has an industry-leading 350kg safe working load with thickened hydraulic cylinders and a high-strength frame. It stably supports overweight patients plus full sets of body fixing accessories simultaneously without frame shaking or component deformation.

Q: Is this table compatible with C-arm imaging for intraoperative fluoroscopy?
A: Yes, the table features >=310mm longitudinal horizontal sliding with a dedicated INTERCHANGE indicator light on the optional column panel. This provides large movement space for C-arm fluoroscopy, enabling real-time intraoperative radiography without repositioning the patient.

Q: What happens during a power outage?
A: The built-in lead-acid battery pack automatically supplies power to maintain all table adjustment functions without interrupting surgery. The system includes yellow low-battery alarms, green charging indicators, and complete fuse protection (2x F5AL AC + 1x F20AL DC).
