Product Overview

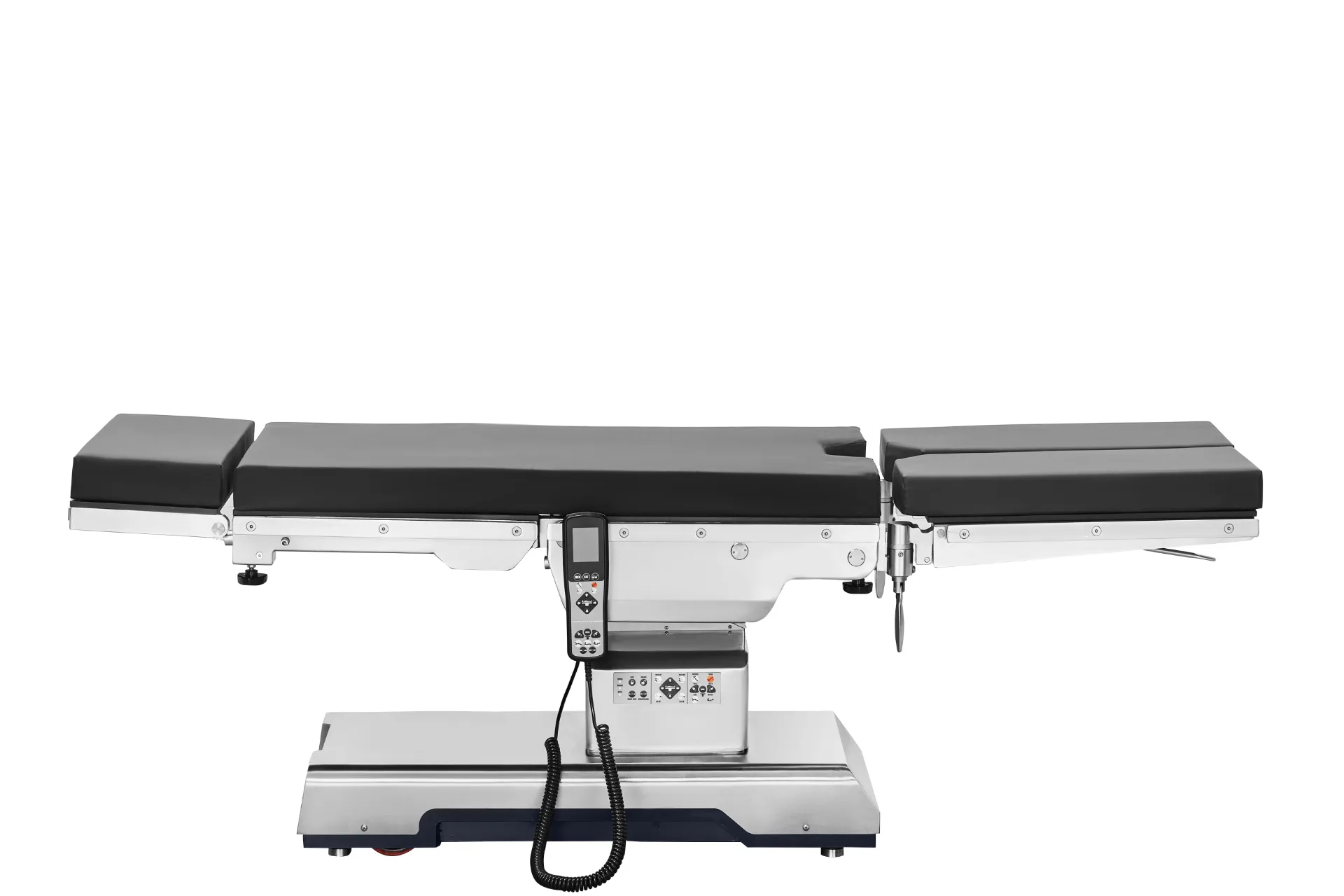

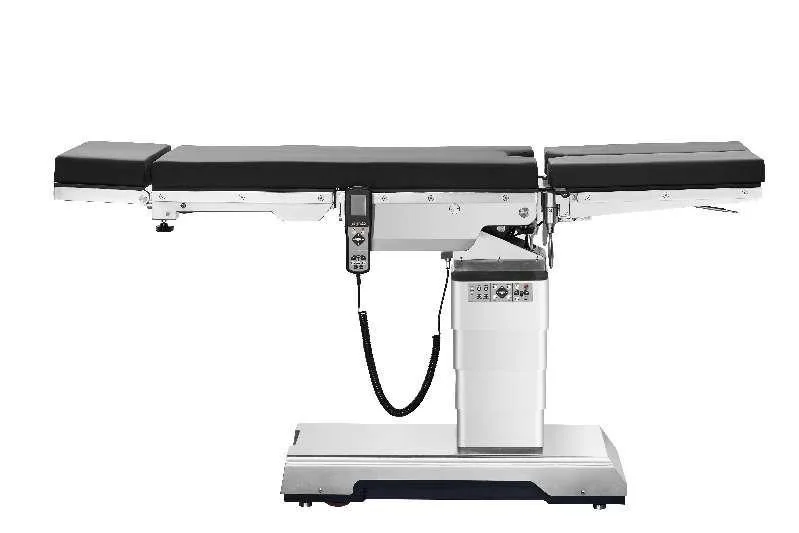

The TDY-Y-2 Electro-Hydraulic Multifunctional Operating Table is a Class I Type B medical device with IPX4 splash-proof protection, professionally engineered for the full spectrum of complex surgical disciplines. Featuring a mature electro-hydraulic drive system with dual control options (wired handheld remote + optional column-mounted panel), it delivers precise positioning for neurosurgery, thoracic and abdominal surgery, orthopedics, urology, anorectal surgery, plastic surgery, hepatobiliary surgery, and general surgery. With a 10-year service life, ultra-wide angle adjustment range, and 350kg maximum load capacity, it is the mainstream high-end surgical platform for large comprehensive hospitals and specialized surgical centers.
Key Features & Advantages
Premium Corrosion-Resistant Construction: 304 stainless steel tabletop frame with phenolic laminate, QT450-10 casting lifting column with 304 stainless steel cover, and thick Q235 steel base — all designed for long-term heavy clinical use and frequent disinfection.
Ultra-Wide Adjustment Range: Trendelenburg/reverse-Trendelenburg >=30 degrees, lateral tilt >=20 degrees, back plate upward >=90 degrees, head plate fully detachable, split leg plates with independent adjustment, kidney bridge lift >=100mm, and horizontal sliding >=350mm for C-arm fluoroscopy.
Dual Control System: Standard 5-meter wired handheld remote with one-click presets (zero level, chair, flex, reflex) plus optional column-mounted control panel for bedside operation. Custom position memory storage for repeated routine operations.
Dual Load Capacity: 135kg standard safe working load and 350kg maximum allowable load, supporting overweight patients and heavy accessory configurations simultaneously.
Built-In Backup DC Power: Two 12V DJW12-7.0 lead-acid batteries form a 24V backup system for uninterrupted operation during power outages. Complete fuse protection (2x F5AL AC + 1x F20AL DC) and IPX4 splash-proof design.
Clinical Applications
The TDY-Y-2 multifunctional operating table supports complex surgical disciplines including:
- Neurosurgery: Craniotomy and spinal procedures with detachable head plate and Trendelenburg positioning
- Thoracic Surgery: Lung and mediastinal procedures with lateral tilt and flex positioning
- Abdominal & Hepatobiliary Surgery: Liver, gallbladder, and intestinal procedures with kidney bridge elevation
- Orthopedics: Joint replacement, spine surgery, and fracture fixation with C-arm compatible sliding
- Urology & Anorectal Surgery: Kidney, bladder, and rectal procedures with split leg plates and lateral tilt
- Plastic Surgery: Reconstructive and aesthetic procedures requiring multi-angle positioning
- Gynecological Surgery: Hysterectomy and laparoscopic procedures with Trendelenburg positioning
- Emergency Trauma Surgery: Rapid multi-position setup for polytrauma patients
Comparison: TDY-Y-2 vs Standard Operating Tables
FeatureTDY-Y-2 MultifunctionalTDY-Y-2 Special VersionTDY-2 Electric Mechanical Drive SystemElectro-hydraulicUpgraded electro-hydraulicElectric linear actuator Max Safe Load350 kg350 kg250 kg Tabletop Length>=2000 mm>=2100 mm>=2100 mm Lifting Stroke>=350 mm>=480 mm>=300 mm Trendelenburg>=30 deg>=35 deg>=25 deg Lateral Tilt>=20 deg>=25 deg>=15 deg Interchangeable PlatesNoYes (back & leg swap)No Best ForLarge hospitals, multi-disciplineComplex/special surgery, obese patientsMid-size hospitals, general surgeryTechnical Specifications
- Model: TDY-Y-2 Electro-Hydraulic Multifunctional Operating Table
- Total tabletop length: >=2000 mm
- Tabletop width: 550+/-20 mm (rails excluded)
- Minimum tabletop height: 595+/-50 mm
- Total lifting stroke: >=350 mm
- Standard safe working load: 135 kg
- Maximum allowable working load: 350 kg
- Trendelenburg / reverse-Trendelenburg: >=30 degrees
- Max lateral tilt: >=20 degrees
- Back plate: upward >=90 deg, downward >=40 deg
- Head plate: upward >=60 deg, downward >=90 deg, fully detachable
- Leg plates: upward >=30 deg, downward >=90 deg, outward >=90 deg
- Kidney bridge lift: >=100 mm
- Horizontal sliding: >=350 mm
- X-ray perspective area: >=1400x430 mm
- Power supply: AC 220V+/-10%, 50Hz+/-1Hz; compatible with 110V
- Input power: 500VA
- DC backup: Two 12V batteries (total 24V)
- Gross weight: 370 kg | Net weight: 320 kg
- Packing dimension: 1400x730x1030 mm
- IP rating: IPX4 splash-proof
- Service life: 10 years
Frequently Asked Questions (FAQ)
Q: What makes the TDY-Y-2 suitable for neurosurgery and complex orthopedic procedures?
A: The TDY-Y-2 offers Trendelenburg tilt >=30 degrees, lateral tilt >=20 degrees, a fully detachable head plate for maximum surgical field exposure, and >=350mm horizontal sliding for C-arm fluoroscopy. Its 350kg maximum load capacity supports heavy patients and extensive accessory configurations simultaneously.
Q: Does the TDY-Y-2 have backup power for power outages?
A: Yes, the table is equipped with two 12V DJW12-7.0 lead-acid batteries forming a 24V backup DC power supply. It maintains all table adjustment functions during sudden AC power outages, with yellow low-battery alarm and green charging indicators.
Q: What is the difference between the standard safe load (135kg) and maximum load (350kg)?
A: The 135kg standard safe working load is the recommended load for routine positioning. The 350kg maximum allowable load is the absolute structural limit. When installing supporting accessories, the total weight of patient plus fixtures should not exceed 300kg to maintain stable hydraulic operation.
Q: Can the TDY-Y-2 be used with C-arm imaging systems?
A: Yes, the table features >=350mm longitudinal horizontal sliding and an X-ray perspective coverage area of >=1400x430mm, supporting full-body intraoperative radiography examination without repositioning the patient.
