Product Overview

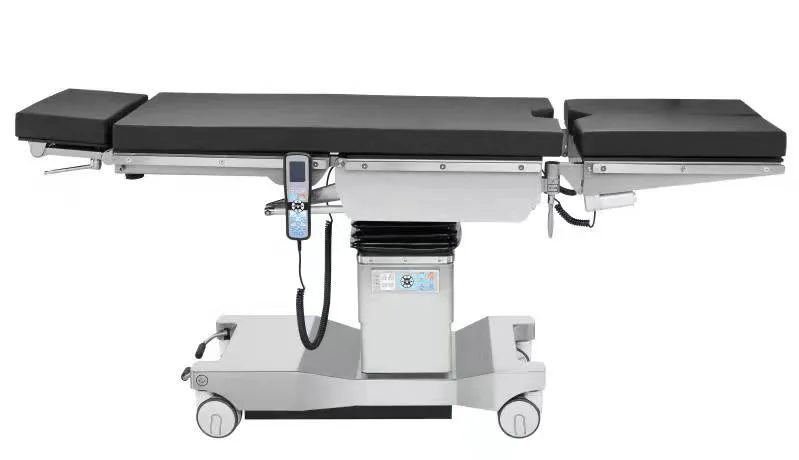

The TDY-2 Electric Mechanical Operating Table is a Class I Type B medical device with IPX4 splash-proof rating, engineered for stable patient support across all surgical departments. It adopts an advanced electric linear actuator drive system controlled by an intelligent LCD screen wired hand remote, with manual adjustment reserved for head plate, leg plates, and kidney bridge. Compliant with full electromagnetic compatibility testing standards, this table resists interference from high-frequency surgical equipment and mobile RF devices, delivering consistent operation in demanding clinical environments.
Key Features & Advantages

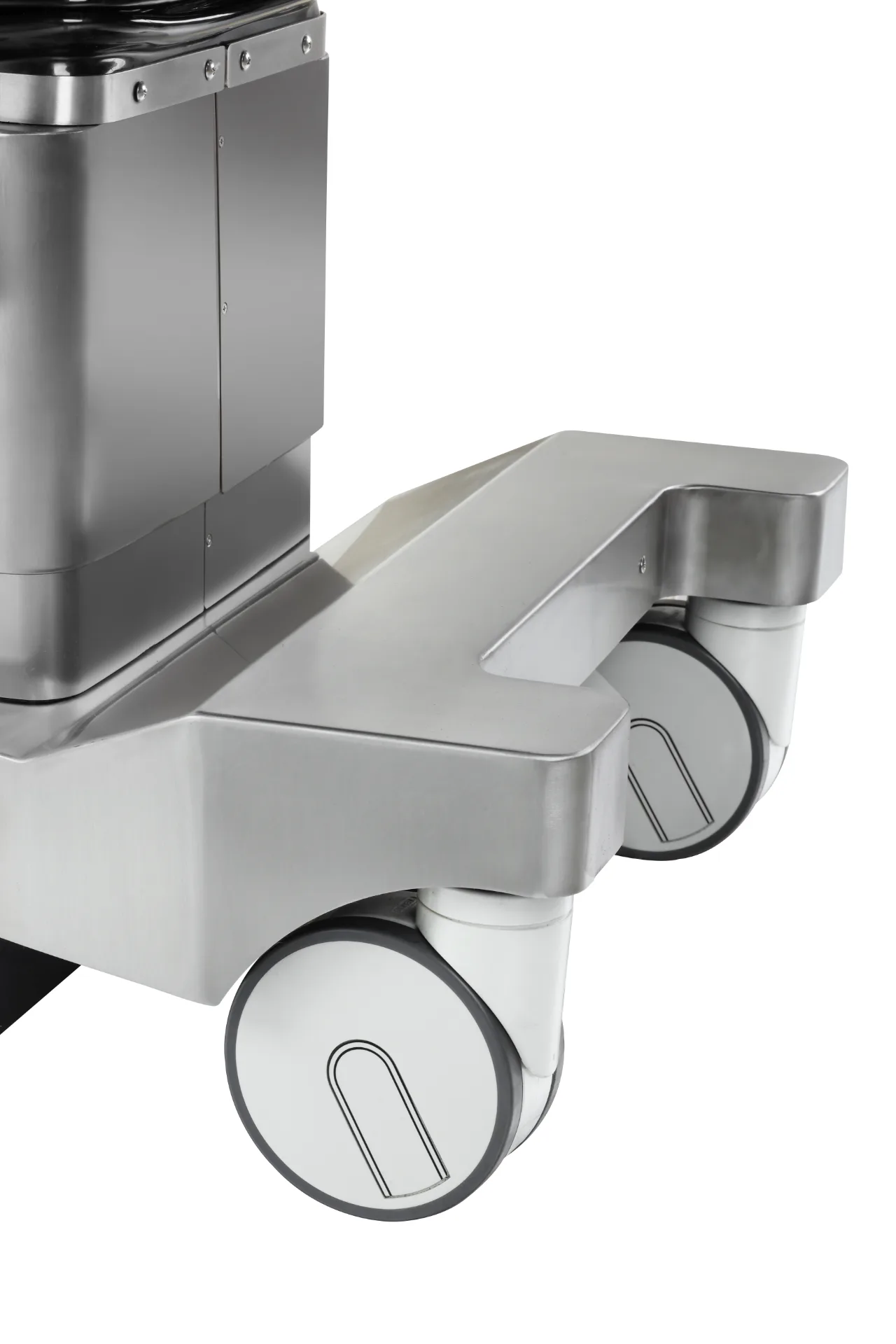

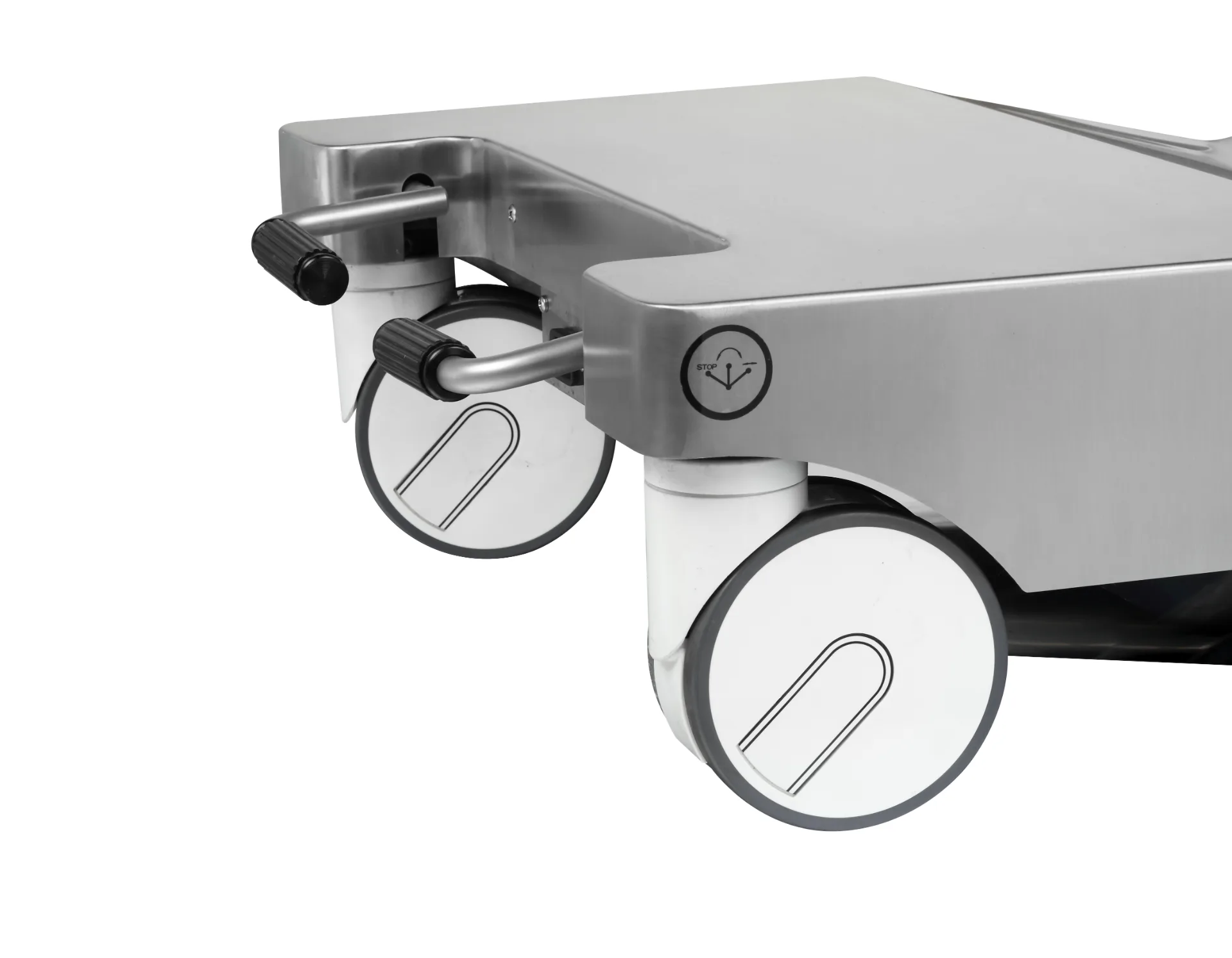

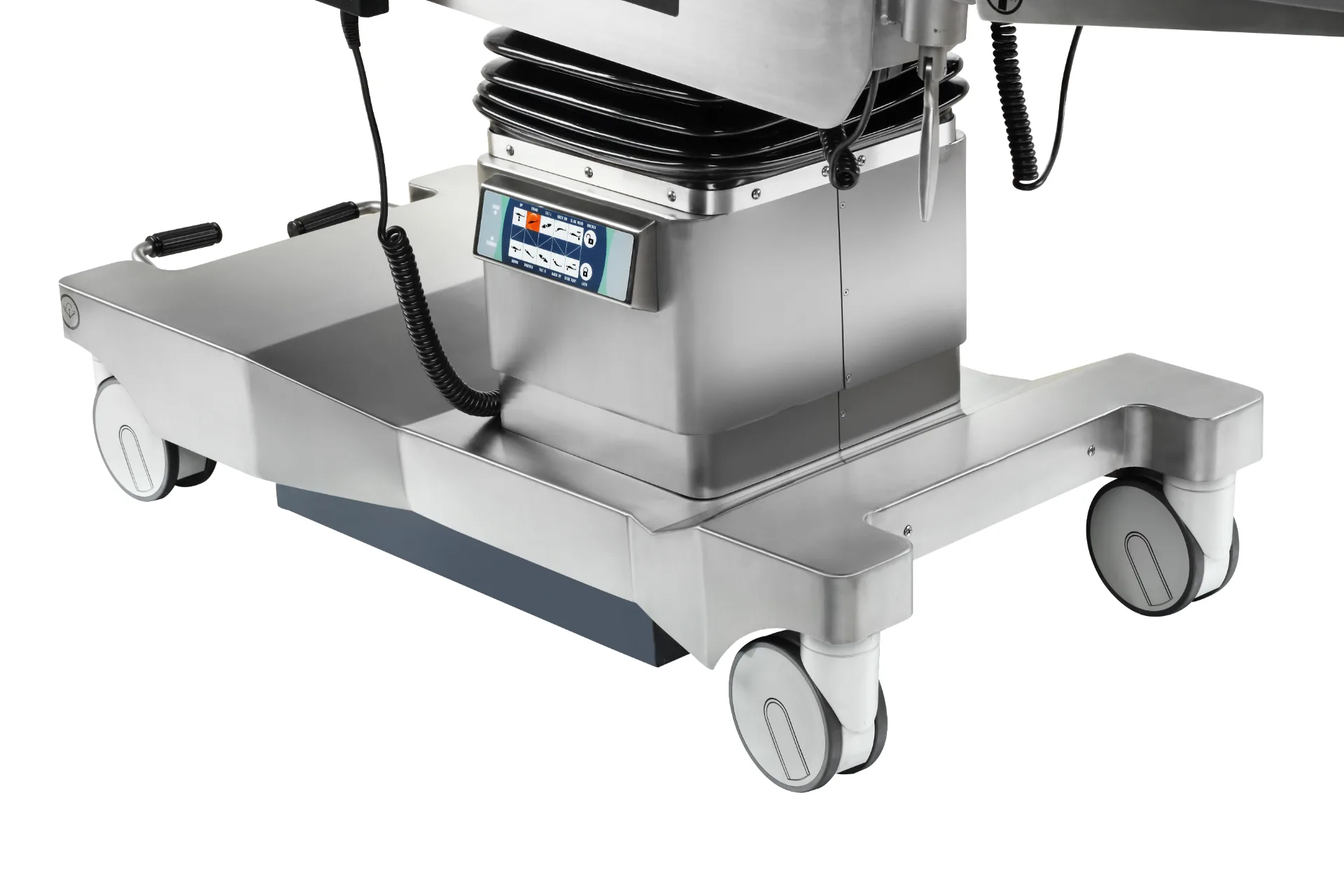

Premium 304 Stainless Steel Construction: Tabletop frame uses 304 stainless steel with phenolic laminate; lifting column and base use Q235 rectangular tube with 304 stainless steel covers for corrosion resistance and long-term durability.
250kg Safe Working Load: Far exceeds conventional operating tables, ensuring stable support for heavy patients and complex positioning setups.

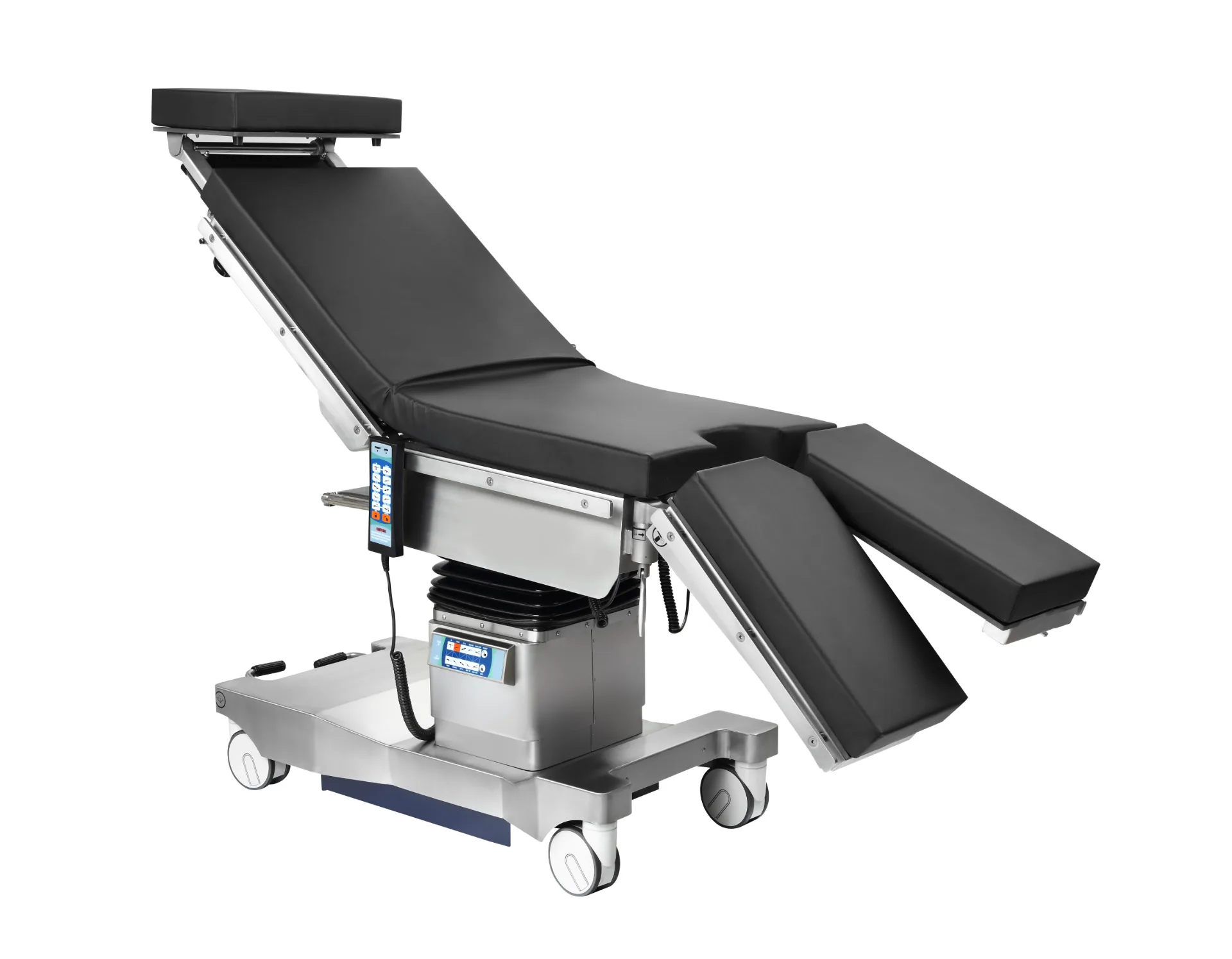

Intelligent LCD Handheld Remote: Dual-language (English/Chinese) LCD display with one-click posture shortcuts (Zero Level, Chair, Reflex, Flex), custom position memory, real-time battery status, fault diagnosis, and lock/unlock function.
Ultra-Wide Adjustment Range: Trendelenburg and reverse-Trendelenburg tilt >=25 degrees, lateral tilt >=15 degrees, back plate upward >=80 degrees, split electric leg plates with independent left/right adjustment, kidney bridge lift >=110mm, and horizontal sliding >=350mm.
Built-In Backup Power: Two internal 12V 3.3AH lead-acid batteries provide emergency power with audio low-battery alerts. IPX4 splash-proof column structure prevents liquid infiltration during disinfection.
Clinical Applications
The TDY-2 electric mechanical operating table is ideal for:
- General Surgery: Abdominal, gastrointestinal, and hernia repair procedures
- Orthopedic Surgery: Fracture fixation, joint replacement, and spine surgery with split electric leg plates
- Obstetrics & Gynecology: Cesarean section and gynecological procedures with kidney bridge elevation
- Urology: Kidney and bladder surgeries requiring lateral tilt positioning
- ENT Surgery: Head and neck procedures with detachable head plate
- Plastic Surgery: Aesthetic and reconstructive procedures requiring precise multi-angle positioning
Comparison: Electric Mechanical vs Electro-Hydraulic Operating Tables
FeatureTDY-2 Electric MechanicalTDY-Y-2 Electro-Hydraulic Drive SystemElectric linear actuatorElectro-hydraulic Safe Load250 kg135 kg standard / 350 kg max Control DisplayLCD screen remotePhysical key remote + optional panel Position MemoryYes (custom save/recall)Yes (SET/MENU buttons) Fault DiagnosisBuilt-in error codesBuilt-in detection module Lateral Tilt>=15 deg>=20 deg Backup Battery2x 12V 3.3AH lead-acid2x 12V DJW12-7.0 lead-acid Best ForMid-to-large hospitals, multi-discipline ORLarge comprehensive hospitals, complex surgeryTechnical Specifications
- Model: TDY-2 Electric Mechanical Operating Table
- Total tabletop length: >=2100 mm (rails excluded)
- Tabletop width: 550+/-20 mm (rails excluded)
- Minimum tabletop height: 700+/-50 mm
- Lifting stroke: >=300 mm
- Safe total working load: 250 kg
- Trendelenburg / reverse-Trendelenburg: >=25 degrees
- Max lateral tilt: >=15 degrees
- Back plate: upward >=80 deg, downward >=20 deg

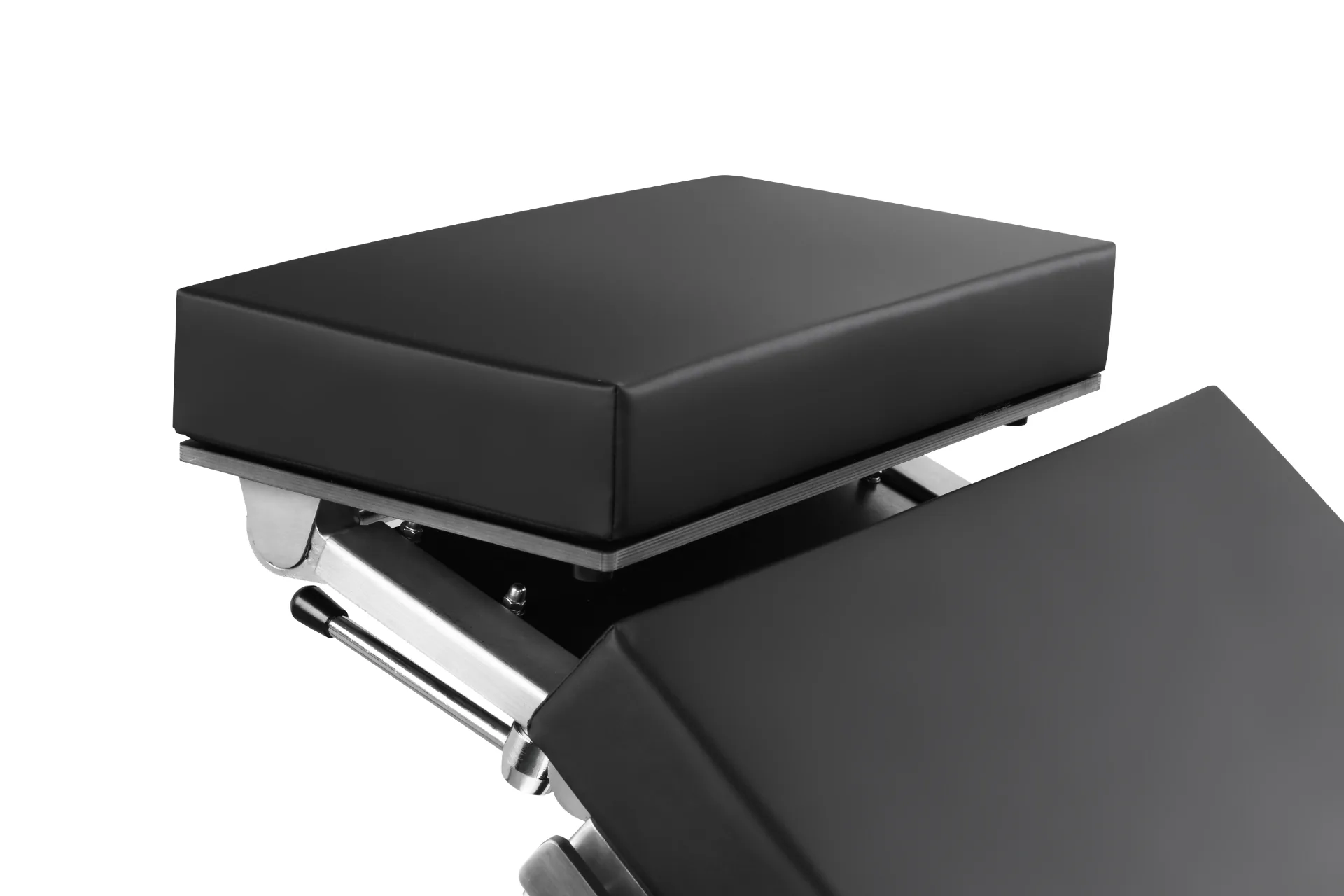

- Head plate: downward fold >=90 deg, bending >=40 deg
- Leg plates: upward 15 deg, downward >=90 deg, outward >=90 deg
- Kidney bridge lift: >=110 mm
- Horizontal sliding: >=350 mm
- Power supply: 110V+/-10% / 220V+/-10%, 50Hz+/-2%, input power 250VA
- Gross weight: 290 kg | Net weight: 240 kg
- Packing dimension: 1360x860x880 mm
- IP rating: IPX4 splash-proof
- Service life: 10 years
Frequently Asked Questions (FAQ)
Q: What is the difference between the TDY-2 electric mechanical and TDY-1 electric hydraulic operating table?
A: The TDY-2 uses an electric linear actuator drive with an intelligent LCD remote featuring position memory, one-click posture shortcuts, and fault diagnosis. It offers a higher 250kg safe load, wider adjustment angles (Trendelenburg >=25 deg vs 7 deg), and IPX4 splash-proof rating, making it suitable for more demanding multi-discipline operating rooms.
Q: Does the TDY-2 have backup power in case of electrical outage?
A: Yes, the TDY-2 is equipped with two internal 12V 3.3AH lead-acid batteries as built-in backup power. The system provides audio low-battery alerts to remind users to recharge and avoid deep discharge damage.
Q: Can the TDY-2 operating table support overweight patients?
A: Yes, the TDY-2 has a total safe working load of 250 kg, far exceeding conventional operating tables, ensuring stable support for heavy patients and complex multi-point positioning accessory setups.
Q: What cleaning and disinfection methods are compatible with the TDY-2?
A: Compatible cleaning agents include soapy weak alkaline water, ethyl alcohol, quaternary ammonium compounds, and guardian compounds. Chlorine-containing corrosive disinfectants should be avoided. All cushions are fully detachable for separate cleaning.
