Product Overview
The TDY-1 Electric Operating Table is a Class I Type B continuous medical device designed for versatile surgical positioning across multiple clinical disciplines. Powered by an electric hydraulic system with a wired handheld remote controller, it delivers smooth lifting, tilting, and positioning with exceptional stability. All core hydraulic and electrical components are imported for extended service life and consistent safety performance, making it a reliable surgical platform for community clinics, specialized hospitals, and large comprehensive medical centers.
Key Features & Advantages

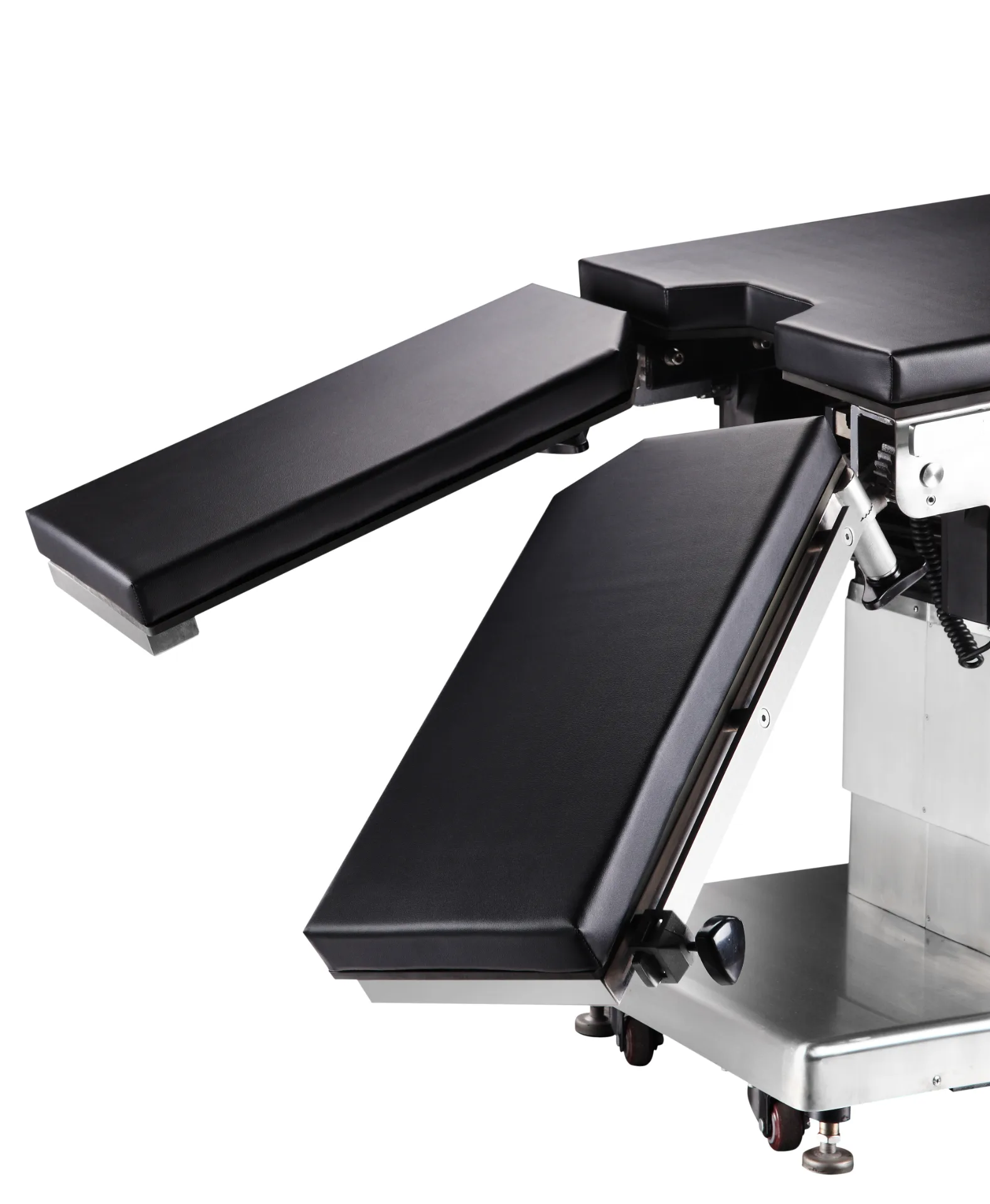

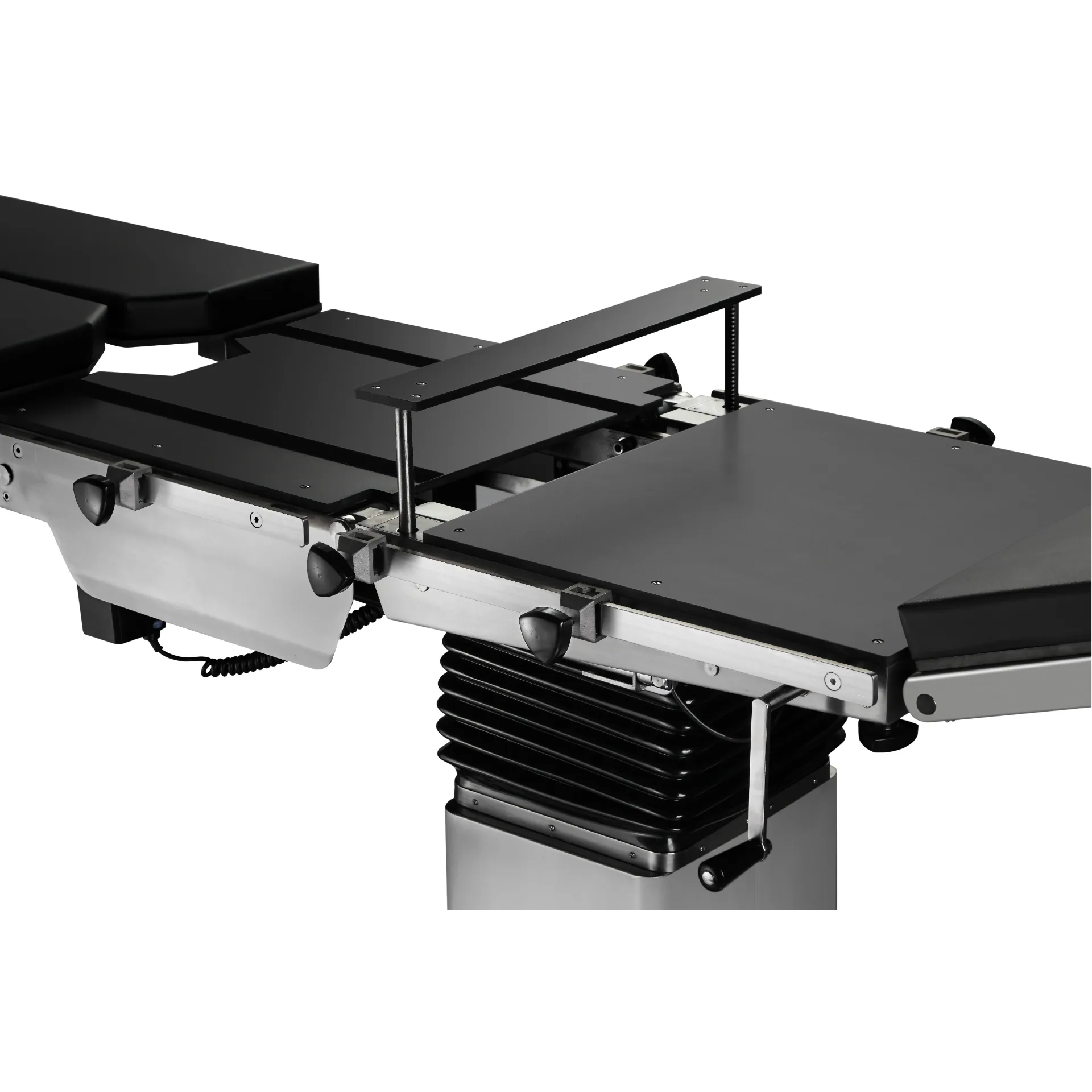

Detachable Segmented Tabletop: Independent headrest, backrest, kidney bridge, hip plate, and double leg plates allow precise positioning for complex surgeries. All cushions are fully detachable for thorough cleaning and disinfection.

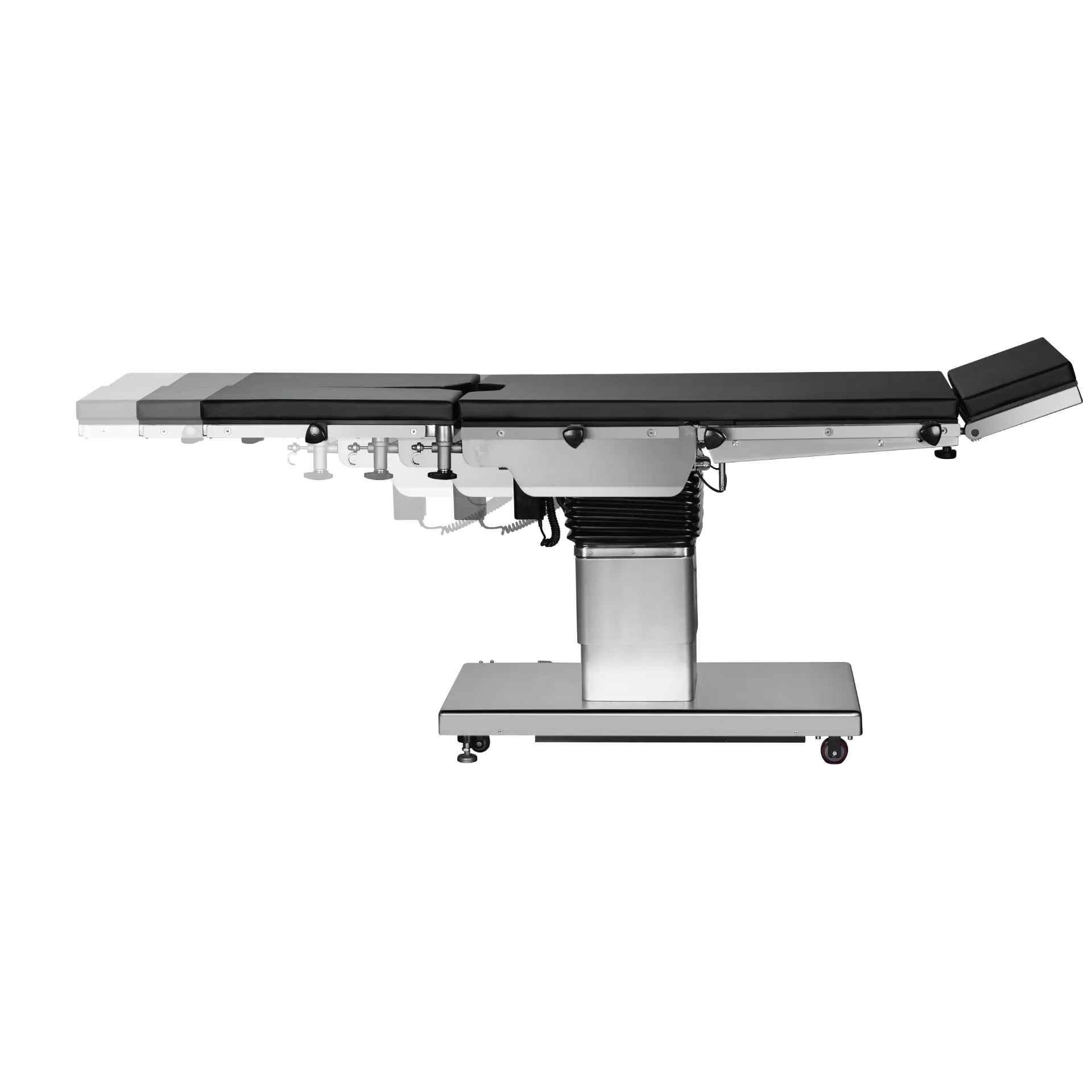

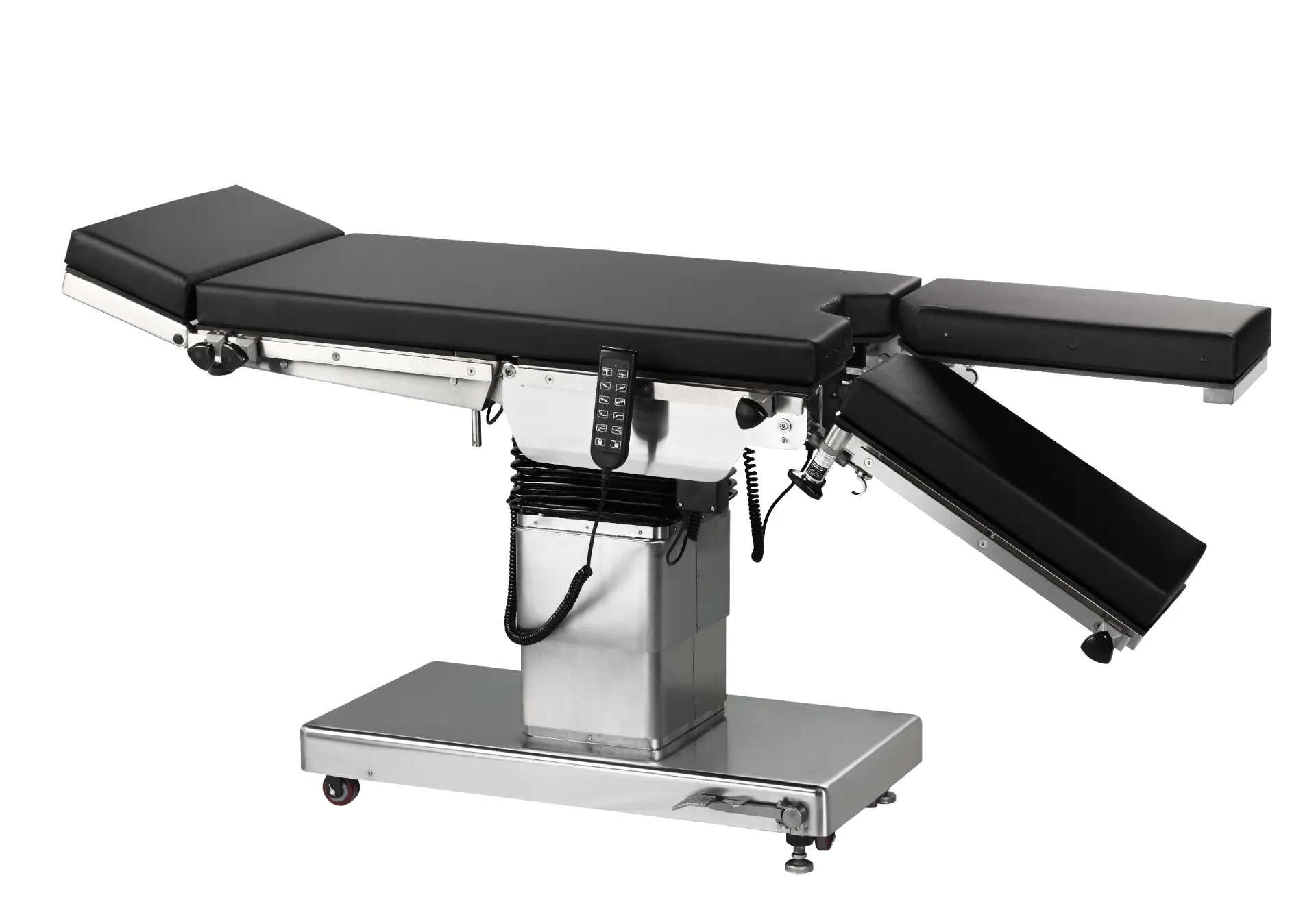

Full Electric Multi-Angle Adjustment: Wired handheld remote controls table height (680+/-50mm), backrest tilt, lateral tilt, Trendelenburg/reverse-Trendelenburg, and head-end longitudinal sliding. Built-in safety interlock logic prevents conflicting operations.
173kg Safe Working Load: Reinforced load-bearing frame with segmented plate limits (backrest 50kg, hip plate 98kg, leg plate 25kg) ensures stable support under all surgical postures.
Universal Side Rails & Complete Accessories: Standard accessory rails on both sides support quick installation of surgical positioning accessories. Complete kit includes anesthesia screen, shoulder/body/arm supports, leg wrappers, and more.
Wide Power Compatibility: Supports 220V+/-10%/50Hz and 110V/60Hz for both domestic and overseas markets. Storage range: -30C to 55C for over 15 weeks.
Clinical Applications
The TDY-1 electric operating table is widely used in:
- General Surgery: Abdominal procedures requiring Trendelenburg and reverse-Trendelenburg positioning
- Orthopedics: Fracture reduction and limb surgery with detachable leg plates
- Obstetrics & Gynecology: Pelvic and perineal procedures with kidney bridge elevation
- Urology: Kidney and bladder surgeries requiring lateral tilt
- ENT: Head and neck procedures with adjustable headrest
- Emergency Surgery: Rapid positioning for trauma and emergency operations
Comparison: TDY-1 vs Higher-Grade Operating Tables
FeatureTDY-1 ElectricTDY-2 Electric MechanicalTDY-Y-2 Electro-Hydraulic Drive SystemElectric hydraulicElectric linear actuatorElectro-hydraulic Safe Load173 kg250 kg135 kg (max 350 kg) Tabletop Length>=1960 mm>=2100 mm>=2000 mm Lateral Tilt7 deg>=15 deg>=20 deg Trendelenburg7 deg>=25 deg>=30 deg ControlWired remoteLCD remote + memoryDual control (remote + panel) Best ForCommunity clinics, minor surgeryGeneral hospitals, multi-disciplineLarge comprehensive hospitalsTechnical Specifications
- Model: TDY-1 Electric Operating Table
- Total tabletop length: >=1960 mm
- Tabletop width: 550+/-20 mm
- Tabletop height: 680+/-50 mm
- Lifting stroke: >=300 mm
- Safe total working load: 173 kg
- Max lateral tilt: 7 degrees
- Max Trendelenburg / reverse-Trendelenburg: 7 degrees
- Power supply: ~220V+/-10%, 50Hz+/-2%; compatible with 110V/60Hz
- Required power capacity: >=1 kW
- Gross weight: 290 kg | Net weight: 247 kg
- Packing dimension: 1400x750x960 mm
- Core components: Imported hydraulic and electrical parts
- Control method: Wired handheld remote controller
Frequently Asked Questions (FAQ)
Q: What surgical disciplines is the TDY-1 electric operating table suitable for?
A: The TDY-1 covers thoracic surgery, general surgery, ENT, gynecology and obstetrics, urology, and orthopedics. It is ideal for community clinics, specialized hospitals, and comprehensive medical centers.
Q: How is the TDY-1 different from manual operating tables?
A: The TDY-1 uses electric hydraulic drive with a wired handheld remote for all lifting and tilting functions, eliminating manual cranking. It also features safety interlock logic to prevent conflicting operations during positioning.
Q: Can the TDY-1 operate on 110V power supply for overseas markets?
A: Yes, the TDY-1 supports both 220V+/-10%/50Hz and 110V/60Hz power environments, making it suitable for international deployment.
Q: What is the safe load capacity of the TDY-1 operating table?
A: The overall safe working load is 173 kg. Each segmented plate has individual limits: backrest 50 kg, hip plate 98 kg, and leg plate 25 kg, ensuring stable support under all surgical postures.
