Product Overview
The FD-G-2 Obstetric & Gynecological Electro-Hydraulic Operating Table is a Class I Type B, IPX4 splash-proof medical device engineered specifically for obstetric delivery, gynecological minimally invasive surgery, and routine gynecological examinations. Developed with clinical feedback from maternity wards and gynecology departments globally, it features premium imported hydraulic and electrical components for ultra-low noise operation, stable multi-angle positioning, and intuitive dual control (wired hand controller + foot pedals). With a full set of dedicated gynecological accessories and fully detachable segmented tabletop, this surgical table is the ideal multi-functional platform for maternity hospitals, general hospital OB/GYN departments, women's specialist clinics, and outpatient minor operation rooms.
Key Features & Advantages

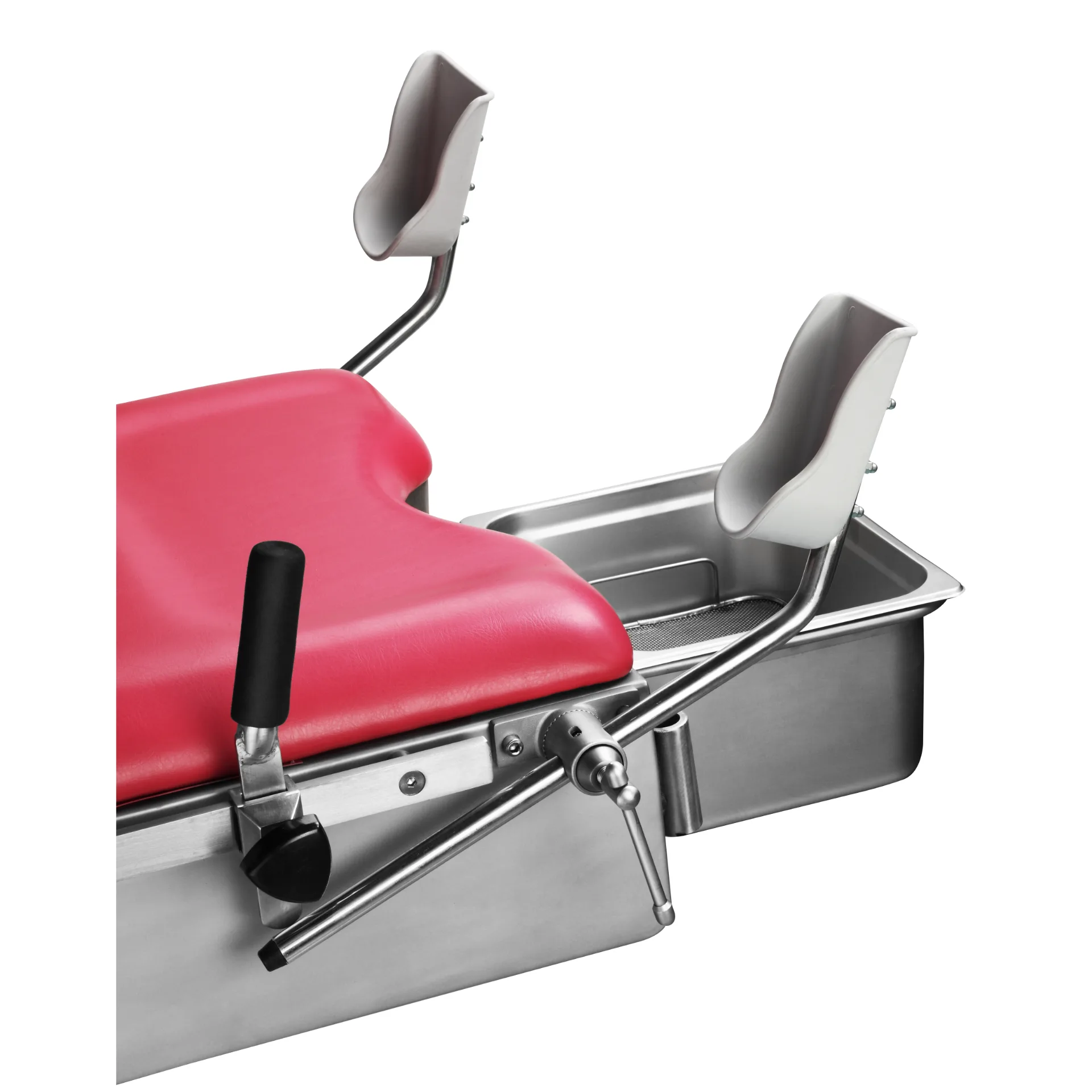

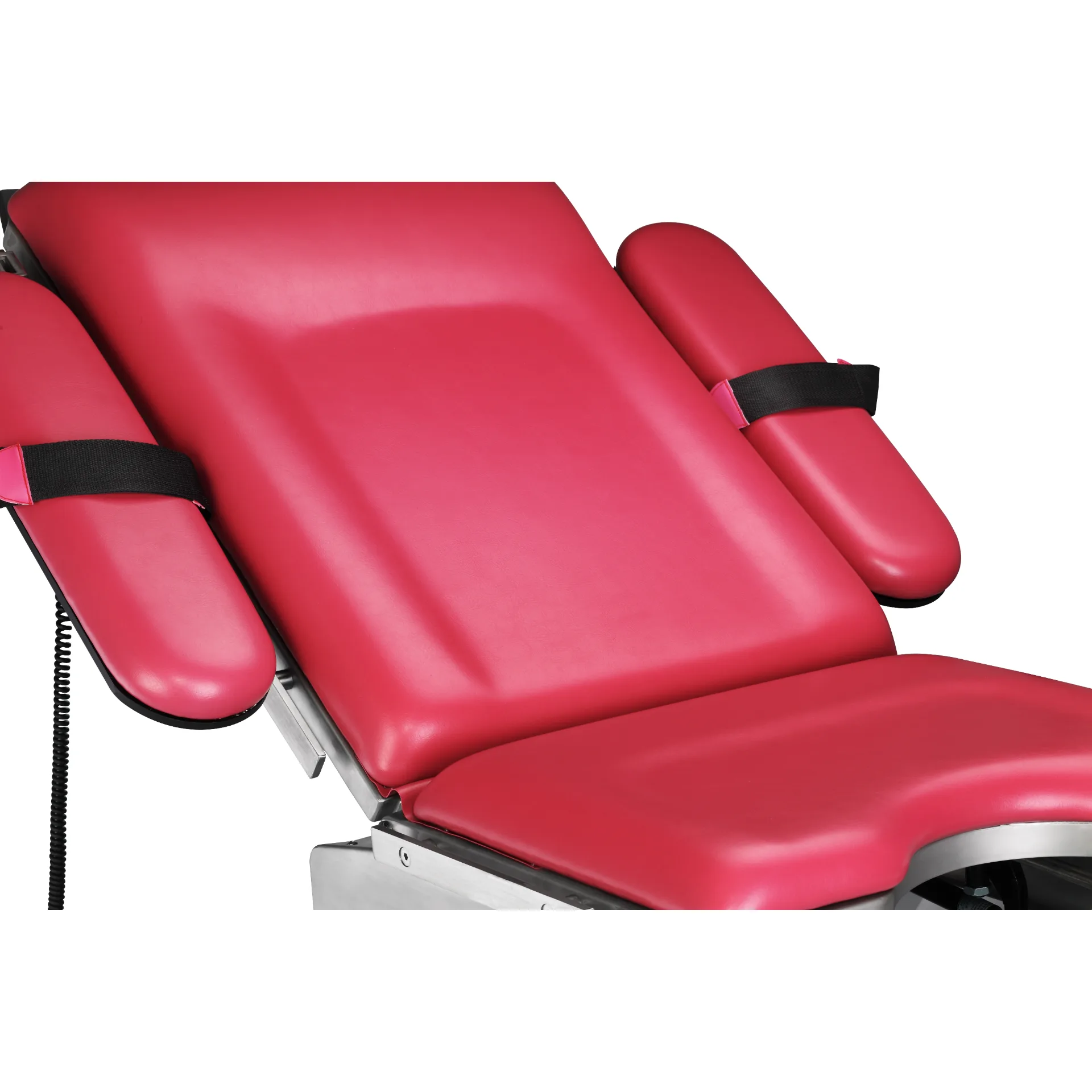

Specialized OB/GYN Design: Modular segmented tabletop (head plate, back plate, waist plate, buttock plate, detachable leg trays) tailored for obstetric delivery and gynecological procedures. Bilateral universal guide rails enable rapid accessory installation without extra tools.
Wide Vertical Lifting Range: Tabletop height adjustable from 680mm to 880mm with over 200mm lifting stroke, allowing surgeons and midwives to freely switch between sitting and standing postures during long procedures.
Dual Control System: Wired hand controller with one-touch function keys (lift, lower, back plate raise/lower, Trendelenburg/reverse-Trendelenburg, brake lock/unlock) plus integrated base control panel with power management and fuse protection.
Imported Low-Noise Hydraulic Drive: All key hydraulic pumps and electrical parts are imported, delivering smooth, jitter-free movements critical for delicate gynecological minimally invasive operations. No sudden shaking during surgical manipulation.
IPX4 Splash-Proof & Anti-Static: Sealed lifting column blocks blood, amniotic fluid, irrigation liquid, and disinfectant from penetrating internal components. Standard anti-static cushions eliminate interference with high-frequency electrocautery equipment.
Clinical Applications
The FD-G-2 is exclusively developed for obstetric and gynecological clinical use:
- Cesarean Section (C-Section): Stable Trendelenburg positioning with kidney bridge support for optimal surgical access
- Hysteroscopic Surgery: Precise positioning with low-noise hydraulic operation for delicate uterine procedures
- Laparoscopic Gynecological Surgery: Trendelenburg tilt with detachable leg trays for minimally invasive pelvic surgery
- Vaginal Reconstruction & Plastic Surgery: Leg plate spreading and adjustable positioning for perineal procedures
- Gynecological Tumor Resection: Multi-angle positioning with full accessory support for oncological procedures
- Routine Pelvic Examination: Quick setup with leg supports and adjustable positioning for outpatient examinations
- Postpartum Wound Treatment: Stable low-height positioning for perineal care and repair
Comparison: FD-G-2 vs General-Purpose Operating Tables
FeatureFD-G-2 OB/GYN TableTDY-1 General Table SpecializationObstetrics & Gynecology exclusiveGeneral purpose multi-discipline Tabletop Length>=1780 mm>=1960 mm Height Range680-880 mm680+/-50 mm Safe Load173 kg173 kg Trendelenburg>=8 deg7 deg Reverse-Trendelenburg>=20 deg7 deg Leg PlatesDetachable leg traysDouble leg plates ControlHand controller + foot pedalsWired handheld remote Best ForMaternity hospitals, OB/GYN departmentsCommunity clinics, general surgeryTechnical Specifications
- Model: FD-G-2 Obstetric & Gynecological Electro-Hydraulic Operating Table
- Total tabletop length: >=1780 mm
- Tabletop width: 600 mm
- Adjustable tabletop height: 680 ~ 880 mm
- Total vertical lifting stroke: >=200 mm
- Safe total working load: 173 kg
- Back plate load limit: 50 kg | Buttocks plate: 98 kg | Leg plate: 25 kg
- Trendelenburg (head-down): >=8 degrees
- Reverse-Trendelenburg (foot-down): >=20 degrees
- Back plate upward tilt: >=45 degrees
- Back plate downward tilt: >=7 degrees
- Rated input power: 650 VA
- Power supply: AC 110V+/-10%, 60Hz+/-2%
- Required power capacity: >=1 kW
- Gross weight: 250 kg | Net weight: 200 kg
- Packing dimension: 1340x860x890 mm
- IP rating: IPX4 splash-proof
- Core components: Imported hydraulic and electrical parts
Frequently Asked Questions (FAQ)
Q: What procedures is the FD-G-2 operating table specifically designed for?
A: The FD-G-2 is exclusively engineered for obstetric and gynecological use, including cesarean section, hysteroscopy, laparoscopy, vaginal reconstruction, gynecological tumor resection, routine pelvic examination, and postpartum wound treatment. Its specialized design includes detachable leg trays, kidney bridge, and dedicated gynecological accessories.
Q: How does the dual control system work?

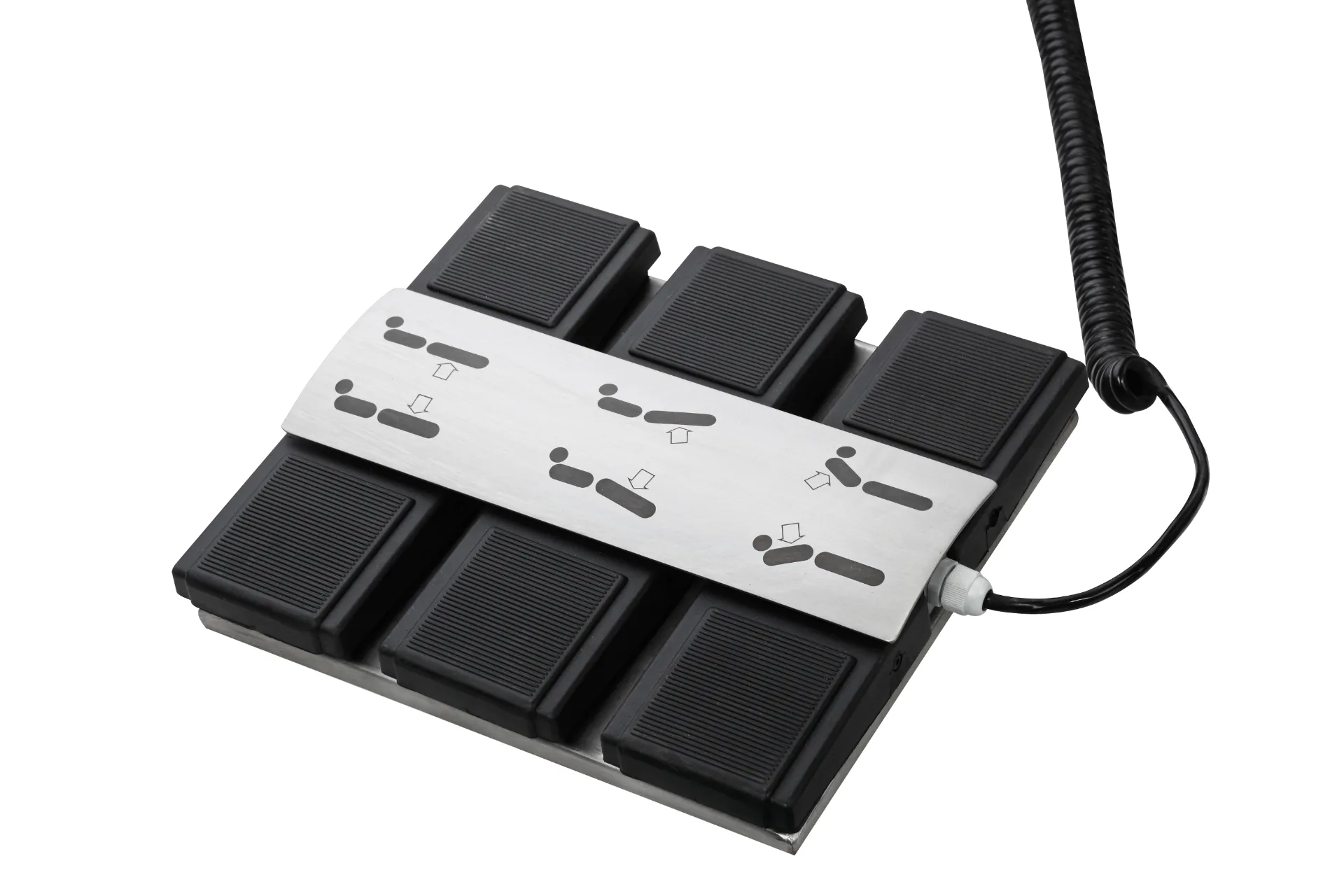

A: The FD-G-2 provides two control modes: a lightweight wired hand controller with one-touch function keys for all electric adjustments (lift, lower, back plate, Trendelenburg, brake), and an integrated base control panel with power switch, fuse protection, and hand controller signal jack. Foot pedals and foot switches provide additional hands-free operation.
Q: Is the FD-G-2 suitable for use in delivery rooms?
A: Yes, the FD-G-2 meets strict sterile standards of modern delivery rooms with IPX4 splash-proof protection against blood, amniotic fluid, and irrigation liquid. The anti-static cushions, fully detachable for individual cleaning, comply with high-level sterile requirements for obstetric environments.
Q: What power supply does the FD-G-2 require?
A: The FD-G-2 operates on AC 110V+/-10% at 60Hz+/-2Hz with rated input power of 650VA. This makes it compatible with overseas power standards, particularly suitable for international maternity hospitals and clinics.
