August 27, 2026
Pakistani Military Hospital Standardizes Surgical Lighting and Positioning with LEDD700/500 Ceiling Operating Light, LEDL500S Mobile Surgical Light, and TDY-1 Electric Operating Table
A military hospital in Pakistan has successfully completed the installation of multiple LEDD700/500 double-head ceiling-mounted LED surgical operating lights, LEDL500S mobile stand LED surgical lights, and TDY-1 electric operating tables, replacing aging halogen fixtures and outdated manual tables to standardize advanced LED cold-light illumination and electric surgical positioning across its operating theaters. The deployment delivers deep-cavity shadowless illumination, true-color tissue rendering, ultra-low heat emission, and precise electrically controlled patient positioning to support the hospital's general surgery, abdominal, orthopedic, gynecology, urology, and emergency trauma teams.
Project Background: Modernizing Military Hospital Surgical Lighting and Positioning
The Pakistani military hospital, which serves active-duty personnel, their families, and surrounding civilian communities, embarked on a surgical suite modernization program in 2015 to retire high-heat halogen operating lights and manually cranked operating tables that had been in service for nearly two decades. Procurement priorities included LED surgical light technology with cold-light emission, deep-cavity illumination for complex procedures, ultra-long service life to reduce maintenance in remote deployments, mobile surgical lights that could be rapidly repositioned between operating rooms and examination bays, and electric operating tables that allow fast, precise, fatigue-free patient positioning.
After evaluating several international suppliers, the hospital procurement committee selected RedSunMediZone LED surgical lighting and electric operating table systems based on the demonstrated performance of the LEDD700/500 ceiling operating light, the LEDL500S mobile surgical light, and the TDY-1 electric operating table in comparable tropical-climate hospital environments.
Installation Highlights and Clinician Benefits

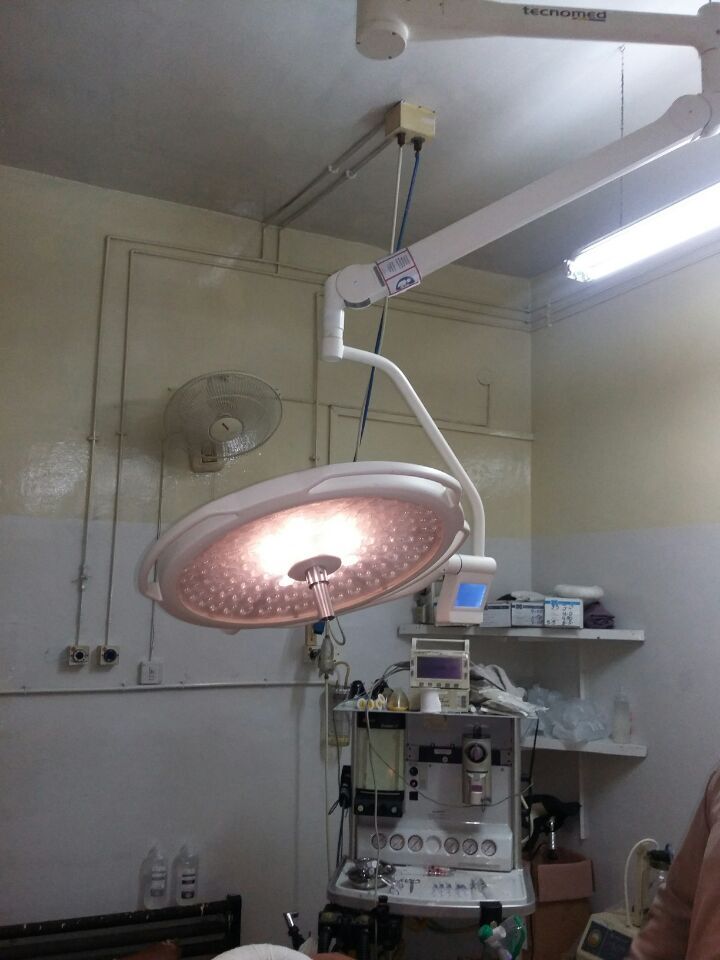

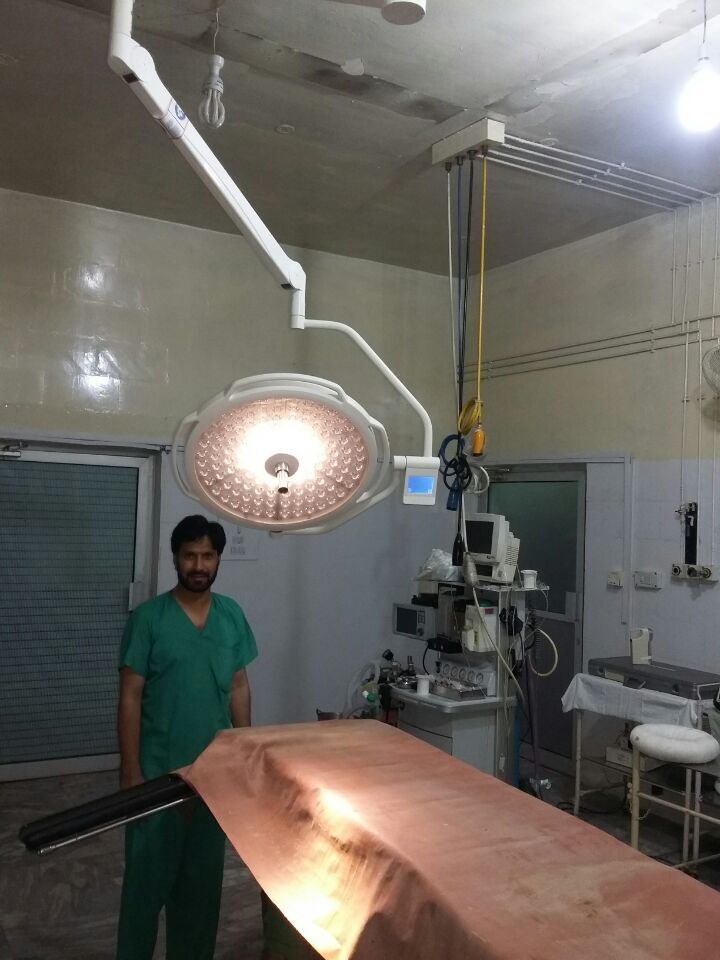

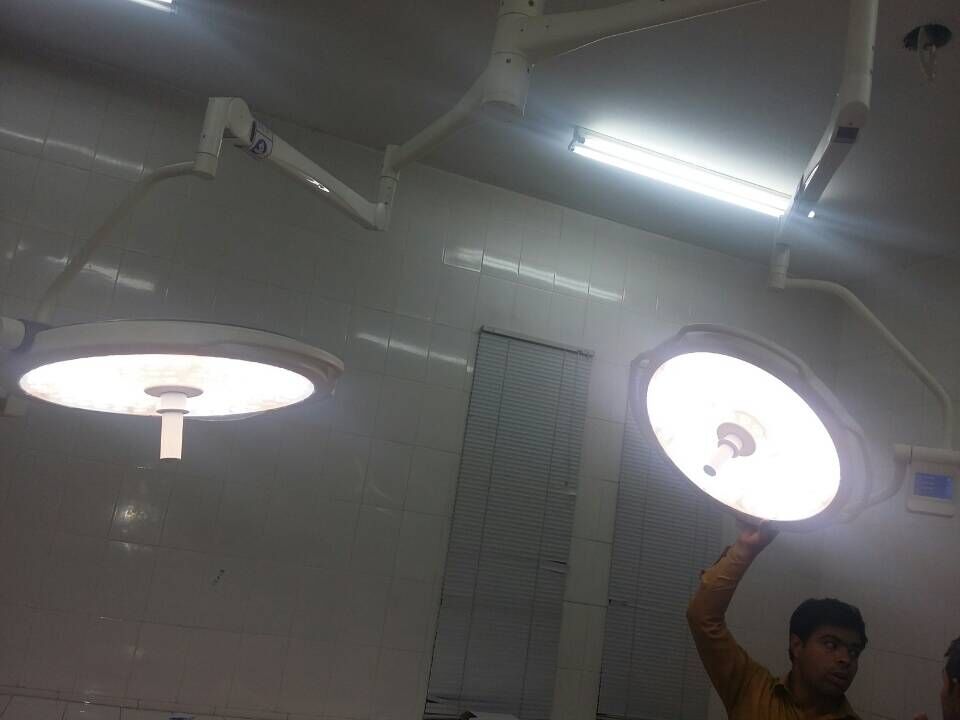

The installation covered multiple operating theaters and supporting procedure rooms. In the main surgical suite, two LEDD700/500 ceiling-mounted LED surgical operating lights were installed on dual-dome ceiling suspensions to provide combined adjustable illuminance up to 160,000 lux with a 98% shadowless rate. Each dome delivers 60 high-efficiency LED beads, with 120 LEDs per system enabling surgeons to illuminate deep cavities from multiple angles simultaneously — a critical advantage in abdominal, orthopedic, and cardiothoracic procedures performed at the facility.

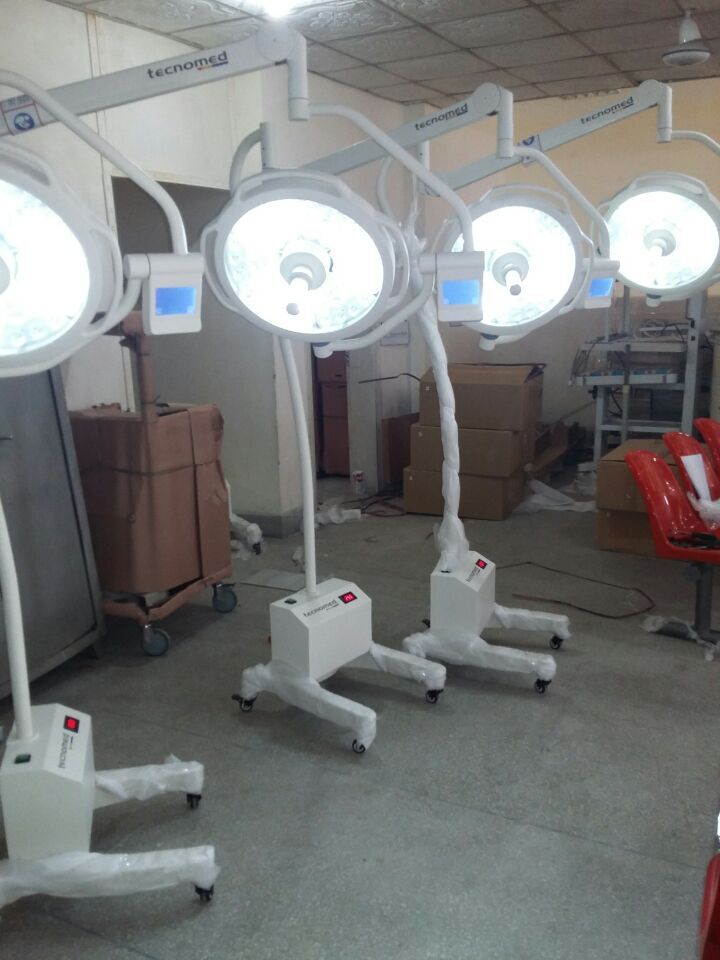

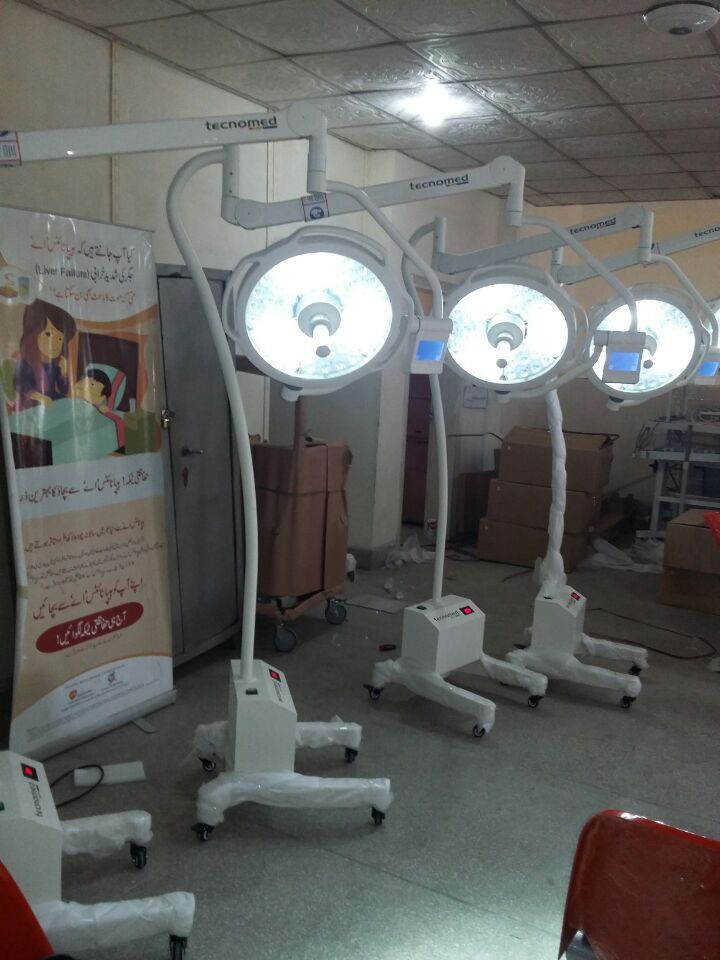

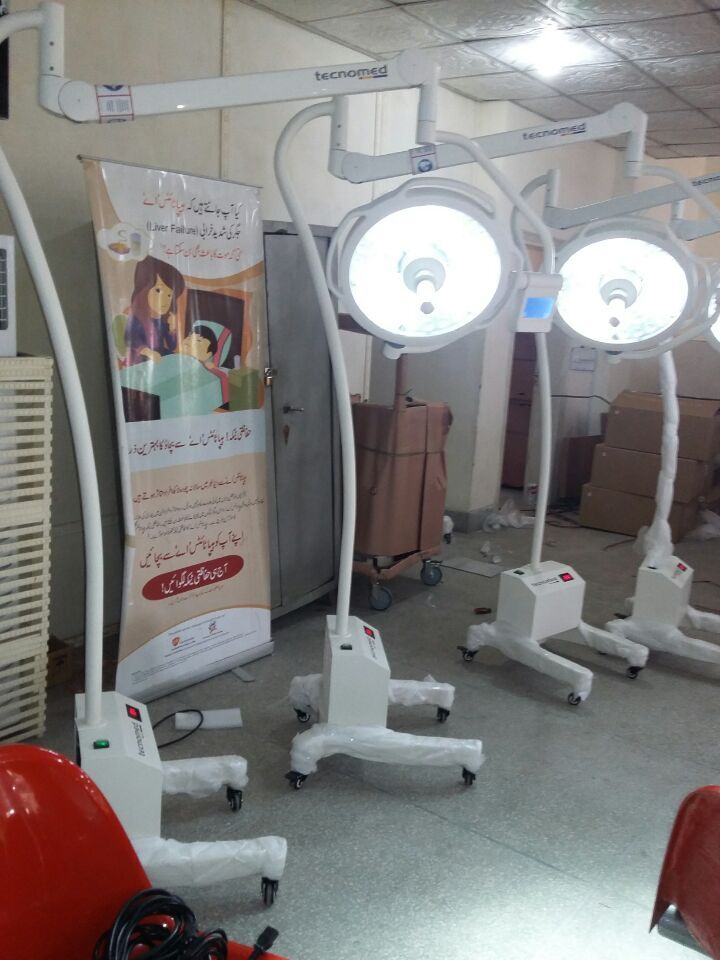

For mobile surgical coverage, four LEDL500S mobile stand LED surgical lights were deployed across the emergency department, minor procedure room, gynecology examination bay, and intensive care unit. The mobile lights feature a 500 mm lamp head on a multi-angle rotatable arm stand, allowing clinical staff to position the light spot freely over treatment beds, exam tables, and emergency stretchers without permanent ceiling infrastructure.
Clinicians at the hospital reported immediate improvements in three areas:
- Tissue-friendly cold light: Heat-to-light ratio below 3.6 mW/m²·lux prevents drying of exposed surgical wounds and reduces surgeon fatigue during long operations under tropical ambient temperatures.
- True-color surgical field: Tunable 3,500–5,000 K color temperature with CRI Ra 85–95 restores authentic tissue tones for precise intraoperative decision-making.
- Universal mounting flexibility: The combination of ceiling-mounted LEDD700/500 and mobile LEDL500S units covers every clinical scenario from major surgery to bedside examination.
TDY-1 Electric Operating Table: Precision Positioning for Every Surgical Discipline

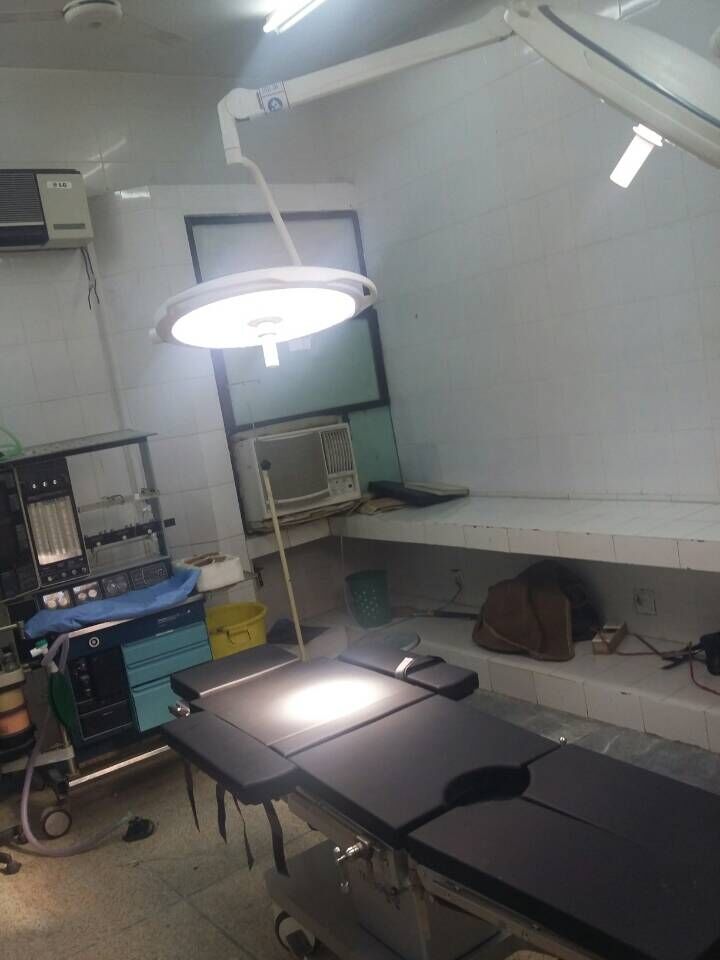

Alongside the surgical lighting upgrade, the hospital equipped its operating theaters with the TDY-1 Electric Operating Table, a Class I Type B continuous-use medical device engineered for versatile surgical positioning across multiple clinical disciplines. Powered by an electric hydraulic drive system with a wired handheld remote controller, the TDY-1 delivers smooth lifting, tilting, and positioning with exceptional stability, replacing the hospital's legacy manually cranked tables and eliminating the physical effort and positioning delays that previously slowed surgical turnover between procedures.
Key advantages reported by the hospital's surgical and nursing teams include:
- Easy, one-hand electric operation: A wired handheld remote controls all positioning functions — table height, backrest tilt, lateral tilt, Trendelenburg and reverse-Trendelenburg, and head-end longitudinal sliding — so the surgeon or scrub nurse can reposition the patient quickly without leaving the sterile field or cranking a manual mechanism.
- Built-in safety interlock logic: The TDY-1 automatically prevents conflicting operations during positioning, protecting both the patient and the surgical team from unsafe combinations of table movements.
- Outstanding stability under load: A reinforced load-bearing frame supports a safe total working load of 173 kg, with segmented plate limits of 50 kg on the backrest, 98 kg on the hip plate, and 25 kg on each leg plate, ensuring stable support in every surgical posture. All core hydraulic and electrical components are imported for extended service life and consistent safety performance.
- Full electric multi-angle adjustment: Tabletop height of 680±50 mm, lateral tilt up to 7 degrees, Trendelenburg and reverse-Trendelenburg up to 7 degrees, and head-end longitudinal sliding give surgical teams precise positioning for abdominal, pelvic, urological, and ENT procedures.
- Patient comfort and surgical access: A detachable segmented tabletop — independent headrest, backrest, kidney bridge, hip plate, and double leg plates — allows precise positioning for complex surgeries, while the kidney bridge elevation supports obstetric and urological approaches.
- Easy cleaning and maintenance: All cushions are fully detachable for thorough cleaning and disinfection between cases, and the smooth, hygienic tabletop surface simplifies routine reprocessing to meet infection-control protocols.
- Universal accessory compatibility: Standard accessory rails on both sides support rapid installation of surgical positioning accessories; the complete kit includes anesthesia screen, shoulder supports, body supports, arm supports, leg wrappers, and more.
- Wide power compatibility: Supports 220V±10% / 50Hz and 110V / 60Hz power environments for both domestic and overseas deployment, with a storage range of −30°C to 55°C for robust logistics in any climate.
At the Pakistani military hospital, the TDY-1 electric operating tables are deployed across general surgery for Trendelenburg and reverse-Trendelenburg abdominal positioning, orthopedics for fracture reduction and limb surgery with detachable leg plates, obstetrics and gynecology for pelvic and perineal procedures, urology for kidney and bladder surgery requiring lateral tilt, ENT for head and neck procedures with the adjustable headrest, and emergency surgery for rapid positioning during trauma cases.
Why LED Surgical Lights Outperform Old Halogen Operating Lights
The Pakistani military hospital's transition from halogen to LED surgical lighting illustrates the four core advantages that have made LED surgical lights the new global standard for operating theaters, day-surgery centers, emergency departments, and field medical facilities.
1. Cold Light Source with Low Heat Radiation Protects Surgical Tissue
Halogen surgical bulbs convert most of their input energy into infrared heat rather than visible light, raising the temperature at the surgical wound and drying exposed tissue during long procedures. The LEDD700/500 ceiling operating light and the LEDL500S mobile surgical light both use cold-light LED technology with a heat-to-light ratio below 3.6 mW/m²·lux, meaning that almost all electrical input is delivered as usable illumination rather than radiated heat. This protects delicate tissue, accelerates postoperative healing, and keeps the surgical team comfortable during procedures lasting several hours.
2. Ultra-Long Service Life Lowers Maintenance Cost
Traditional halogen surgical bulbs typically require replacement every 2,000 hours of use, forcing hospitals to maintain stock, schedule lamp changes, and absorb the recurring cost of consumables. The LEDD700/500 and LEDL500S both use LED modules rated for more than 50,000 hours of service life — over 25 times longer than halogen. For a Pakistani military hospital operating theaters daily, this translates into years of uninterrupted service without lamp replacement, eliminating both procurement overhead and the clinical risk of bulb failure mid-procedure.
3. Higher Shadowless Rate for Deep-Cavity Surgery
The LEDD700/500 ceiling operating light uses 120 high-performance LED beads arranged in a multi-point convergent optical design that delivers a 98% shadowless rate — effectively eliminating shadows cast by surgeons' heads, hands, and surgical instruments even in deep abdominal, orthopedic, and cardiothoracic cavities. Combined with adjustable 120–300 mm spot diameter, 1,400 mm illumination depth, and continuously variable 3,500–5,000 K color temperature, the LEDD700/500 provides unobstructed, true-color visibility throughout the surgical field. By contrast, halogen surgical lights produce a single broad beam with limited shadow compensation and noticeable color drift as the bulb ages.
4. Lower Total Cost of Ownership for Hospital Procurement
Although the upfront cost of LED surgical lighting is higher than halogen fixtures, the long-term economics strongly favor LED. Hospitals save on bulb replacement, energy consumption (typically 80% lower than halogen), air-conditioning load reduction in the operating theater, and unscheduled downtime caused by lamp failure. For military hospitals and remote facilities, where supply chains for replacement parts are long and unreliable, the 50,000+ hour LED service life is a decisive procurement advantage.
LEDD700/500 Ceiling Operating Light — Technical Specifications
- Illuminance: 60,000–160,000 lux (adjustable)
- Shadowless Rate: 98%
- LED Quantity: 120 high-efficiency LED beads
- Illumination Depth: greater than 1,400 mm
- Light Spot Diameter: 120–300 mm (adjustable)
- Color Temperature: 3,500–5,000 K (variable)
- Color Rendering Index (CRI): Ra 85–95
- LED Service Life: greater than 50,000 hours
- Heat-to-Light Ratio: less than 3.6 mW/m²·lux
- Control: LCD touch screen panel
- Installation: Ceiling suspension (dual-dome)
- Optional Accessory: HD surgical camera + DVR recording and monitor system
LEDL500S Mobile Surgical Light — Technical Specifications
- Model: LEDL500S Mobile Stand LED Cold Light Operating Light (LEDL500 platform with mobile stand configuration)
- Illuminance: 40,000–60,000 lux (adjustable)
- Illumination Depth: greater than 500 mm
- Lamp Head Diameter: 500 mm
- Light Spot Diameter: 150 mm
- Color Temperature: 4,000 ± 500 K
- Color Rendering Index (CRI): Ra ≥ 90
- LED Service Life: greater than 50,000 hours
- Heat-to-Light Ratio: less than 3.6 mW/m²·lux
- Control: Digital integrated circuit panel with visual brightness display
- Optional Configuration: Emergency backup battery for power-outage continuity
- Mounting: Mobile stand with multi-angle rotatable arm and locking caster wheels
TDY-1 Electric Operating Table — Technical Specifications
- Device Classification: Class I Type B continuous-use medical device
- Drive System: Electric hydraulic with wired handheld remote controller
- Tabletop Length: greater than or equal to 1,960 mm
- Tabletop Width: 550 ± 20 mm
- Tabletop Height: 680 ± 50 mm
- Lifting Stroke: greater than or equal to 300 mm
- Safe Total Working Load: 173 kg (backrest 50 kg / hip plate 98 kg / leg plate 25 kg)
- Max Lateral Tilt: 7 degrees
- Max Trendelenburg / Reverse-Trendelenburg: 7 degrees
- Segmented Tabletop: Detachable headrest, backrest, kidney bridge, hip plate, and double leg plates, all fully removable for cleaning
- Safety: Built-in interlock logic prevents conflicting operations
- Accessories: Universal side rails with anesthesia screen, shoulder/body/arm supports, leg wrappers, and full positioning kit
- Power Supply: 220V ± 10%, 50Hz ± 2%; compatible with 110V / 60Hz
- Core Components: Imported hydraulic and electrical parts
- Gross Weight: 290 kg | Net Weight: 247 kg
- Packing Dimension: 1,400 × 750 × 960 mm
About RedSunMediZone
RedSunMediZone is a specialist manufacturer of high-end surgical equipment — including LED surgical lights, electric operating tables, surgical pendants, and patient monitors — trusted by hospitals, clinics, and procurement authorities across more than 30 countries. The company's LEDD700/500 ceiling operating light, LEDL500S mobile surgical light, and TDY-1 electric operating table are deployed in military hospitals, tertiary teaching hospitals, day-surgery centers, veterinary clinics, and humanitarian field hospitals in tropical, desert, and high-altitude environments.
Every RedSunMediZone product is engineered around three principles: cold-light LED illumination that protects surgical tissue, ultra-long 50,000-hour LED service life that minimizes maintenance in any operating environment, and laminar-flow compatible hygienic design that meets modern sterile-surgical standards.
