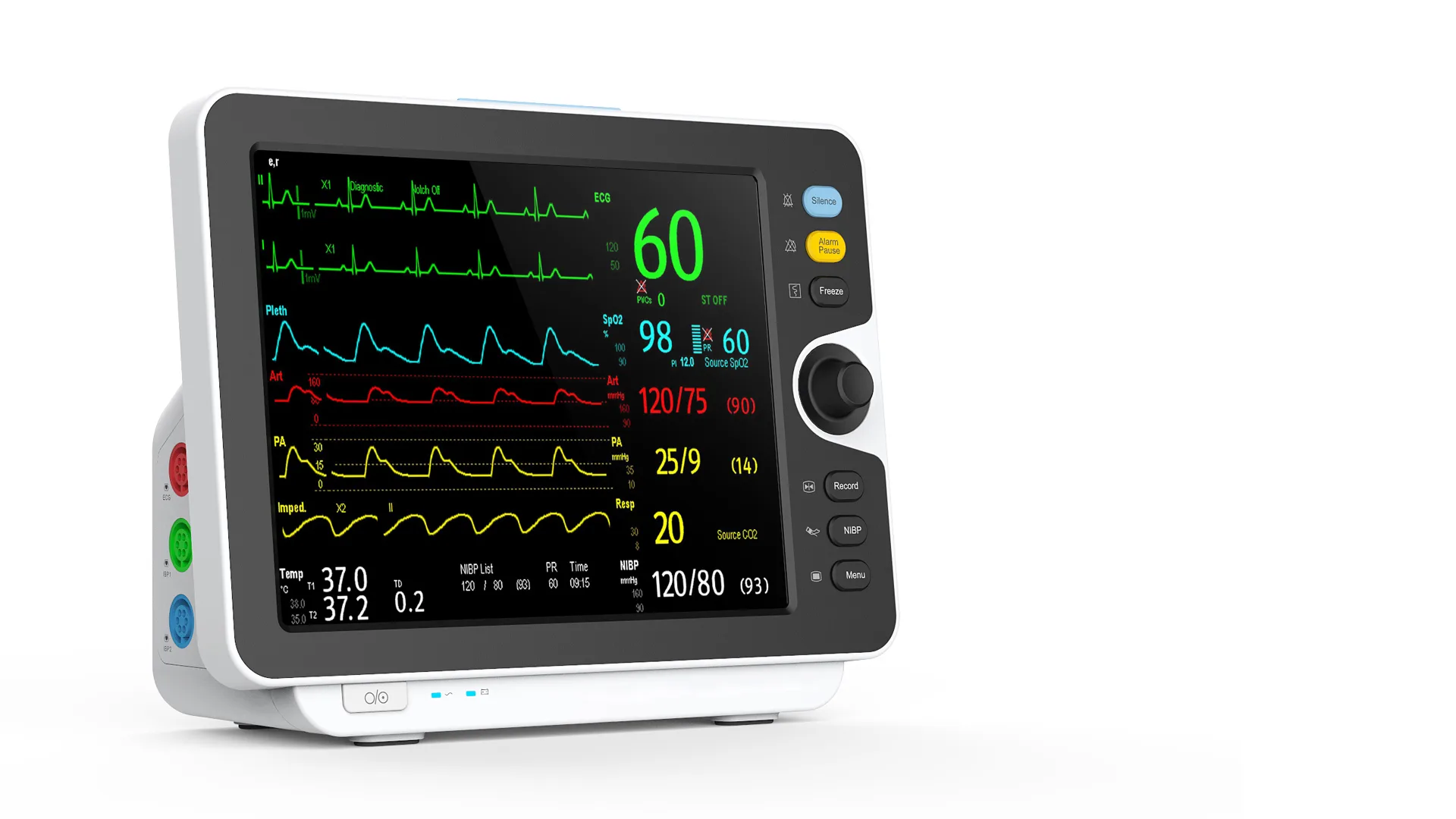

YK-8000B Multiparameter Patient Monitor

Product Overview

The YK-8000B is a CE-certified and ISO 13485-certified multiparameter patient monitor designed for continuous vital signs monitoring across adult, pediatric, and neonatal patient populations. Classified as a Class IIb medical device under SFDA regulations, this bedside patient monitor integrates 5-lead ECG, respiration (RESP), non-invasive blood pressure (NIBP), pulse oximetry (SpO2), pulse rate, dual-channel body temperature (TEMP), and ST segment analysis into a single compact platform. Equipped with a 12.1-inch high-definition TFT color display with a 170-degree wide viewing angle and fanless design, the YK-8000B delivers clear waveform visualization while preventing secondary air contamination in operating rooms, ICUs, CCUs, and surgical suites. The monitor supports central monitoring system integration via Wi-Fi, enabling real-time surveillance of up to 64 patient beds on a single platform. A built-in 11.1V 24Wh lithium-ion battery provides up to 2 hours of continuous operation after a full charge, ensuring uninterrupted patient monitoring during patient transport, power outages, or emergency response scenarios. With 720 hours of trend data storage, 10,000 NIBP event reviews, 12 hours of waveform recording, and 200 alarm event logs, clinicians can retrospectively analyze patient vital signs trends for improved clinical decision-making.

Key Features & Advantages

• 12.1-inch TFT color display with 170-degree viewing angle: High-definition screen with fanless design ensures clear visualization of multi-parameter waveforms while eliminating dust circulation in sterile clinical environments.
• Comprehensive vital signs monitoring: Simultaneously monitors 5-lead ECG (RA, LA, LL, RL, V), respiration rate, SpO2 (0-100%), NIBP with manual/auto/STAT modes, dual-channel temperature, pulse rate, and ST segment analysis (-2.0mV to +2.0mV).
• Three patient modes: Supports adult, pediatric, and neonatal monitoring with appropriate NIBP overpressure protection (Adult: 300mmHg, Pediatric: 240mmHg, Neonatal: 150mmHg).
• Extended data storage: 720-hour trend diagrams, 10,000 NIBP measurement events, 12-hour waveform review, and 200 alarm event records support comprehensive patient history review and clinical audit requirements.
• Drug concentration titration analysis: Built-in clinical decision support tool for medication dosing calculations directly on the monitor.
• Central monitoring system compatibility: Wi-Fi integration enables wireless data transmission to a central station, supporting up to 64 beds on one screen with 8 traces per monitor for hospital-wide patient surveillance.
• Optional advanced modules: Configurable with EtCO2 (capnography), dual invasive blood pressure (IBP) monitoring with 8 label types (ART, PA, CVP, RAP, LAP, ICP, P1, P2), Nellcor SpO2 module, Suntch NIBP module, and a thermal array recorder for hard-copy output.

Technical Specifications

• Display: 12.1-inch TFT color LCD, 170-degree wide viewing angle
• Patient types: Adult, Pediatric, Neonatal
• ECG: 5 leads (RA, LA, LL, RL, V); lead modes: I, II, III, aVR, aVL, aVF, V; gain: 1.25-20mm/mV; sweep speed: 6.25-50mm/s; bandwidth: 0.05-130Hz (diagnostic); CMRR >= 112dB
• RESP: Impedance method (RA-LL); range: Adult 0-120 BrPM, Neonatal/Pediatric 0-150 BrPM; apnea alarm: 10-40s
• SpO2: Measurement range 0-100%; accuracy: 70-100% plus or minus 2%
• NIBP: Oscillometric method; modes: Manual/Auto/STAT; adult range: SYS 40-280mmHg, DIA 10-220mmHg; accuracy: max mean error 5mmHg, max standard deviation 8mmHg
• TEMP: Dual channel; range 0-50 degrees C; resolution 0.1 degrees C; accuracy plus or minus 0.1 degrees C
• Pulse rate: Range 20-300 bpm; accuracy plus or minus 3 bpm
• ST segment: Range -2.0mV to +2.0mV; accuracy plus or minus 0.02mV or plus or minus 10%
• Data storage: 720h trend, 10000 NIBP events, 12h waveform, 200 alarm events
• Power: AC 100-240V, 50/60Hz; built-in 11.1V 24Wh Li-ion battery, 2h continuous operation
• Dimensions: 305 x 162 x 290 mm (approx.); weight: 4 kg (approx.)
• Operating environment: Temperature 0-40 degrees C; humidity 15-80%; pressure 86.0-106.0 kPa
• Quality standards: CE, ISO 13485, SFDA Class IIb; anti-electroshock Class I; TEMP/SpO2/NIBP: BF; ECG/Resp: CF
• Optional modules: EtCO2, dual IBP, Nellcor SpO2, Suntch NIBP, thermal recorder, rolling stand, wall mount

Comparison & Competitive Advantages

Compared to premium-brand multiparameter patient monitors from Philips or GE Healthcare, the YK-8000B offers equivalent core monitoring parameters (ECG, SpO2, NIBP, TEMP, RESP, ST segment) at a significantly more accessible price point, making it particularly suitable for mid-tier hospitals, community healthcare centers, and emerging-market medical facilities. Unlike basic vital signs monitors that lack ECG and ST segment analysis, the YK-8000B provides diagnostic-grade ECG bandwidth (0.05-130Hz) and ST segment measurement, supporting cardiology workflows. The fanless design eliminates airborne contamination risks that fan-cooled monitors present in operating rooms and sterile environments. The 720-hour trend storage capacity exceeds that of many competing monitors in the same price tier, enabling longer retrospective analysis without data export.

Applications

The YK-8000B multiparameter patient monitor is deployed in operating rooms (OR), intensive care units (ICU), cardiac care units (CCU), emergency departments, ambulance and patient transport, post-anesthesia care units (PACU), community healthcare centers, specialized hospitals (including dental clinics), and beauty institutions. It is suitable for perioperative monitoring, critical care surveillance, emergency triage, neonatal monitoring, and home health monitoring scenarios. The central monitoring system integration makes it ideal for hospital ward deployments requiring multi-bed surveillance.

Frequently Asked Questions

Q: What is the YK-8000B multiparameter patient monitor used for?

A: The YK-8000B is a bedside patient monitor used for continuous real-time monitoring of vital signs including ECG, respiration rate, blood oxygen saturation (SpO2), non-invasive blood pressure (NIBP), body temperature, pulse rate, and ST segment analysis. It is designed for use in operating rooms, ICUs, CCUs, emergency departments, and other clinical settings requiring comprehensive patient vital signs surveillance.

Q: What patients can the YK-8000B monitor be used on?

A: The YK-8000B supports three patient modes: adult, pediatric, and neonatal. Each mode applies appropriate NIBP overpressure protection thresholds (Adult: 300mmHg, Pediatric: 240mmHg, Neonatal: 150mmHg) to ensure patient safety during blood pressure measurement.

Q: How long does the battery last on the YK-8000B patient monitor?

A: The built-in 11.1V 24Wh lithium-ion battery provides approximately 2 hours of continuous monitoring operation after a full charge, with a 5-minute low-battery alarm warning before complete discharge. This supports intra-hospital patient transport and temporary power outage scenarios.

Q: Does the YK-8000B support central monitoring system integration?

A: Yes, the YK-8000B supports Wi-Fi integration with a central monitoring station. The central system can display up to 64 patient beds simultaneously on one platform, with 8 waveform traces per monitor and 16 monitors visible on a single screen, enabling hospital-wide real-time patient surveillance.

Q: What optional modules are available for the YK-8000B?

A: Optional modules include EtCO2 (end-tidal CO2 capnography), dual invasive blood pressure (IBP) monitoring with labels for ART, PA, CVP, RAP, LAP, ICP, P1, and P2, Nellcor SpO2 module, Suntch NIBP module, and a thermal array recorder for printing waveforms and measurement data.
