PROLED H6 Series Surgical Light

PROLED H6 Series LED Surgical Light

The PROLED H6 Series is a premium LED surgical light engineered for high-performance operating theater illumination, delivering adjustable illuminance from 40,000 to 160,000 lux with an exceptional color rendering index (CRI) of Ra≥98. Designed for complex surgical procedures across general surgery, orthopedics, cardiothoracic, neurosurgery, and transplant surgery, the H6 Series combines intelligent shadow compensation technology with a modular camera system to meet the demands of modern operating rooms.

Key Features & Advantages

• Superior Color Rendering: CRI Ra≥98, with special indices R9≥98, R13≥99, and R15≥99, reproducing the most accurate tissue tones for precise intraoperative judgment.
• Intelligent Shadow Compensation: When the surgeon's head or instruments block part of the light source, unobstructed LED units automatically compensate brightness to maintain consistent illumination across the entire surgical field.
• Auto Brightness Stabilization: Optimized stable lighting technology automatically compensates brightness when the light spot is adjusted, keeping central illumination unchanged.

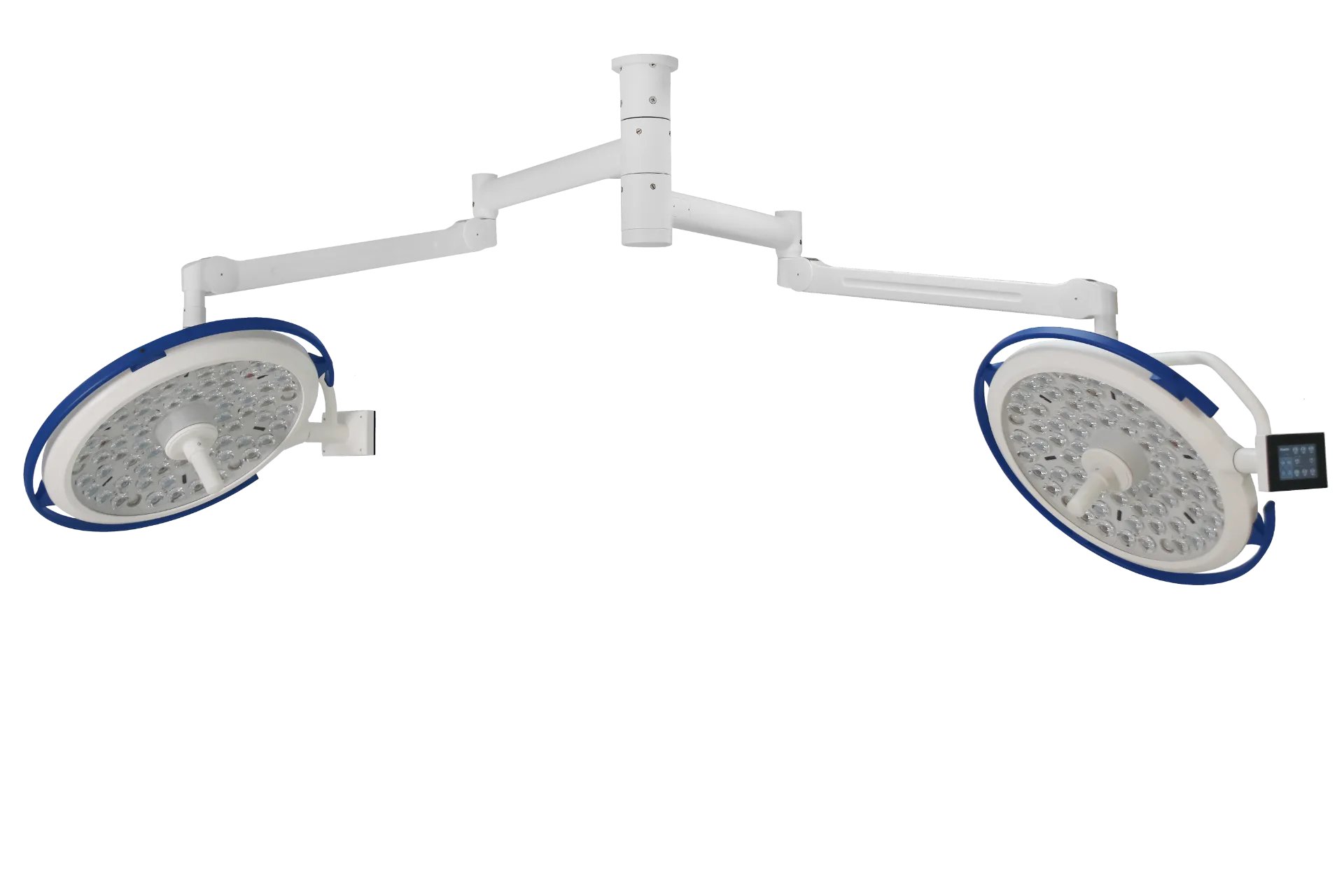

• Dual-Lamp Mutual Control: The controller of one lamp can independently manage the other lamp or operate both simultaneously, providing flexible control for the surgical team.

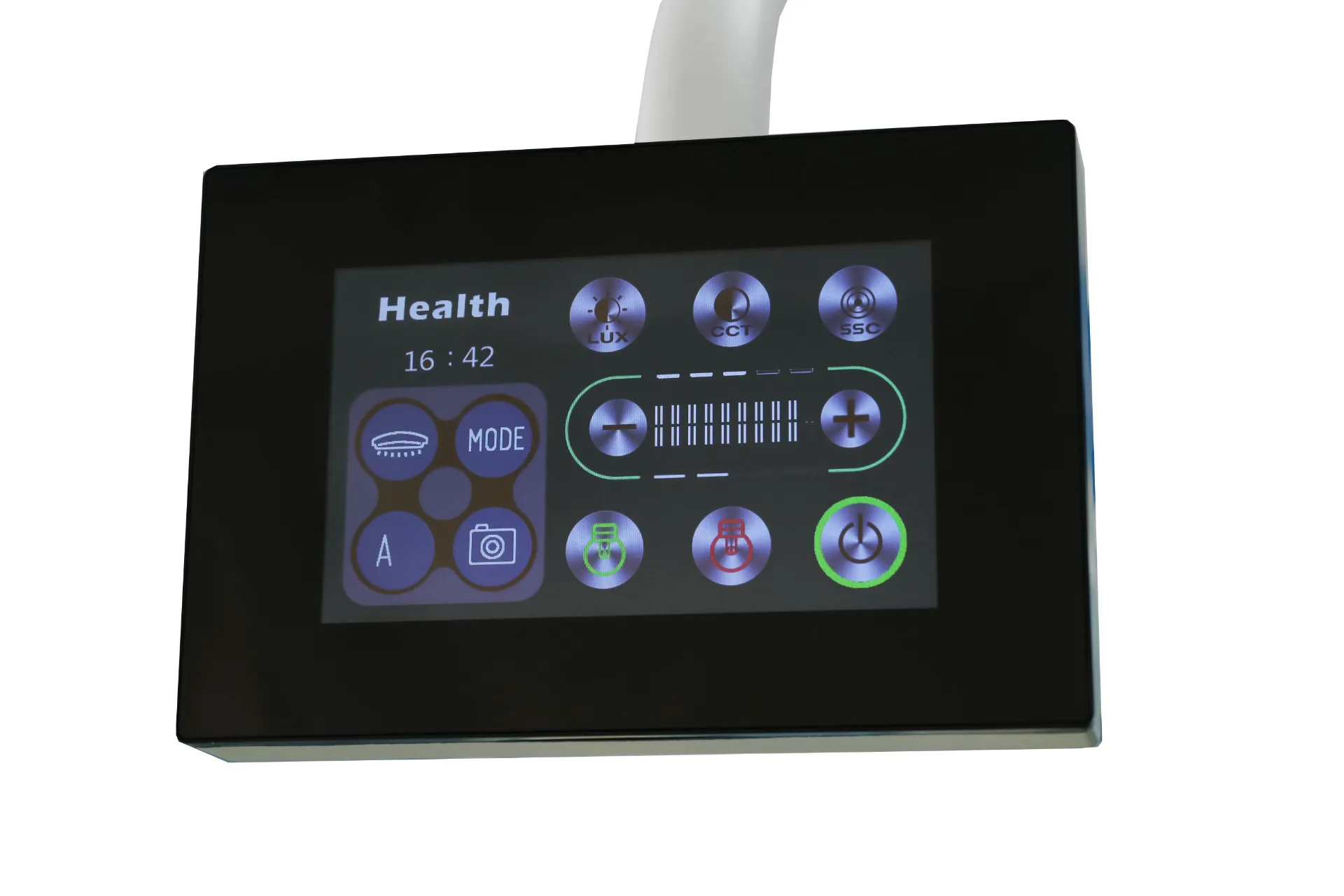

• Intuitive Touchscreen Display: New-generation touchscreen interface enables quick, precise lighting adjustments with a user-friendly design.
• Modular Optional Camera System: Hot-swappable, plug-and-play wireless camera module supports auto-focus for surgical recording, remote consultation, and clinical teaching. Available in HD (2MP, 10x optical zoom) and 4K (8MP, 20x optical zoom) configurations.
• Ultra-Long LED Life: 60,000-hour LED service life with 100 VA per lamp head, dramatically reducing long-term maintenance costs.
• Global Voltage Compatibility: Supports 100–240V, 50/60Hz, compatible with power grid standards worldwide.

Clinical Applications

The PROLED H6 Series surgical light is suitable for a wide range of operating room procedures, including:

• General surgery (abdominal, thoracic, and soft tissue procedures)
• Orthopedic surgery (including spinal and joint procedures)
• Cardiothoracic and cardiovascular surgery
• Neurosurgery and microsurgery
• Transplant and organ resection surgery
• Plastic and reconstructive surgery
• Emergency trauma surgery

PROLED H6 vs. Conventional Surgical Lights

Compared to standard LED surgical lights, the H6 Series stands out with its intelligent shadow compensation technology and auto brightness stabilization — features typically found only in premium-tier surgical lighting systems. Its CRI of Ra≥98 (with R9≥98) surpasses most surgical lights on the market (typically Ra 85–95), providing superior tissue color fidelity critical for vascular and neurological procedures.

Compared to traditional halogen surgical lights, the H6 Series LED technology offers 60,000-hour service life (vs. ~2,000 hours for halogen), 80%+ energy savings, cooler operating temperatures, and consistent color rendering without degradation over time.

Flexible Installation Solutions

The H6 Series supports multiple installation configurations to suit different clinical environments:

• Ceiling-mounted (standard and low-ceiling options)
• Wall-mounted
• Mobile floor stand
• Integrated system configuration

These solutions are compatible with both standard and low-ceiling-height operating rooms, outpatient clinics, and emergency rooms.

Technical Specifications

• Model: PROLED H6 Series
• Type: LED surgical operating light (single/dual head configurations)
• Illuminance: 40,000–160,000 lux (adjustable)
• Color Temperature: 3,000–5,000 K (variable)
• Color Rendering Index (CRI): Ra≥98, R9≥98, R13≥99, R15≥99
• Light Spot Diameter: 120–350 mm (adjustable)
• Illumination Depth: >1,500 mm
• LED Service Life: >60,000 hours
• Power per Lamp Head: 100 VA
• Power Supply: 100–240V, 50/60Hz
• Control: Touchscreen display, dual-lamp mutual control
• Intelligent Features: Shadow compensation, auto brightness stabilization
• Optional Camera: HD (2MP, 10x zoom) or 4K (8MP, 20x zoom)
• Installation Options: Ceiling mount, wall mount, mobile stand, integrated system

Frequently Asked Questions

What makes the PROLED H6 Series different from other surgical lights?

The H6 Series features intelligent shadow compensation technology that automatically adjusts brightness when the light is partially blocked, auto brightness stabilization during spot adjustment, and a CRI of Ra≥98 with R9≥98 — providing superior tissue color fidelity compared to standard surgical lights (typically Ra 85–95).

What surgical specialties is the H6 Series best suited for?

The H6 Series is designed for complex procedures across general surgery, orthopedics, cardiothoracic surgery, neurosurgery, transplant surgery, and plastic surgery, where high CRI and deep cavity illumination are critical.

Does the H6 Series support surgical video recording?

Yes. An optional modular camera system is available in HD (2MP, 10x optical zoom) or 4K (8MP, 20x optical zoom) configurations, supporting surgical recording, remote consultation, and clinical teaching via wireless transmission.

Can the H6 Series be installed in low-ceiling operating rooms?

Yes. The H6 Series offers flexible installation solutions including ceiling-mounted (standard and low-ceiling), wall-mounted, mobile stand, and integrated system configurations.
