LEDD700/500 Double-Head LED Surgical Operating Light
The LEDD700/500 is a high-performance double-head LED surgical operating light featuring 120 high-efficiency LED beads with adjustable illuminance from 60,000 to 160,000 lux and an outstanding 98% shadowless rate. Engineered for orthopedic, abdominal, cardiothoracic, and other complex surgical procedures, this double-dome LED OT light delivers superior deep cavity illumination with a lighting depth exceeding 1,400 mm, combined with a fully sealed hygienic design compliant with laminar flow purification standards.
Key Features & Advantages
- 98% Shadowless Rate: Multi-point light source convergent design with CAD-optimized multi-beam technology effectively eliminates shadows cast by surgeons' heads and hands, providing unobstructed visibility of deep surgical cavities.
- Deep Cavity Illumination: Lighting depth exceeding 1,400 mm ensures uniform brightness even in deep surgical fields, ideal for orthopedic, abdominal, and cardiothoracic procedures.
- Superior Color Rendering: 120 high-performance LED beads deliver tunable 3,500–5,000 K color temperature with CRI Ra 85–95, restoring authentic tissue color for precise intraoperative observation.
- Cold Light Technology: Latest-generation LED cold light source with heat-to-light ratio below 3.6 mW/m²·lux, protecting surgical wounds and reducing surgeon fatigue during long operations.

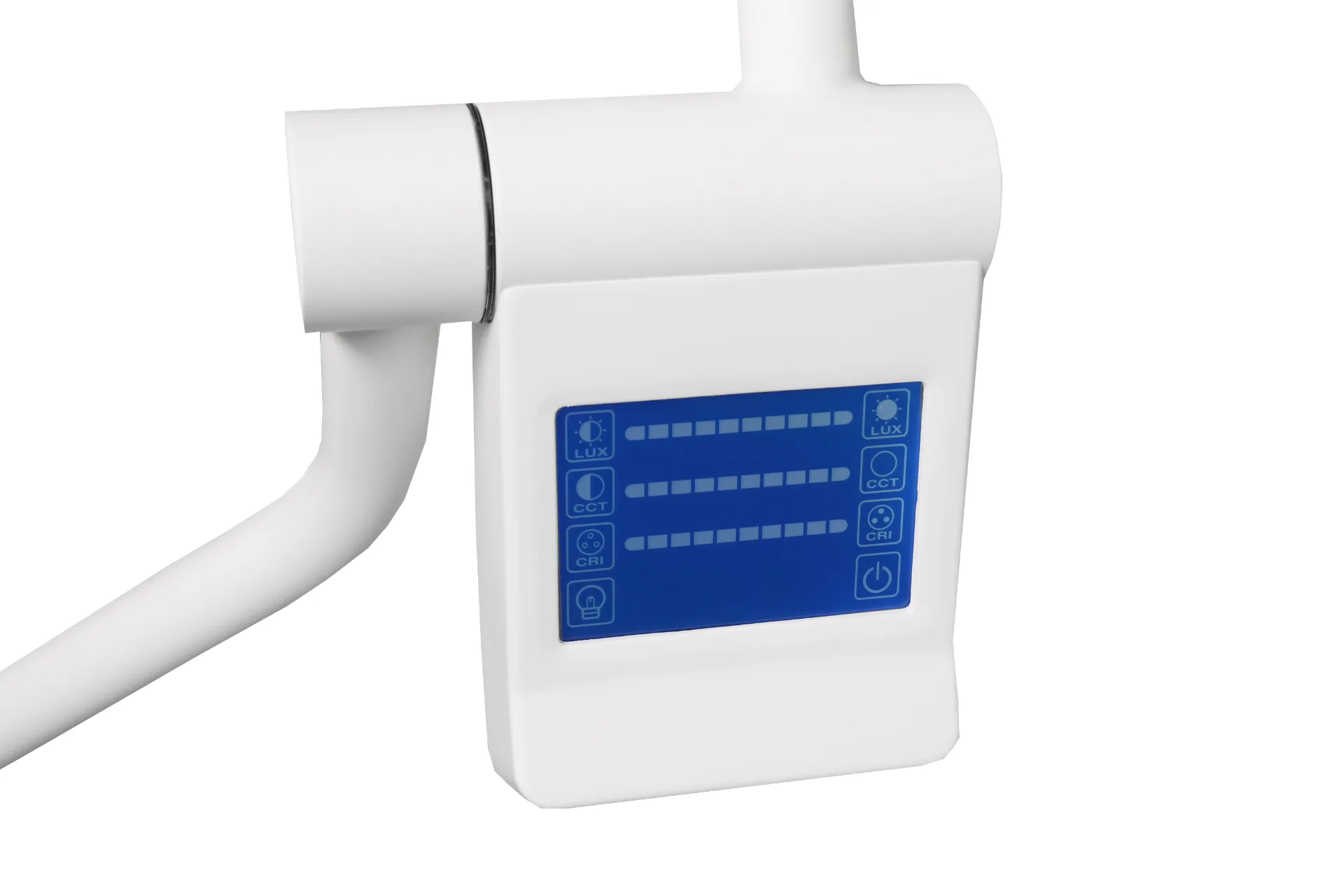

- Intuitive LCD Touch Control: One-touch adjustment of brightness, color temperature, and light spot size (120–300 mm) for precise surgical lighting control.
- Optional HD Camera System: Intelligent HD surgical camera with optical zoom, auto iris, and auto white balance supports real-time live preview, automatic video storage, playback, and remote network transmission for surgical teaching and telemedicine.
- Fully Enclosed Hygienic Housing: Smooth lamp housing without airflow dead zones meets laminar flow purification and high-temperature disinfection standards for sterile operating environments.
- Ultra-Long LED Life: LED service life exceeding 50,000 hours, dramatically reducing maintenance and replacement costs.
Clinical Applications
The LEDD700/500 double-head LED surgical light is suitable for a wide range of complex surgical procedures, including:
- Orthopedic surgery (spinal, joint, and trauma procedures)
- Abdominal surgery (general and gastrointestinal)
- Cardiothoracic surgery
- General surgery
- Vascular surgery
- Emergency trauma surgery
- Endoscopic and minimally invasive procedures
Double-Head vs. Single-Head Surgical Lights

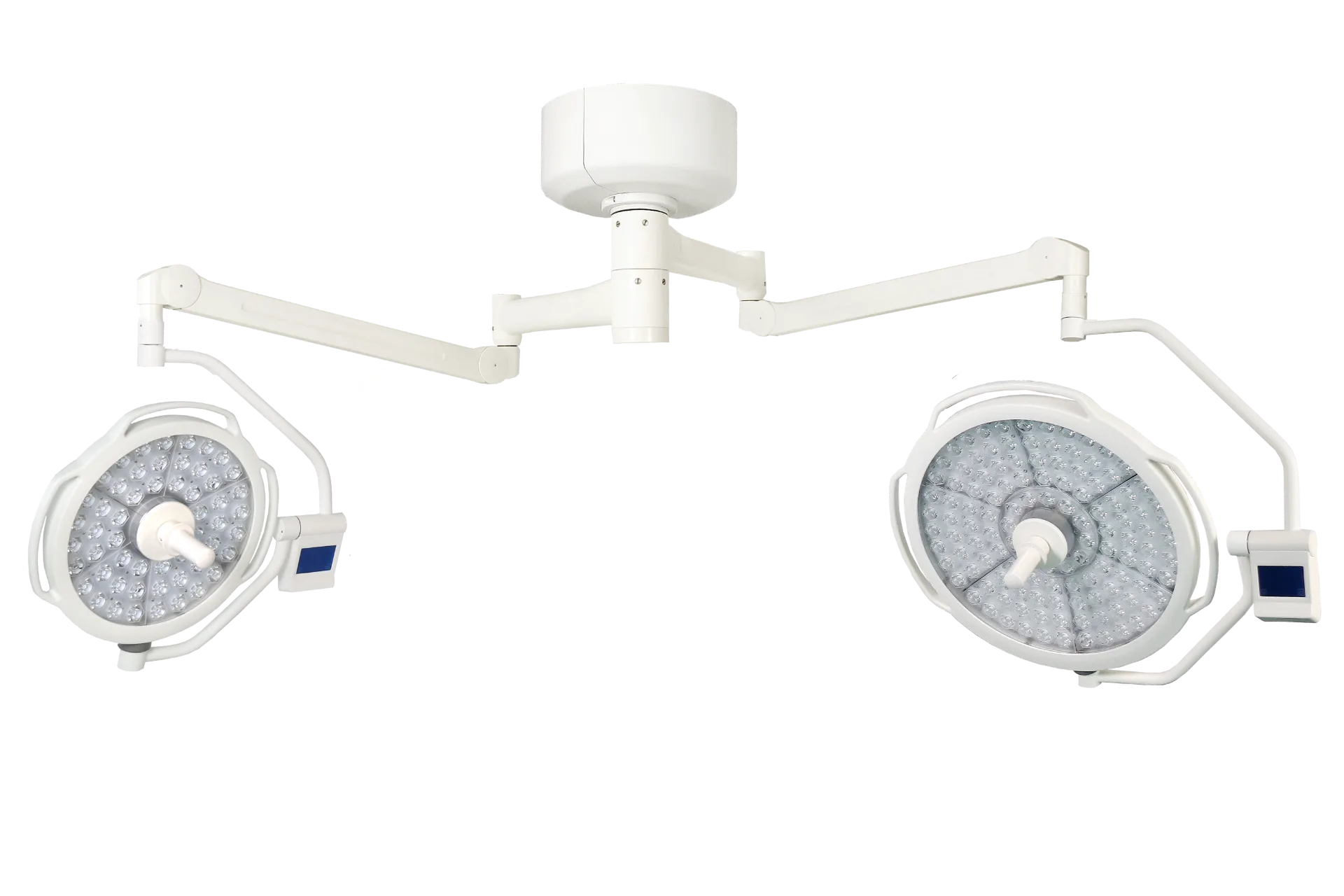

A double-head configuration provides two independently adjustable light sources, allowing surgeons to illuminate the surgical field from multiple angles simultaneously. With 120 LED beads and a 98% shadowless rate, the LEDD700/500 delivers superior shadow elimination compared to single-head lights, making it the preferred choice for complex, multi-angle surgical procedures.
Compared to traditional halogen surgical lights, the LEDD700/500's LED technology offers a 50,000+ hour service life (vs. ~2,000 hours for halogen), 80%+ energy savings, cooler operating temperatures, and consistent color rendering without degradation.
Technical Specifications
- Model: LEDD700/500
- Type: Double-head LED surgical operating light
- Illuminance: 60,000–160,000 lux (adjustable)
- Shadowless Rate: 98%

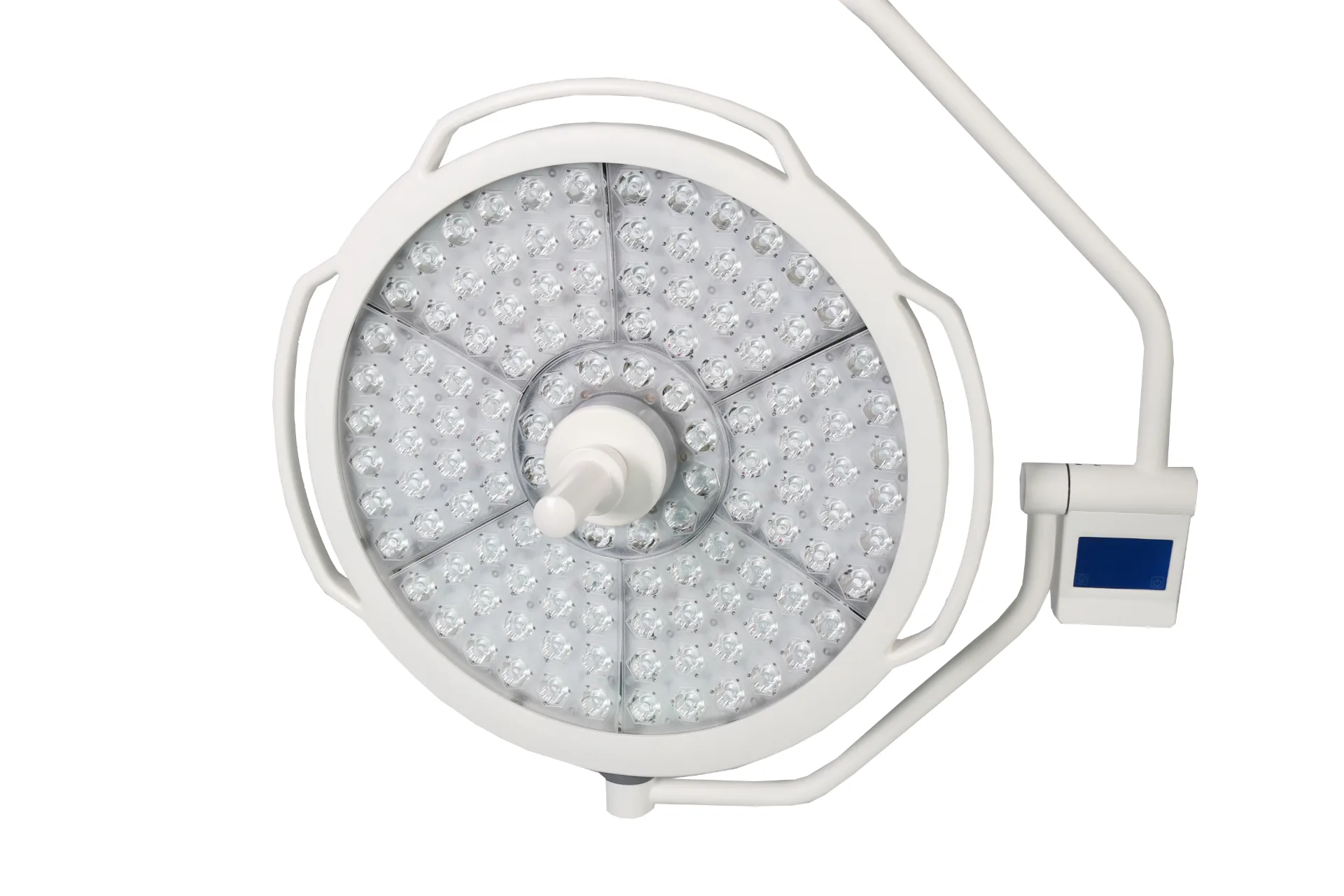

- LED Quantity: 120 pcs
- Illumination Depth: >1,400 mm
- Light Spot Diameter: 120–300 mm (adjustable)

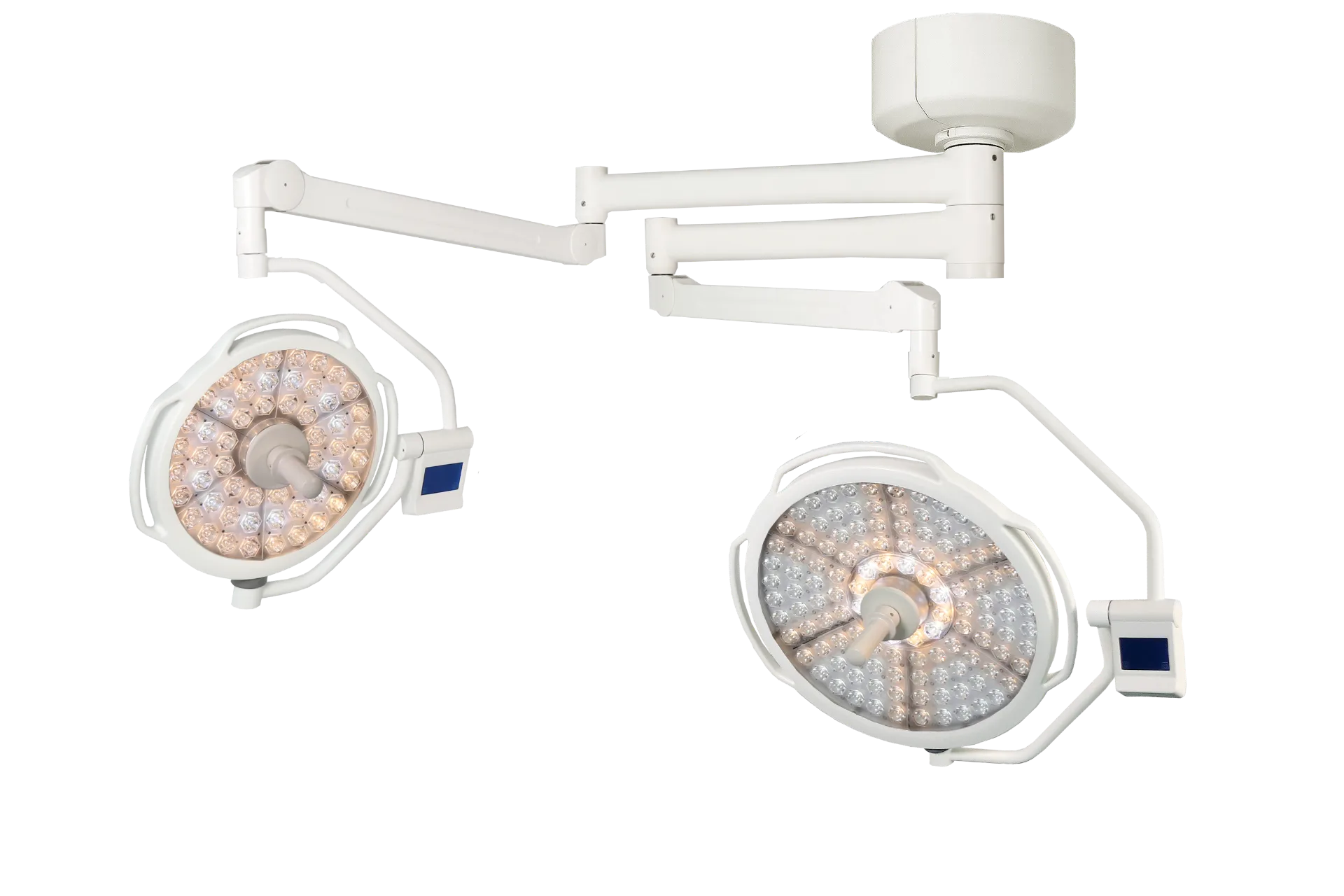

- Color Temperature: 3,500–5,000 K (variable)
- Color Rendering Index (CRI): Ra 85–95
- LED Service Life: >50,000 hours
- Heat-to-Light Ratio: <3.6 mW/m²·lux
- Control: LCD touch screen panel

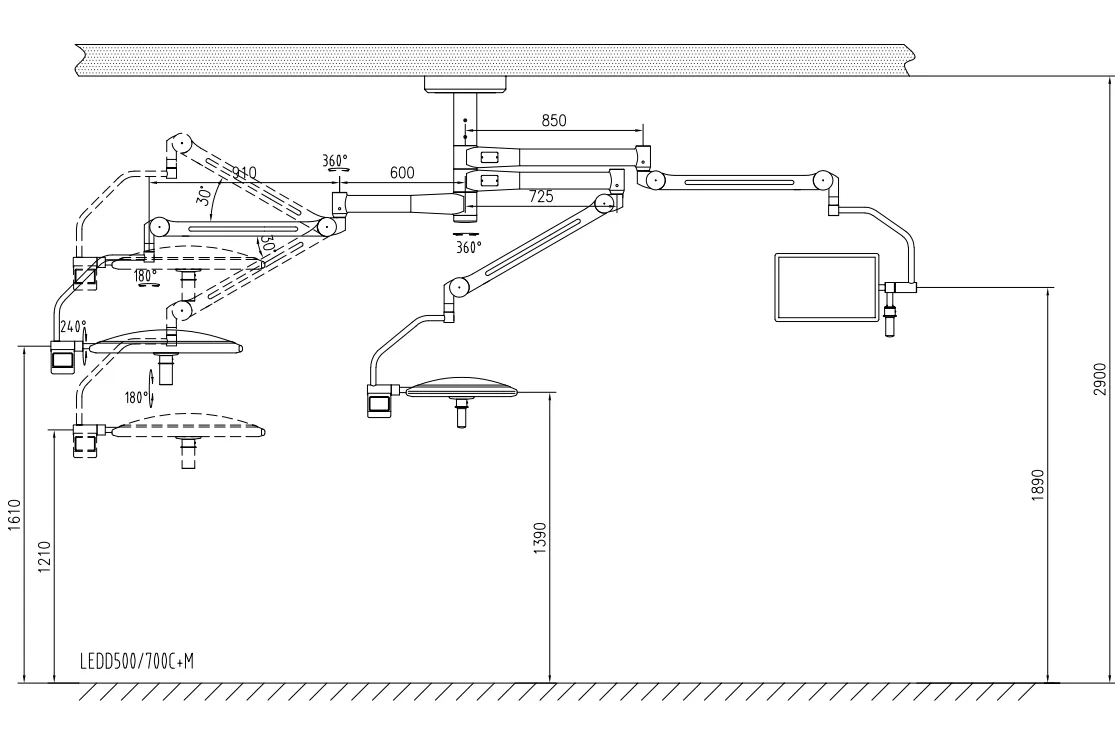

- Installation Options: Ceiling suspension, wall mount, mobile floor stand
- Optional Accessory: HD surgical camera + DVR recording & monitor system
Frequently Asked Questions
What is the shadowless rate of the LEDD700/500?
The LEDD700/500 achieves a 98% shadowless rate through its multi-point light source convergent design and CAD-optimized multi-beam technology, effectively eliminating shadows from surgeons' heads, hands, and instruments.
What surgeries is the LEDD700/500 best suited for?
With 120 LED beads, 160,000 lux maximum illuminance, and 1,400 mm+ illumination depth, the LEDD700/500 is ideal for complex deep-cavity procedures including orthopedic, abdominal, and cardiothoracic surgery.
Does the LEDD700/500 support surgical video recording?
Yes. An optional intelligent HD camera system with optical zoom, auto iris, and auto white balance supports real-time live preview, automatic video storage, playback, and remote network transmission for surgical teaching and telemedicine.
How does the LEDD700/500 compare to the LEDD620/620?
The LEDD700/500 features 120 LED beads (vs. 72 in the LEDD620/620), higher maximum illuminance (160,000 vs. 150,000 lux), a higher shadowless rate (98% vs. 90%), and a wider light spot range (120–300 mm vs. 150–260 mm), making it suitable for more complex surgical scenarios.
