LEDL740 Mobile Stand LED Operating Light

LEDL740 Mobile Stand LED Operating Light

The LEDL740 is a high-output mobile stand LED operating light delivering adjustable illuminance from 60,000 to 160,000 lux for surgical and emergency clinical environments. Designed for mobile surgical lighting in emergency departments, outpatient operating rooms, intensive care units, and field medical rescue operations, this mobile LED surgical light combines high-efficiency LED cold light source technology with a multi-point converging shadowless optical system to provide clear, deep-cavity illumination that supports minor and medium-sized surgical procedures.

Key Features and Advantages

• High-Output LED Cold Light Source: Latest-generation LED cold light delivers 60,000 to 160,000 lux adjustable illuminance with a heat-to-light ratio below 3.6 mW/m²·lux, preventing thermal damage to surgical wounds and reducing visual fatigue for medical staff during prolonged procedures.
• Multi-Point Shadowless Optics: Converging optical design effectively eliminates shadows cast by surgeons' heads and hands, ensuring unobstructed deep-cavity illumination across the entire surgical field.
• Wide Spot Adjustment: Light spot diameter continuously adjustable from 120 to 350 mm to accommodate both minor surgical incisions and broader examination fields.

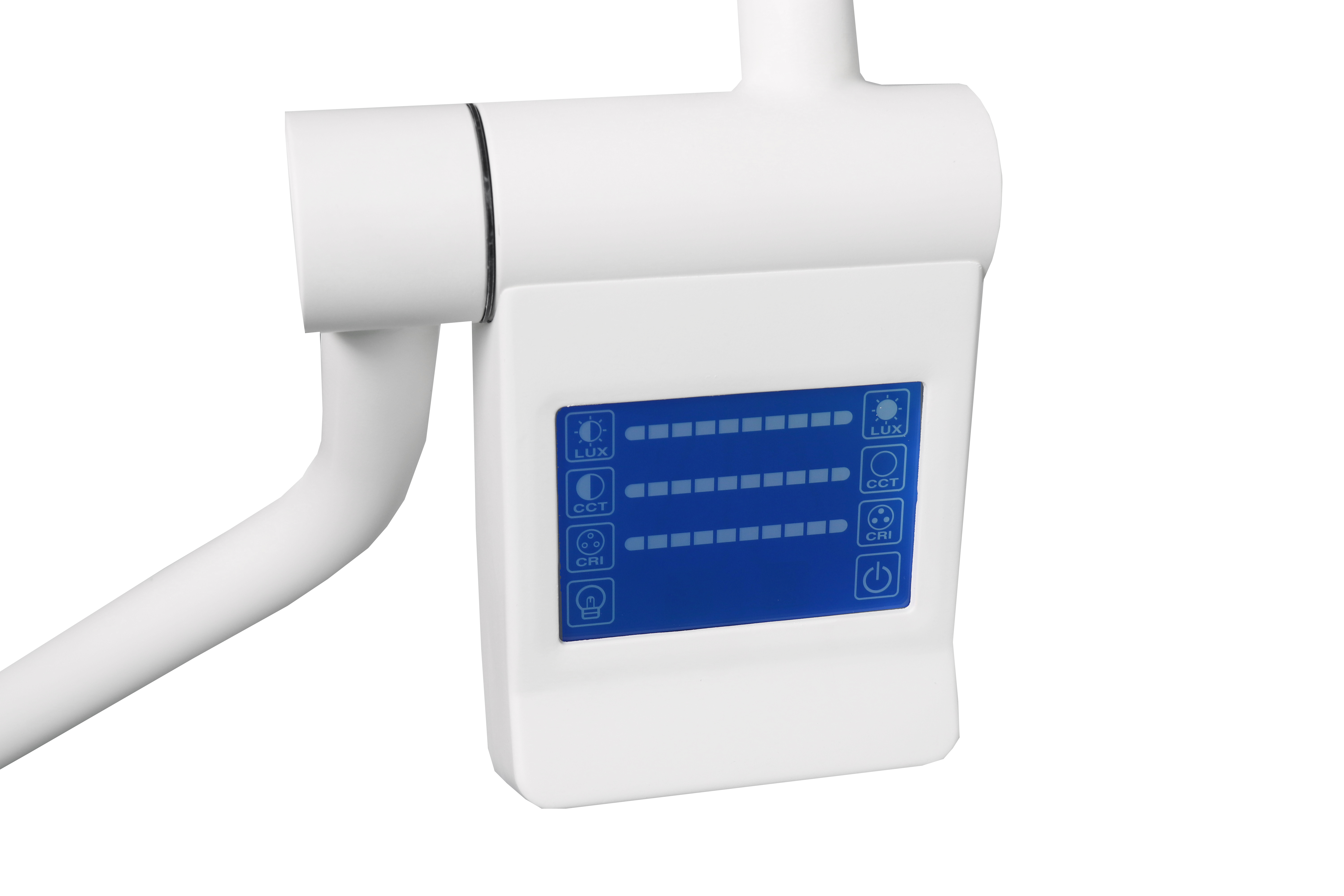

• Touch Screen Interface: Integrated LCD touch control panel enables one-touch adjustment of brightness, color temperature, color rendering, and spot size for intuitive clinical operation.
• Variable Color Temperature: Adjustable 3,500 to 5,000 K color temperature with Ra 85 to 98 color rendering index, accurately reproducing natural tissue tones across diverse surgical specialties.
• 95% Shadowless Rate: Multi-beam convergent structure achieves a 95% shadowless rate, providing reliable illumination stability even during complex multi-instrument procedures.
• Ultra-Long LED Service Life: LED service life exceeding 50,000 hours, significantly reducing lamp replacement frequency and total cost of ownership.
• Mobile Stand Configuration: Heavy-duty mobile stand with multi-angle adjustable arm supports free positioning of the lamp head over treatment beds, stretchers, and operating tables.

Clinical Applications

The LEDL740 mobile stand LED operating light is widely used across the following healthcare settings:

• Emergency departments and trauma centers
• Outpatient operating rooms and ambulatory surgical centers
• Intensive care units and critical care
• Field medical rescue and disaster relief operations
• Community health centers and rural clinics
• Plastic surgery clinics and dermatology suites
• Gynecological treatment rooms
• Veterinary surgical environments

Mobile Stand vs. Ceiling-Mounted Surgical Lights

Compared to ceiling-mounted surgical lights, the LEDL740 mobile stand design offers flexible redeployment between operating rooms and treatment areas without requiring permanent ceiling installation. With 160,000 lux maximum illuminance and adjustable color temperature, the LEDL740 approaches the performance of fixed surgical lights while remaining fully portable for emergency response, mobile medical vehicles, and clinics with limited infrastructure.

Versus the LEDL500 mobile stand light (40,000 to 60,000 lux illuminance), the LEDL740 delivers significantly higher light output and deeper cavity illumination, making it suitable for medium-sized surgical procedures rather than basic examinations.

Technical Specifications

• Model: LEDL740
• Type: Mobile stand LED cold light operating light
• Illuminance: 60,000 to 160,000 lux (adjustable)
• Color Temperature: 3,500 to 5,000 K (variable)
• Color Rendering Index: Ra 85 to 98
• Heat-to-Light Ratio: less than 3.6 mW/m²·lux
• Light Spot Diameter: 120 to 350 mm (adjustable)
• Lighting Depth: greater than 700 mm
• Shadowless Rate: 95 percent
• Power Consumption: 80 W
• LED Service Life: greater than 50,000 hours
• Control Panel: LCD touch screen interface
• Installation Type: Mobile stand with multi-joint adjustable arm

Frequently Asked Questions

What surgical procedures is the LEDL740 suitable for?

The LEDL740 mobile operating light is designed for emergency departments, outpatient operating rooms, intensive care units, field medical rescue, plastic surgery clinics, gynecological treatment rooms, and community health centers. It supports wound debridement, suturing, minor and medium-sized surgical procedures, and routine clinical examinations.

How does the LEDL740 differ from the LEDL700 mobile light?

The LEDL740 offers an identical 80 W power rating and 60,000 to 160,000 lux illuminance range with 95% shadowless rate, optimized for medium-output mobile surgical lighting. The LEDL700 provides a higher 98% shadowless rate with 120 W power for more demanding surgical applications.

Is the LEDL740 suitable for deep-cavity surgical procedures?

Yes. With 160,000 lux maximum illuminance, adjustable 120 to 350 mm light spot, and greater than 700 mm lighting depth, the LEDL740 provides reliable illumination for both superficial and moderately deep surgical fields.

Can the LEDL740 be moved between operating rooms?

Yes. The LEDL740 features a mobile stand with caster wheels and a multi-angle adjustable arm, allowing free positioning over treatment beds, stretchers, and operating tables in any clinical environment.

How long do the LED modules last?

The LED modules have a service life exceeding 50,000 hours, approximately 25 times longer than traditional halogen bulbs, greatly reducing maintenance and replacement costs.
