LEDB260 Wall Mounted LED Examination Light

The LEDB260 is a compact wall-mounted LED examination light providing adjustable illuminance from 40,000 to 60,000 lux for clinical examinations, minor procedures, and patient observation across hospitals, clinics, and outpatient departments. Engineered for permanent wall installation in examination rooms, emergency departments, intensive care units, and obstetric wards, this wall-mounted LED exam light delivers reliable cold-light illumination with low power consumption and an ultra-long LED service life exceeding 50,000 hours.

Key Features and Advantages

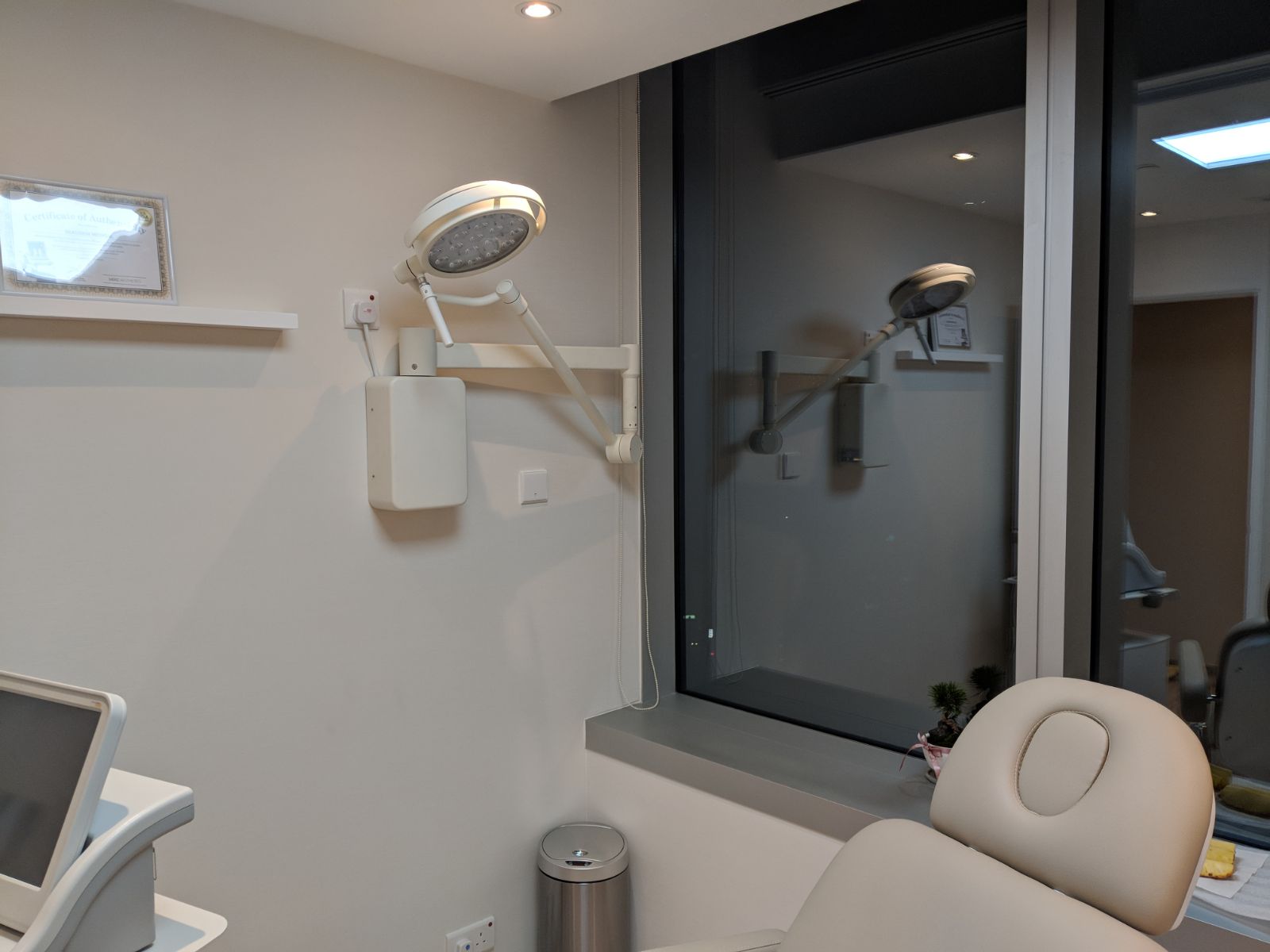

Wall-Mounted Fixed Installation: Compact wall-mounted design saves floor space and provides stable, vibration-free positioning for examination and minor procedure lighting in tight clinical environments.

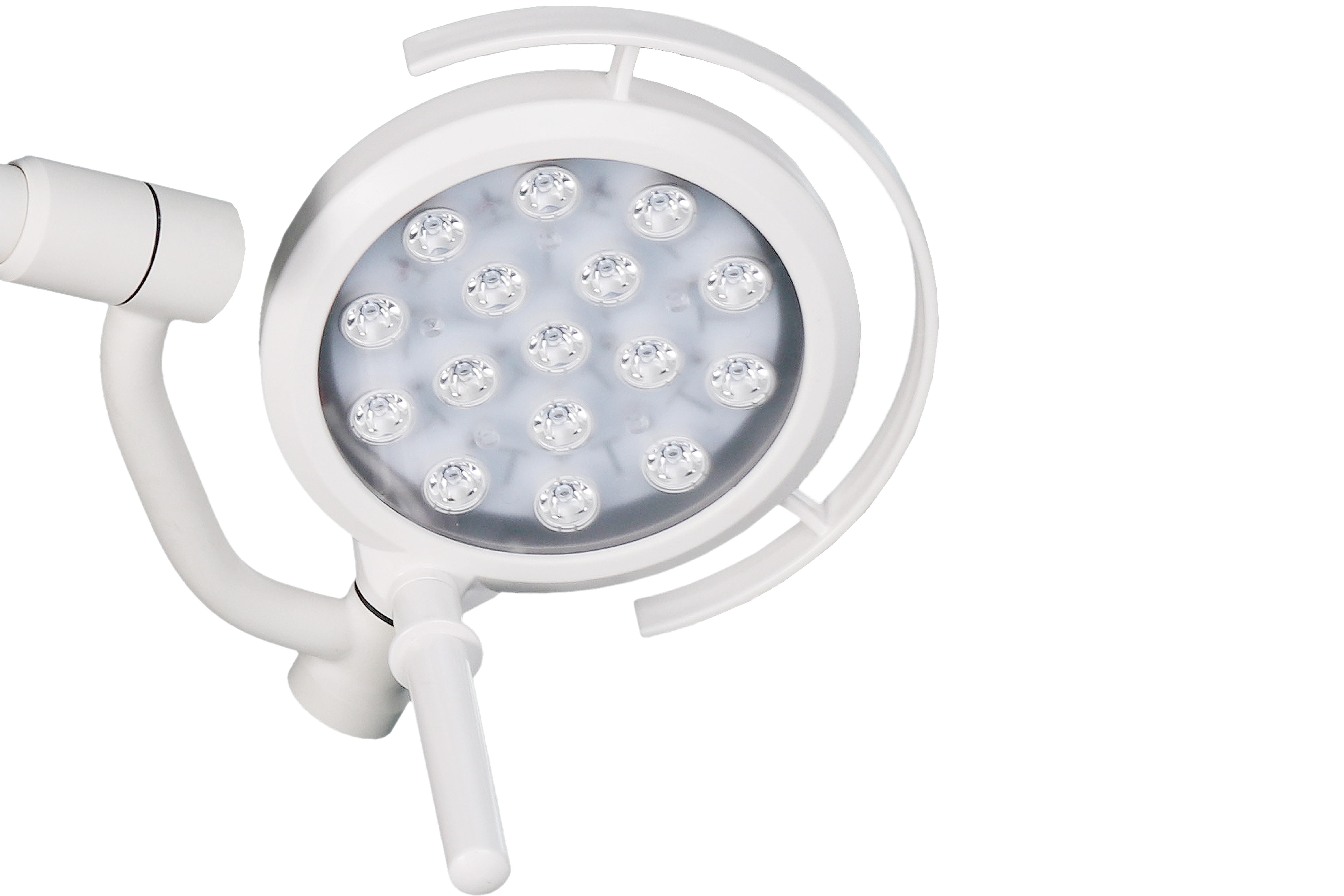

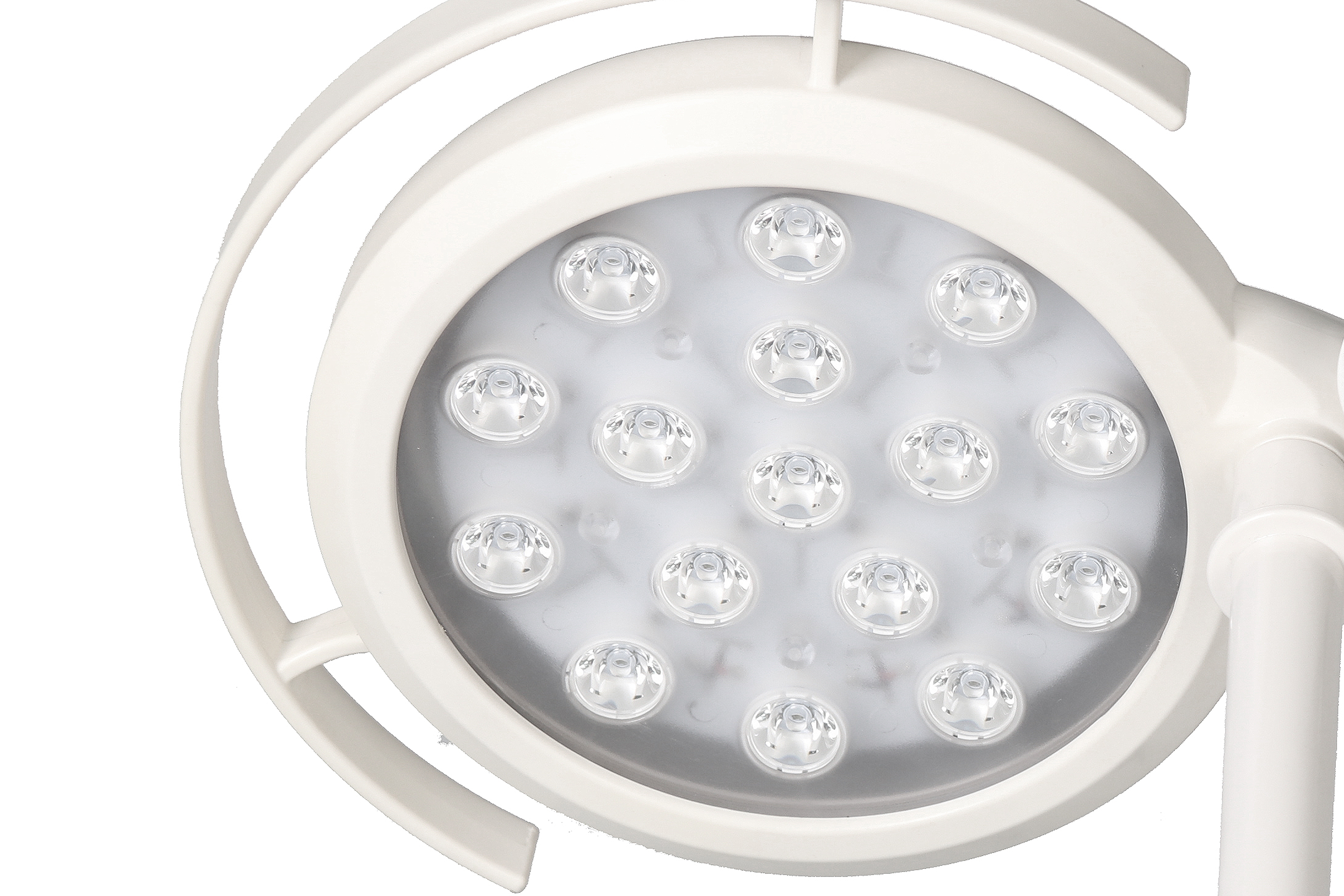

LED Cold Light Source: High-efficiency LED cold light with adjustable 40,000 to 60,000 lux illuminance and heat-to-light ratio below 3.6 mW/m²·lux, preventing tissue heating during prolonged examinations.

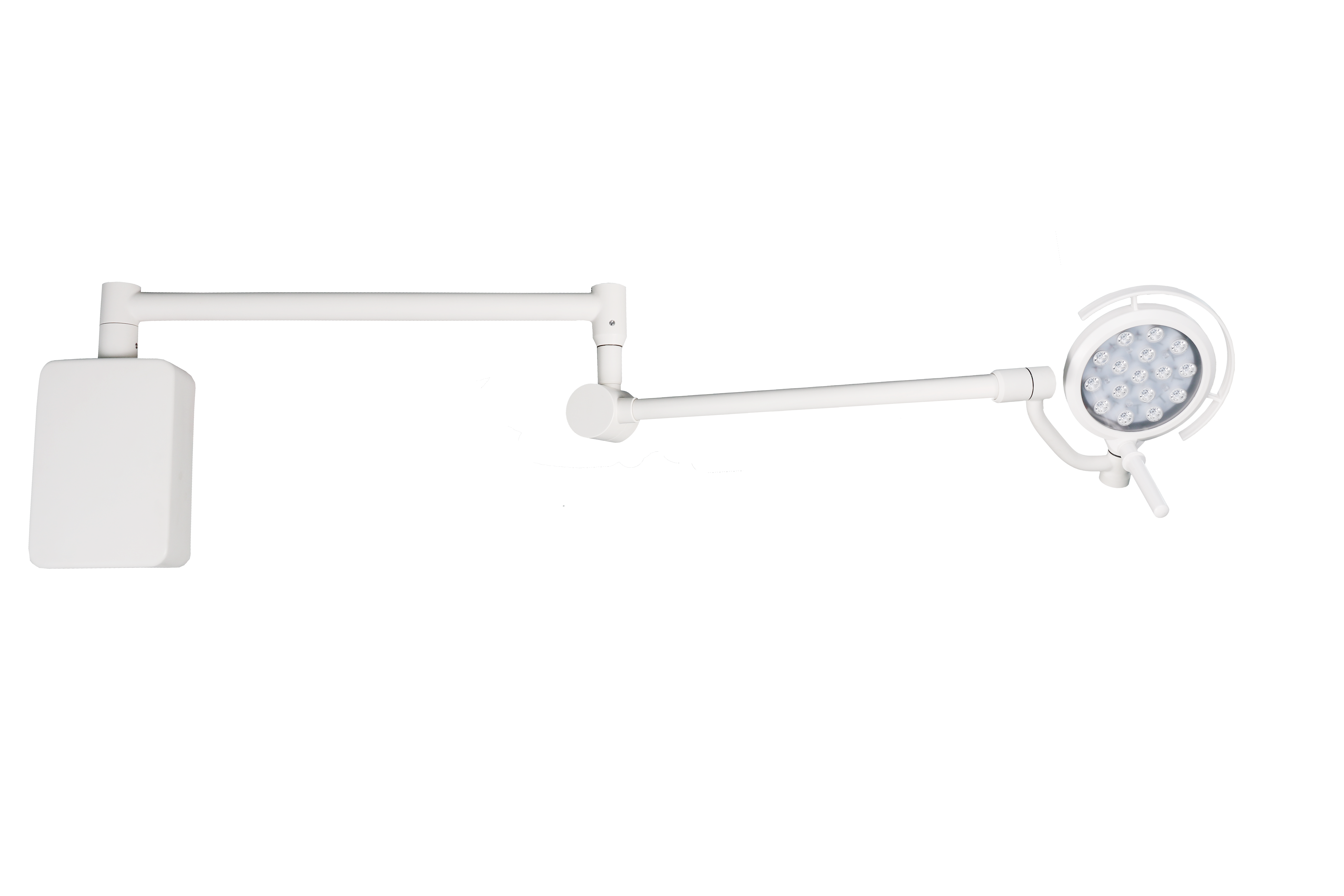

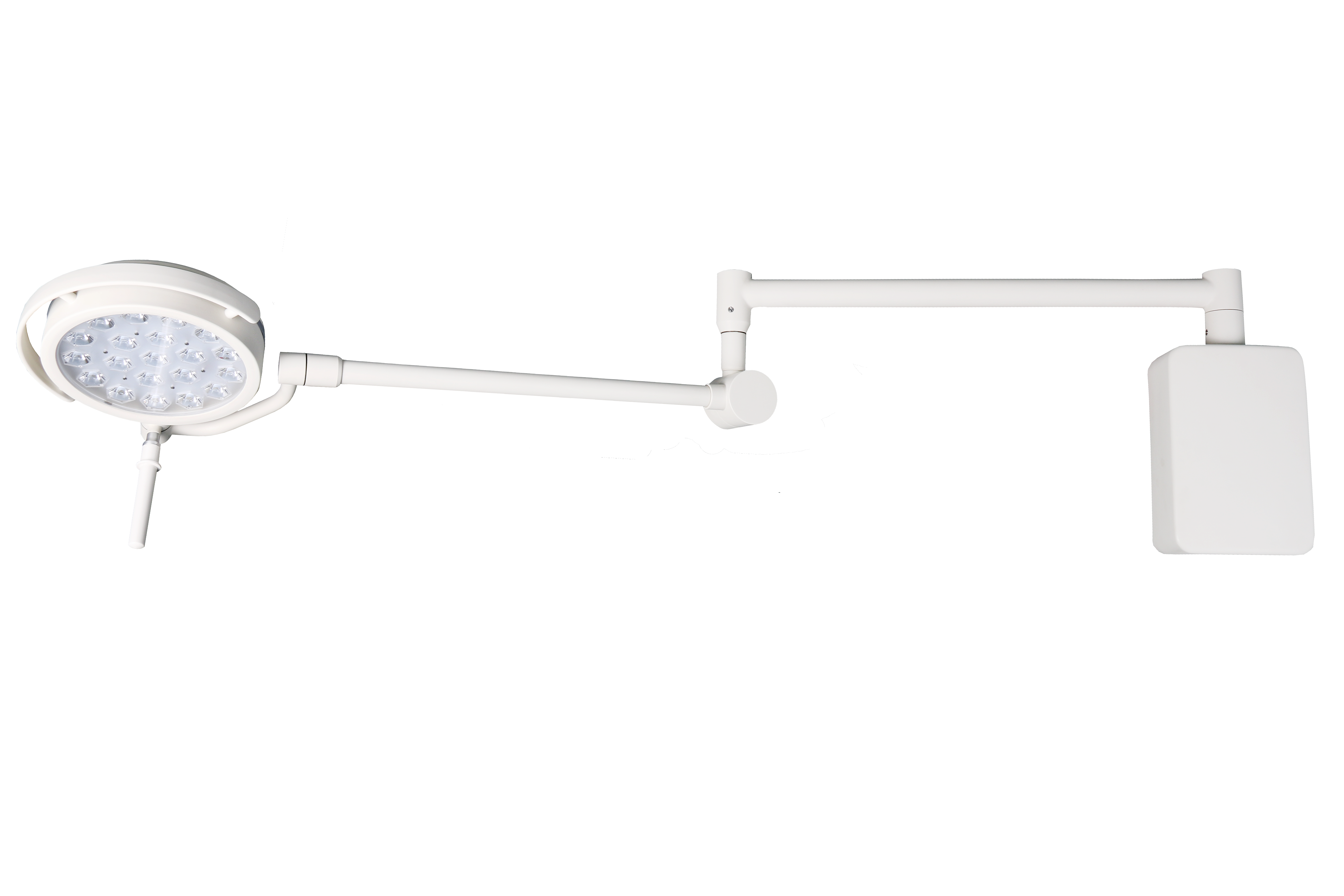

Multi-Joint Adjustable Arm: Spring-balanced multi-joint arm enables smooth vertical and horizontal positioning of the lamp head, allowing precise spot targeting across the examination field.
Stable Color Temperature: 3,500 to 5,000 K color temperature with Ra greater than 90 color rendering index reproduces accurate skin tones for clinical observation.
Wide Light Spot: 150 mm light spot diameter provides uniform illumination coverage suitable for general examinations, wound inspection, and minor procedural work.
Low Power Consumption: Just 20 W total power consumption supports energy-efficient operation and continuous clinical use with minimal electrical infrastructure demand.
Ultra-Long LED Service Life: LED service life exceeding 50,000 hours, significantly reducing lamp replacement frequency and long-term hospital maintenance expenditure.
Easy-Clean Hygienic Housing: Smooth closed lamp head structure meets standard disinfection protocols and is compatible with routine hospital-grade surface cleaning.

Clinical Applications

The LEDB260 wall mounted examination light is widely used across the following healthcare settings:

General hospital examination rooms
Outpatient clinics and primary care facilities
Emergency departments and observation units
Intensive care units and step-down wards
Obstetric and gynecological examination rooms
Pediatric clinics and ENT consultation rooms
Dressing change and minor procedure rooms
Veterinary consultation rooms

Wall Mounted Light vs. Mobile Examination Light

Compared to mobile examination lights, the LEDB260 wall-mounted configuration offers space-saving permanent installation ideal for high-traffic examination rooms where multiple patients are seen sequentially. Mobile lights provide flexible repositioning across different rooms but require storage space between uses. The LEDB260 is the preferred solution for dedicated examination rooms with predictable patient flow, while mobile LED exam lights are better suited for multi-room clinical environments or field deployments.

Versus larger wall-mounted surgical lights such as the LEDB740 or LEDB620, the LEDB260 provides lower illuminance (40,000 to 60,000 lux) optimized for non-surgical clinical examination rather than operative procedures, making it an economical and energy-efficient choice for routine clinical observation.

Technical Specifications

Model: LEDB260
Type: Wall mounted LED examination light
Illuminance: 40,000 to 60,000 lux (adjustable)
Color Temperature: 3,500 to 5,000 K
Color Rendering Index: Ra greater than 90
Heat-to-Light Ratio: less than 3.6 mW/m²·lux
Light Spot Diameter: 150 mm
Lighting Depth: greater than 500 mm
Power Consumption: 20 W
LED Service Life: greater than 50,000 hours
Installation Type: Wall mounted with multi-joint adjustable arm

Frequently Asked Questions

What clinical settings is the LEDB260 best suited for?

The LEDB260 wall mounted examination light is designed for general hospital examination rooms, outpatient clinics, primary care facilities, emergency departments, intensive care units, obstetric and gynecological examination rooms, pediatric clinics, dressing change rooms, and veterinary consultation rooms.

How does the LEDB260 differ from the LEDB740 wall-mounted surgical light?

The LEDB260 provides 40,000 to 60,000 lux illuminance for routine clinical examinations, while the LEDB740 delivers 60,000 to 150,000 lux for surgical and procedural applications. The LEDB260 is optimized for examination observation, while the LEDB740 is engineered for surgical lighting.

Is the LEDB260 suitable for surgical procedures?

The LEDB260 is primarily designed for examinations and minor procedures such as wound inspection, dressing changes, and bedside diagnostics. For surgical procedures requiring deeper illumination, the LEDB740 or ceiling-mounted LEDD series lights are recommended.

How energy efficient is the LEDB260?

The LEDB260 consumes only 20 W of power while delivering 40,000 to 60,000 lux illuminance, making it one of the most energy-efficient wall-mounted examination lights in clinical use today.
