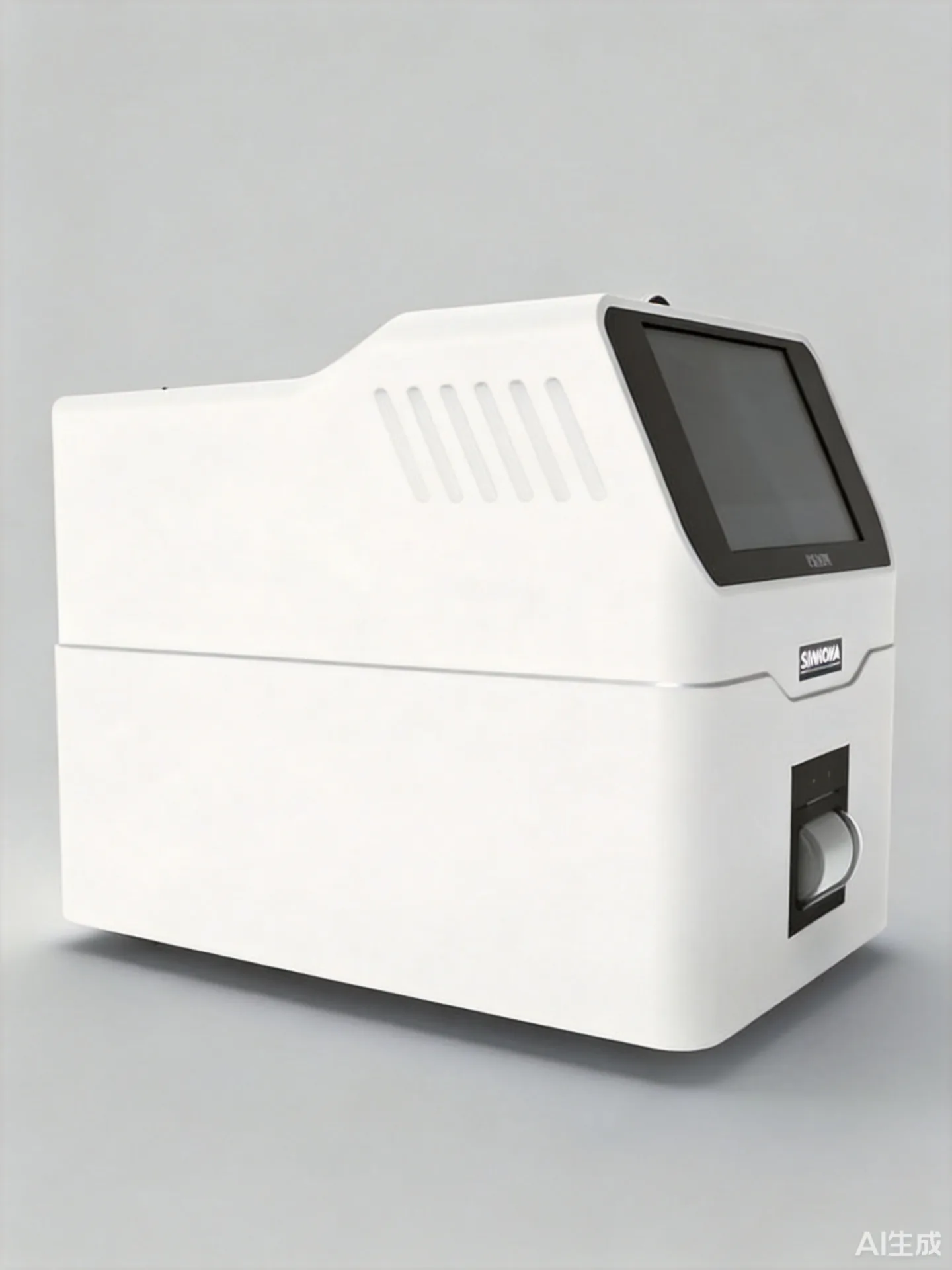

CHEMIFASTAR POCT Chemistry Analyzer

Product Overview

The CHEMIFASTAR POCT Chemistry Analyzer (Model CH-24/CH-12) is an advanced point-of-care testing (POCT) and lab analyzer that combines biochemistry, coagulation, and ion testing in one compact desktop platform. Designed for clinics, small hospitals, emergency departments, and field rescue operations, this analyzer delivers laboratory-grade accuracy with ready-to-use liquid reagent cards and a patented test design that ensures stable, repeatable results within 10-17 minutes per run.

With a built-in touch screen, automated calibration, barcode reader, and LIS/HIS connectivity, the CHEMIFASTAR eliminates the need for traditional wet-lab biochemistry analyzers while supporting up to 40 parameters per run across routine chemistry, liver function, renal function, blood lipid, glucose, ions, myocardial markers, tumor markers, immune factors, coagulation factors, alcohol, drugs, and chemical components in water/liquid samples.

Key Features & Advantages

1. Easy 3-Step Operation: Peel the sealing film, add the sample into the card, and insert the card into position. The analyzer automatically runs the test, prints or uploads reports within 10-17 minutes - no special training required.

2. More Accurate Liquid Reagent Results: Unlike dry reagent (VS) methods used in conventional chemistry analyzers, this system uses all liquid reagents with patented dual reagent stepwise reaction technology. The result: GLU repeatability CV ≤3% (vs ≤5% for dry reagents), ALT repeatability CV ≤5% (vs ≤12% for dry reagents).

3. Comprehensive Test Menu via Ready-to-Use Cards: 10 different card types available (RH-17, RT-A-22, RT-B-18, BI-11, COAG-5, COAG-7, IF-9, LF-15, KF-7, HM-A-16) covering routine biochemistry, liver function, renal function, electrolytes, blood lipids, cardiac markers, coagulation, inflammation, and special chemistries. Cards can be combined to test 1-3 cards at the same run.

4. Standard & Reference Range Consistency: Results are highly consistent with mainstream chemistry analyzers using standard and reference range protocols, ensuring easy integration into existing lab workflows.

5. Auto-Calibration & Built-in Quality Control: Mainstream standards and controls with full auto-calibration function. Auto retest out-of-range samples by auto-dilution without any additional reagent or sample. Auto-corrects hook effect in immunoturbidimetry tests.

6. Versatile Test Combinations: Both ready-to-use cards (fixed test menu) and freely selectable test menu available. Auto dilute and retest function without using any extra reagent or sample. Can test 1-3 cards at the same run with same or different samples.

7. Liquid Reagent Technology Advantages: Liquid reagent components are evenly dispersed, easily mixed, and reacted with the sample. Strong anti-interference ability through dual reagent stepwise reaction. Standardized liquid reagent reaction ensures accurate volume of sample, precise test time, and accurate reaction temperature control. Background deduction eliminates packaging tare weight interference.

8. Ultra-Low Maintenance: 2-year warranty. Compact 11.5 kg desktop form factor (D42×W27×H33 cm) requires minimal bench space and routine maintenance.

Clinical Applications

The CHEMIFASTAR POCT Chemistry Analyzer is widely deployed across multiple clinical and non-clinical settings:

• Medical Point-of-Care Testing (POCT): Rapid bedside chemistry, coagulation, and ion results in 10-17 minutes for critical decision support.
• Emergency Care & ICU: Fast turnaround for STAT liver, renal, cardiac, and coagulation panels in critical care environments.
• Clinics & Small Hospitals: Cost-effective alternative to centralized lab analyzers with full chemistry menu coverage.
• Community Health Centers: Routine biochemistry screening, pre-operative workups, and chronic disease monitoring.
• Army & Field Rescue: Portable desktop design with 24V DC power supply suitable for mobile medical units and field hospitals.
• Health Check-up Centers: High-throughput screening with auto-calibration and 1000+ test data storage capacity.
• Food & Liquid Component Testing: QC testing of chemical components in water, beverages, and food products.
• Pharmacy & Drug Testing: Alcohol, drug, and toxicology screening in workplace and clinical settings.

Comparison: POCT Single-Test Analyzer vs Central Lab Analyzer

Technical Specifications

• Model: CH-24 / CH-12
• Sample Types: Serum, plasma, urine, and any liquid sample
• Test Items: Routine biochemistry, liver function, renal function, blood lipid, glucose, ions, myocardial markers, tumor markers, immune factors, coagulation factors, alcohol, drugs, chemical components in water/liquid
• Test Methods: Kinetic, end-point, two-point, immunoturbidimetry, mono/bichromatic wave, single/dual reagent, single/multi-standards, serum blank, clotting
• Wavelength: 330-800 nm, 6 wavelengths standard, 2 filters optional
• Measuring Range: -0.1 to 3.500 O.D.
• Precision: 0.0001 O.D.
• Photometric Drift: ≤0.002 O.D.
• Auto Retest Function: Automatically retest out-of-range samples by auto-dilution without additional reagent/sample
• Throughput: 10-17 minutes per run (depends on card type)
• Carry-over: ≤0.1%
• Working Environment: Temperature 10-30°C, humidity 30-85%
• Power Supply: 24V DC
• Languages: English standard, others on request
• Data Capacity: >1000 test data, automatically saves latest 3×30 control data
• Barcode Scanner: Optional
• Communication Ports: 3×USB, 1×LAN, WLAN, LIS/HIS
• Data Output: WiFi connect to computer/external printer
• Warranty: 2 years
• Weight: 11.5 kg
• Dimension: D42 × W27 × H33 cm
• Certifications: ISO9001:2015, ISO13485:2016, CE Certified

Frequently Asked Questions (FAQ)

Q: What is the difference between POCT chemistry analyzers and traditional central lab analyzers?
A: POCT (Point-of-Care Testing) chemistry analyzers like CHEMIFASTAR deliver laboratory-grade results in 10-17 minutes at the patient bedside or in small clinics, eliminating the time and labor required to transport samples to a central lab. They use ready-to-use liquid reagent cards with patented dual-reagent stepwise reaction technology for superior repeatability (GLU CV ≤3%, ALT CV ≤5%), comparable to mainstream central lab analyzers while being far more accessible.

Q: How does liquid reagent technology compare to dry reagent chemistry analyzers?
A: Liquid reagent systems offer significant advantages over dry reagent (VS) methods: components are evenly dispersed for better mixing and reaction, strong anti-interference ability through dual reagent stepwise reaction, standardized volume and precise temperature control, and background deduction eliminates packaging tare weight interference. In comparative CV studies (China standards YY/T 0655-2024, YY/T 1200-2024), liquid reagents show GLU CV of ≤3% vs ≤5% for dry reagents, and ALT CV of ≤5% vs ≤12% for dry reagents.

Q: What types of tests can the CHEMIFASTAR POCT analyzer perform?
A: The CHEMIFASTAR supports 40+ parameters via 10 ready-to-use card types: routine biochemistry (GLU, TP, ALB, TBIL, etc.), liver function (ALT, AST, GGT, ALP, DBIL), renal function (Urea, Crea, UA, Cys-c), blood lipids (TG, CHO, HDL-C, LDL-C), electrolytes (Na, K, Cl, CO2, Ca, P, Mg), cardiac markers (CK, CKMB, HBDH, MYO), coagulation (PT, APTT, TT, FIB, D-Dimer, FDP), inflammation (CRP, ASO, RF, SAA, PCT), and immune factors. Up to 3 cards can be run simultaneously with same or different samples.

Q: Is the CHEMIFASTAR analyzer suitable for emergency and field rescue operations?
A: Yes, the CHEMIFASTAR is ideal for emergency care, ICU, community health centers, army field hospitals, and rescue operations. Its compact 11.5 kg desktop form factor (D42×W27×H33 cm), 24V DC power supply, 10-17 minute result time, easy 3-step operation, and full biochemistry/coagulation/ion menu make it perfectly suited for rapid point-of-care decision support outside traditional lab environments.
