TDY-Y-2 Electro-Hydraulic Operating Table Under Clinical Evaluation at Saraphi Hospital, Chiang Mai, Thailand
Chiang Mai, Thailand — August 18, 2026. RedSunMediZone, a specialist manufacturer of high-end surgical equipment, confirms that its TDY-Y-2 Electro-Hydraulic Multifunctional Operating Table is currently undergoing on-site clinical evaluation at Saraphi Hospital (also known as Sarapee Hospital) in Saraphi District, Chiang Mai Province, Thailand. The table is being assessed against the hospital's multi-disciplinary surgical workflow before final procurement.
About Saraphi Hospital
Saraphi Hospital (Thai: โรงพยาบาลสารภี, also romanised as Sarapee Hospital) is a government community hospital serving the Saraphi District on the southern outskirts of Chiang Mai, the largest city in northern Thailand. Founded in 1968 on land leased from the Department of Religion, it was opened to the public on 4 March 1975 and has grown from a small 10-bed community facility into a 60-bed hospital serving one of the most populated peri-urban districts of Chiang Mai Province.
The hospital is officially accredited by the Healthcare Accreditation Institute (HA) of Thailand and currently holds an active Re-accreditation Level 3 certificate, with the most recent RS Re-accreditation Survey valid through January 2028 — a testament to its sustained compliance with national clinical and operational standards.
Saraphi Hospital provides a full range of general medical, emergency and surgical services to a catchment area that includes the Saraphi District itself and surrounding sub-districts of Chiang Mai and Lamphun provinces. Its operating theatres handle a growing volume of general surgery, orthopaedic trauma, obstetrics and gynaecology, ENT and urology cases — exactly the case mix for which the TDY-Y-2 multifunctional operating table was engineered.
Why the TDY-Y-2 Operating Table Was Selected for Evaluation
The TDY-Y-2 was shortlisted by the Saraphi Hospital surgical committee because it consolidates the functions of multiple specialty tables into a single platform — a key requirement for community hospitals that must serve a broad surgical case mix without the budget for a dedicated table per discipline.
Its core specifications evaluated by the hospital include:
- Mature electro-hydraulic drive with dual control — a wired 5-metre handheld remote plus an optional column-mounted panel for bedside operation.
- Trendelenburg / reverse-Trendelenburg ≥ 30° and lateral tilt ≥ 20°, covering the position requirements of general surgery, gynaecology, laparoscopy and orthopaedics.
- Back plate that adjusts from ≥ 90° upward to ≥ 40° downward, with a fully detachable head plate for neurosurgical and ENT access.
- Split leg plates with independent adjustment for urology, anorectal and lithotomy positioning.
- Kidney bridge lift ≥ 100 mm for renal and upper-retroperitoneal access.
- Horizontal sliding ≥ 350 mm with an X-ray perspective area of ≥ 1400 × 430 mm for intra-operative C-arm fluoroscopy.
- Standard safe working load of 135 kg and a maximum allowable load of 350 kg, supporting overweight patients and heavy accessory configurations.
- Built-in 24V DC backup from two DJW12-7.0 lead-acid batteries for uninterrupted operation during local power outages.
- IPX4 splash-proof rating for safe disinfection in tropical operating-room environments.
- 10-year service life backed by 304 stainless-steel construction, QT450-10 cast lifting column and Q235 steel base.
The complete specifications are listed on the official product page: TDY-Y-2 Electro-Hydraulic Multifunctional Operating Table.
On-Site Clinical Assessment

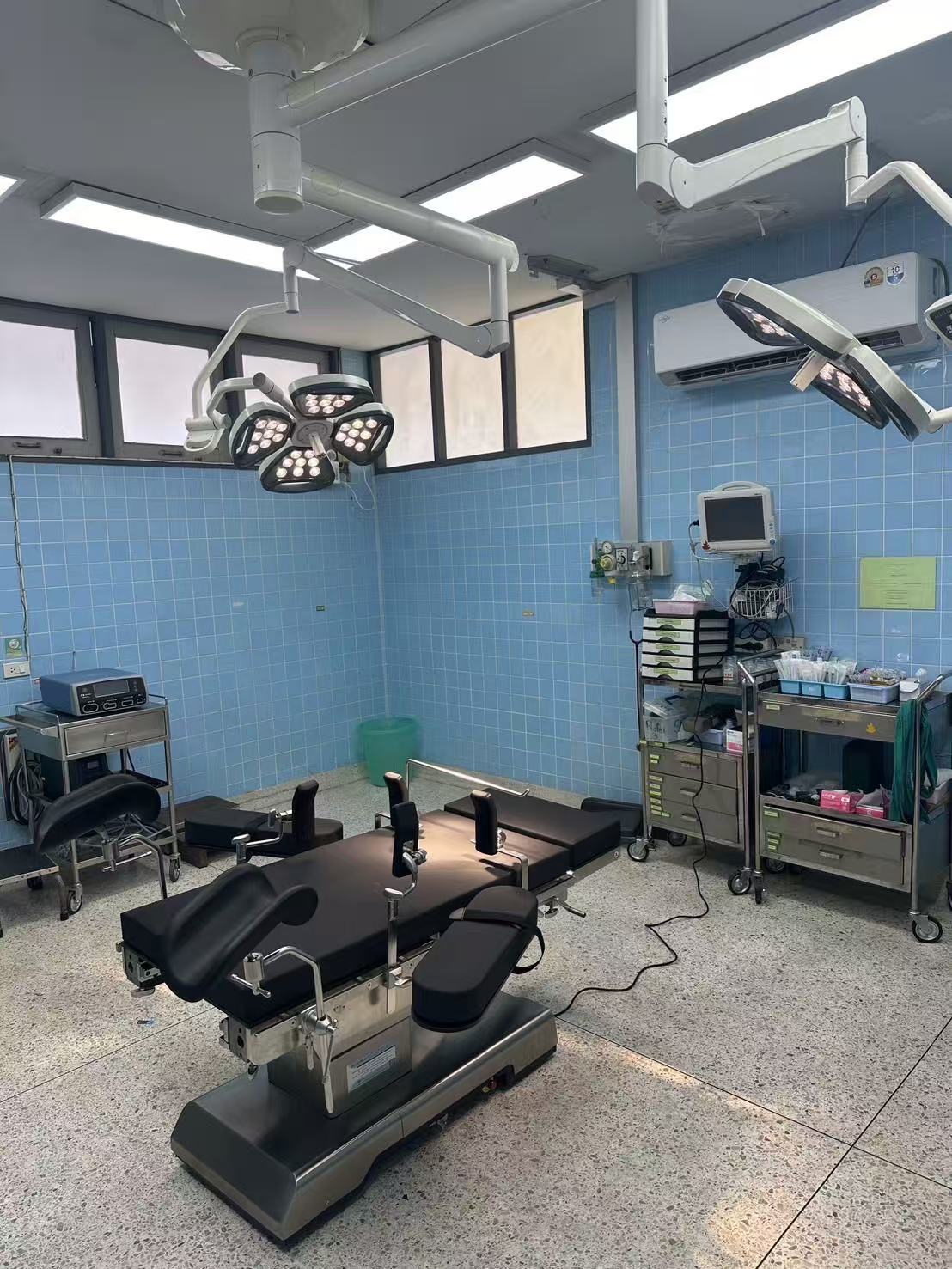

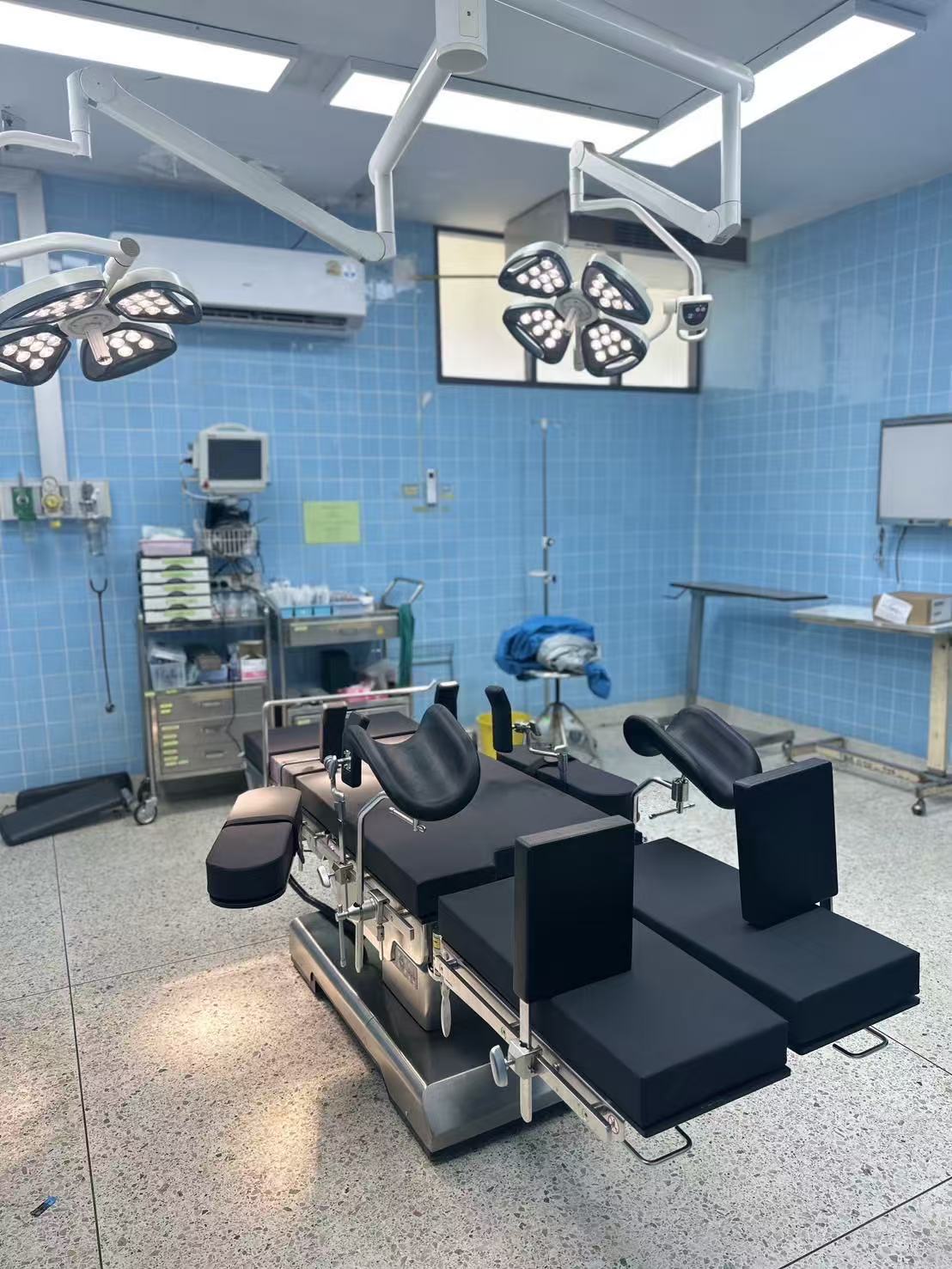

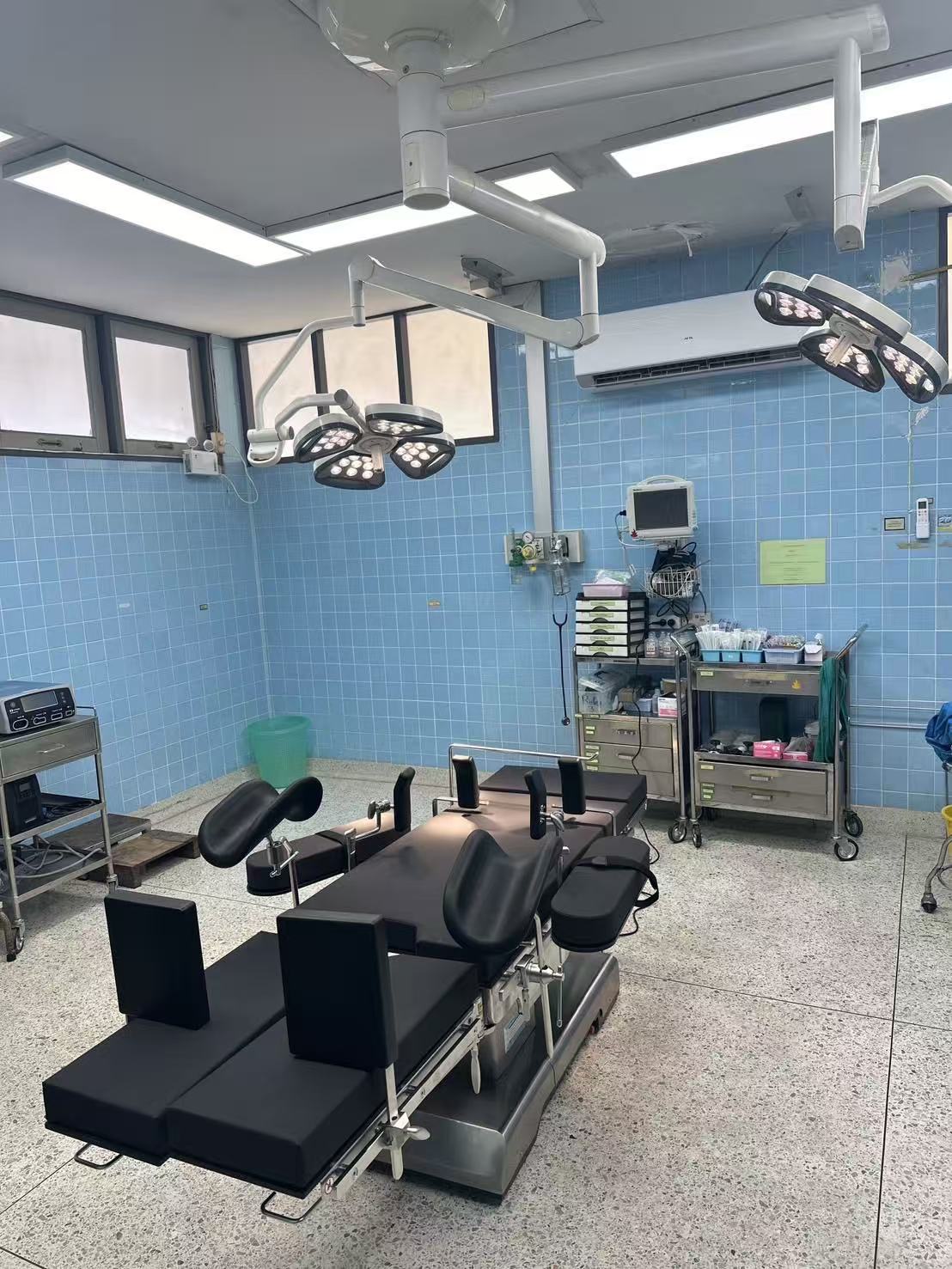

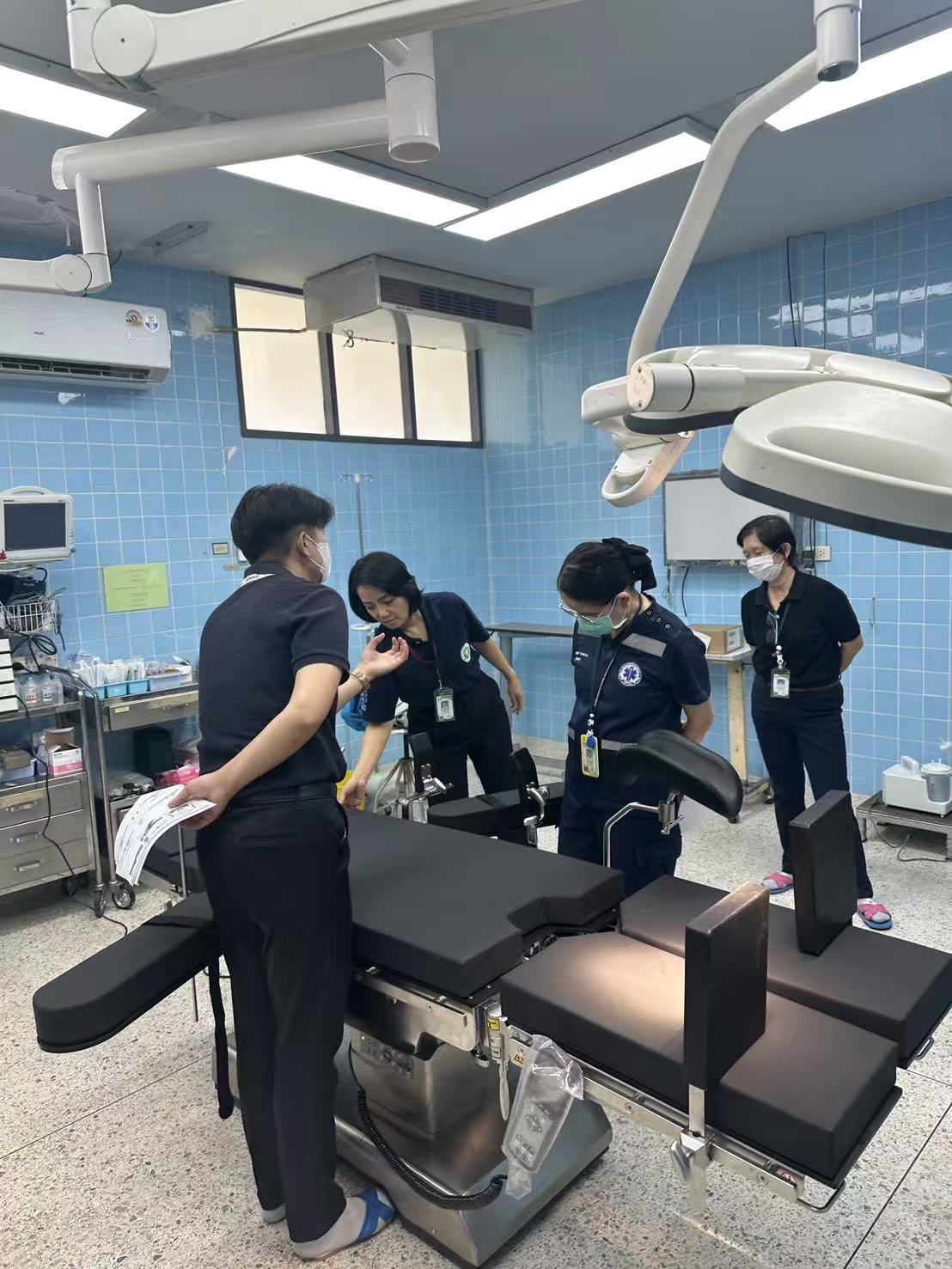

During the on-site evaluation, the RedSunMediZone application team walked the Saraphi Hospital surgical staff through the full range of TDY-Y-2 motions — Trendelenburg tilt, lateral tilt, back-plate flexion, kidney-bridge elevation and longitudinal sliding for C-arm compatibility — while the team validated the dual control system and the emergency DC backup in front of the OR supervisors.
"For a community hospital running six to eight different surgical specialties per week, we need one platform we trust across the whole schedule. The TDY-Y-2 gave us the load capacity, the C-arm clearance and the backup power we have been looking for." — Saraphi Hospital Operating Theatre Supervisor (translated).
Particular attention was paid to two features that matter most in Thai community-hospital operating rooms: the table's ability to maintain full articulation during a power outage via its 24V DC battery pack, and the ≥ 350 mm horizontal sliding, which gives the hospital's existing C-arm enough working clearance for orthopaedic trauma cases without repositioning the patient.
Clinical Applications in a Thai Community Hospital
Once installed, the TDY-Y-2 is expected to support the full breadth of Saraphi Hospital's surgical workload, including:
- General & abdominal surgery — hernia repair, appendectomy, cholecystectomy with kidney-bridge elevation and flex / reflex positioning.
- Gynaecology — hysterectomy and laparoscopic procedures using Trendelenburg and split leg plates.
- Orthopaedics — fracture fixation and joint procedures using C-arm fluoroscopy, enabled by the ≥ 350 mm horizontal sliding.
- Urology & anorectal surgery — lithotomy positioning with independent leg-plate control.
- Emergency trauma — rapid multi-position setup for polytrauma cases, supported by the 350 kg maximum load.
Technical Specifications at a Glance
| Parameter | Value |
|---|---|
| Model | TDY-Y-2 Electro-Hydraulic Multifunctional Operating Table |
| Tabletop length | ≥ 2000 mm |
| Tabletop width | 550 ± 20 mm (rails excluded) |
| Minimum tabletop height | 595 ± 50 mm |
| Lifting stroke | ≥ 350 mm |
| Safe working load / Max load | 135 kg / 350 kg |
| Trendelenburg / reverse-Trendelenburg | ≥ 30° |
| Lateral tilt | ≥ 20° |
| Back plate | Up ≥ 90°, down ≥ 40° |
| Head plate | Up ≥ 60°, down ≥ 90°, fully detachable |
| Leg plates | Up ≥ 30°, down ≥ 90°, outward ≥ 90° |
| Kidney bridge lift | ≥ 100 mm |
| Horizontal sliding (C-arm) | ≥ 350 mm |
| X-ray perspective area | ≥ 1400 × 430 mm |
| Power supply | AC 220 V ± 10 %, 50 Hz; compatible with 110 V |
| DC backup | 2 × 12 V lead-acid batteries (24 V total) |
| Input power | 500 VA |
| IP rating | IPX4 splash-proof |
| Gross / net weight | 370 kg / 320 kg |
| Service life | 10 years |
About the TDY-Y-2 — full product page:
Visit the official product listing for detailed CAD drawings, accessory lists, the comparison table against the TDY-2 and TDY-Y-2 Special Version, and the latest quotation request form:
https://www.redsunmedizone.com/products/26/
Frequently Asked Questions
Q: What is the TDY-Y-2 operating table?
A: The TDY-Y-2 is a Class I Type B electro-hydraulic multifunctional operating table made by RedSunMediZone. It features a 304 stainless-steel tabletop, dual control system, ≥ 30° Trendelenburg tilt, ≥ 20° lateral tilt, a 350 kg maximum load and a 24V DC battery backup, with a 10-year service life.
Q: Where is Saraphi Hospital located?
A: Saraphi Hospital (Sarapee Hospital) is a 60-bed community hospital at 147 Moo 3, Chiangmai–Lumphun Road, Saraphi District, Chiang Mai 50140, Thailand. It is HA-accredited and serves the southern suburbs of Chiang Mai.
Q: Why is the TDY-Y-2 well suited to Thai community hospitals?
A: It covers the full range of complex surgical disciplines on a single platform, supports overweight patients (350 kg max), runs uninterrupted on its 24V DC battery backup through local power fluctuations, and is fully C-arm compatible thanks to ≥ 350 mm horizontal sliding and a large X-ray perspective area.
Q: Is the TDY-Y-2 suitable for C-arm intra-operative imaging?
A: Yes. The ≥ 350 mm longitudinal sliding and ≥ 1400 × 430 mm X-ray perspective area allow full-body intra-operative fluoroscopy without repositioning the patient, supporting orthopaedic trauma, spinal and general surgery cases that require real-time imaging.
