Universal Limb Support Bracket | Operating Table Accessories for Arm & Leg Positioning — 360° Adjustable Side-Rail Mounted Arm Board and Leg Holder, 304 Stainless Steel Frame

Universal Limb Support Bracket — 360° Adjustable Operating Table Accessory for Upper and Lower Limb Positioning on Side Rails

Product Title

Universal Limb Support Bracket | Operating Table Accessories for Arm and Leg Positioning | 360° Free Adjustment with No Dead Angles | One-Touch Locking Side-Rail Mounted Arm Board and Leg Holder | 304 Stainless Steel Frame, Phenolic Resin Support Board and High-Elasticity Foam Cushion | 10 kg Load Capacity | Fits 25 × 10 mm Operating Table Side Rails

Product Overview

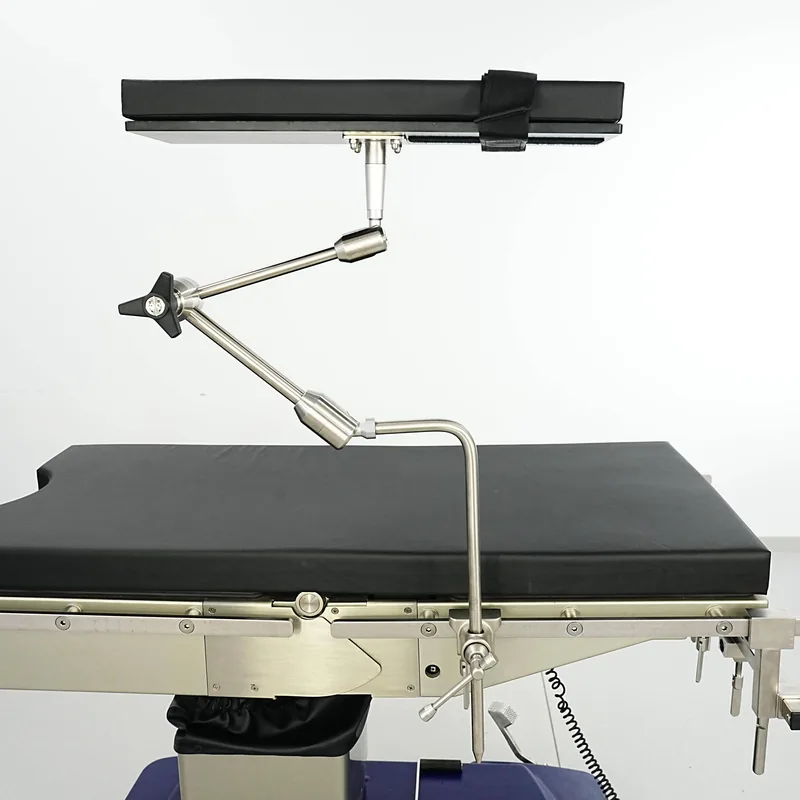

The Universal Limb Support Bracket is a mechanical operating table accessory engineered for the auxiliary support and positioning of the patient's upper and lower limbs during surgical and interventional procedures. It mounts to the operating table side rail on either side of the table through a locking fastener, and provides 360° free adjustment with no dead angles — allowing the surgical team to place a limb in the exact angle, height and position the procedure requires, then hold it there with a single one-touch lock.

The main frame is fabricated from 304 stainless steel, selected for corrosion resistance against repeated chemical disinfection and for the structural rigidity needed to hold a limb stable without drift. The support board is a phenolic resin board, a dense, dimensionally stable composite that resists warping and moisture uptake while remaining light enough for one-handed repositioning. The patient-contact surface is a high-elasticity foam cushion that spreads pressure across the limb, reducing the risk of focal compression injury and nerve impingement during longer cases. Fixation straps secure the limb to the cushion so it cannot migrate when the table is tilted or rotated.

Because the bracket mounts on a standard 25 × 10 mm operating table side rail, it integrates with the existing rail infrastructure of most operating table brands without proprietary adapters — making it a practical addition to mixed-fleet operating theatres and a natural companion to arm boards, leg holders, stirrup leg frames and other operating table accessories.

Key Features & Clinical Advantages

• 360° free adjustment with no dead angles — The bracket adjustment section rotates through a complete circle without locked-out sectors, so the limb can be positioned at any angle the surgical approach demands. For procedures requiring a specific arm abduction, shoulder rotation or leg elevation, the full-circle adjustment removes the compromise imposed by bracketed or stepped-positioning designs.

• One-touch locking for rapid, reproducible positioning — Positioning is performed by adjusting the rotating handle to the required intraoperative angle and then locking the assembly. The one-touch mechanism means the sterile field does not need to be disturbed for repeated small adjustments, and it allows a limb to be repositioned and re-locked quickly during procedures where the surgical approach changes mid-case.

• Excellent overall rigidity with stable, reliable clamping — The combination of a 304 stainless steel frame, a phenolic resin support board and a positive-locking side-rail fastener produces a rigid assembly that resists flex and vibration under load. Stability is the prerequisite for accurate limb positioning, and it directly reduces the risk of intraoperative drift.

• 304 stainless steel main frame — The structural frame resists oxidation and corrosion from repeated 75 % alcohol disinfection, maintains its mechanical properties over a long service life, and presents a cleanable, non-porous surface that supports effective infection control.

• Phenolic resin support board — The limb-carrying board is a thermoset phenolic composite chosen for high dimensional stability and low moisture absorption, so the support surface does not swell, warp or soften under repeated cleaning or long-term exposure to operating-theatre humidity.

• High-elasticity foam cushion, detachable for cleaning — The patient-contact cushion is a high-elasticity foam that conforms under limb weight to distribute pressure over a wider area. It detaches from the board so it can be cleaned separately, which is essential because the cushion is the primary patient-contact surface and requires different handling from the metal parts.

• Fixation straps for reliable limb retention — The straps hold the limb firmly against the cushion. Moderate strap tension secures the limb without excessive compression, and the straps can be opened and re-closed throughout the case as the surgical field changes.

• Height-adjustable and side-selectable mounting — The bracket's fixing upright rod is inserted into the fastener and set to the height the procedure requires before the fastener is tightened. The device can be mounted on either side of the operating table, so the same unit can serve left- or right-sided limb support depending on the case.

• 10 kg load capacity — The stated minimum load capacity is 10 kg, which covers upper- and lower-limb support for the adult patient population across the intended use. This figure must not be exceeded.

Technical Specifications

Structure and Components

The bracket comprises five components. The numbers correspond to the callouts in the product illustration.

• 1 — Bracket adjustment section. The adjustable part of the bracket that provides the 360° range of movement.

• 2 — Phenolic resin board. Support board that carries the limb.

• 3 — Foam cushion. High-elasticity foam; the patient-contact surface.

• 4 — Fixation straps. Strap that holds the limb in place on the cushion.

• 5 — Fastener. Hooks onto the operating table side rail and receives the bracket's fixing upright rod.

Installation and Operating Instructions

Fix the bracket to the table. Insert the bracket's fixing upright rod into the hole in the fastener. Adjust to the height required for the procedure, then tighten the fastener so that the Universal Limb Support Bracket is fixed on the operating table.

Position the limb. Adjust the rotating handle to obtain the angle and position required during the procedure. Open the fixation straps, place the patient's upper or lower limb on the foam cushion so that the limb is supported, then tighten the straps moderately to secure it.

Re-confirm before surgery. Immediately before surgery, confirm again that every part of the Universal Limb Support Bracket is securely locked. Only when this has been confirmed may the next step be carried out. This pre-operative check is mandatory and is not optional.

Load limit 10 kg. Never exceed the stated minimum load capacity of the device.

Cleaning and Disinfection

The device is cleaned and disinfected by hand after each use.

Metal parts. Wipe blood off the metal parts with sterile gauze. Spray 75 % alcohol onto the surfaces that come into contact with the patient's skin. Wipe the non-contact surfaces with a cloth moistened with clean water. Do not soak the metal parts — immersion causes oxidation of the aluminium components.

Foam cushion. The foam cushion is detachable. Detach it from the board, soak it in multi-enzyme cleaning solution at a 1:200 dilution for 10 minutes, then knead and squeeze it under running water until no secretion residue remains. Do not wring the cushion forcefully — wringing tears the foam.

Clinical Applications

• Upper-limb support during general and open surgery — Supports and holds the patient's arm in abduction or extension so the arm is off the surgical field yet securely positioned for the duration of the case.

• Intravenous and arterial access lines — Maintaining the arm in a stable, supported position helps protect peripheral IV and arterial line placement from dislodgement during long procedures.

• Orthopaedic and trauma surgery — Provides stable limb support for procedures that require the extremity to be held at a specific angle while instrumentation, reduction or fixation is performed.

• Lower-limb procedures under regional anaesthesia — Supports the leg in the position required for the approach, freeing the surgical team's hands during the procedure.

• Hand and microsurgery — Holds the arm steady at the precise angle and height the surgeon requires for fine work under magnification, where limb drift would compromise the surgical field.

• Laparoscopic and robotic-assisted surgery — Positions and holds the arm clear of trocar and instrument trajectories while keeping the limb supported rather than unsupported at the table edge.

• Endoscopy and ENT procedures — Keeps the patient's arm safely supported and out of the working area around the head and upper airway.

• Obstetric and gynaecological surgery — Supports the limbs in the positions the procedure requires, alongside stirrup leg frames and other positioning accessories.

• Prolonged procedures in vulnerable patients — Pressure-distributing foam cushioning and reliable limb retention reduce the risk of positional nerve injury and pressure damage during long operations, including in elderly and paediatric patients.

Frequently Asked Questions

Q: What is a universal limb support bracket used for?

A: It is an operating table accessory used for the auxiliary support and positioning of the patient's upper and lower limbs during treatment. It holds an arm or leg securely at the angle, height and position the procedure requires, so the limb is supported rather than left unsupported at the table edge.

Q: Which operating tables is this limb support bracket compatible with?

A: The bracket mounts to an operating table side rail of the 25 mm × 10 mm profile, which is the standard rail dimension on most operating table brands. It can be mounted on either side of the table.

Q: How much weight can the bracket support?

A: The stated load capacity is 10 kg minimum. This capacity must never be exceeded — it is a hard limit stated in the manufacturer's instructions, not a guideline.

Q: How much adjustment range does the bracket provide?

A: The bracket adjustment section provides 360° free adjustment with no dead angles, together with height adjustment and position adjustment via the rotating handle. Locking is by a one-touch mechanism for quick positioning.

Q: What materials is the bracket made from?

A: The main frame is 304 stainless steel, the support board is a phenolic resin board, and the patient-contact surface is a high-elasticity foam cushion retained by fixation straps.

Q: Can the foam cushion be removed for cleaning?

A: Yes. The foam cushion is detachable. It is soaked in multi-enzyme cleaning solution at a 1:200 dilution for 10 minutes and then kneaded and squeezed under running water until no secretion residue remains. It must not be wrung forcefully, because wringing tears the foam.

Q: How are the metal parts cleaned?

A: Blood is wiped off with sterile gauze, 75 % alcohol is sprayed onto the skin-contact surfaces, and the non-contact surfaces are wiped with a cloth moistened with clean water. The metal parts must not be soaked, because immersion causes oxidation of the aluminium components.

Q: What is the service life of the bracket?

A: The service life is 10 years.
