Stainless Steel & Carbon Fiber Surgical Accessory Trolleys, Extension Boards, X-Ray Cassette Holders & Prone-Position Hand Supports — OR Storage, Spinal Imaging & Prone Surgery Solutions
Product Title
Surgical Accessories Trolley, Carbon Fiber Extension Board, X-Ray Cassette Holder & Prone Position Hand Support | 304 Stainless Steel and Carbon Fiber Operating Table Accessories | Universal Compatibility for Spinal Imaging and Prone Surgery
Product Overview
This versatile range of surgical accessory trolleys, carbon fiber extension boards, X-ray cassette holders, and prone-position hand supports addresses essential but often-overlooked needs in the modern operating room — organized instrument storage and transport, radiolucent table extension for spinal and cervical imaging, film cassette fixation for intraoperative radiography, and stable upper-limb support during prone procedures. Each accessory is engineered from either 304 stainless steel or high-strength carbon fiber, delivering the durability, corrosion resistance, and radiolucency demanded by today's image-guided surgical workflows.
All models in the range are designed for universal compatibility with any brand of operating table, fitting standard side rails, base plate holes, and floor-mounted interfaces without proprietary adapters. Whether the surgical team needs a mobile trolley to keep instruments organized and within reach, a carbon fiber extension board to lengthen the table surface for full-spine imaging, a cassette holder for intraoperative X-ray acquisition, or a prone-position hand support that keeps the upper limbs secure and accessible throughout a lengthy spinal procedure, this product family provides a single-source solution that integrates seamlessly into any OT environment.
Key Features & Clinical Advantages
304 stainless steel and carbon fiber construction — Structural components are fabricated from medical-grade 304 stainless steel for corrosion resistance and autoclave compatibility, while extension boards are built from high-strength carbon fiber for maximum rigidity with minimum weight and full radiolucency.
Universal operating table compatibility — Every accessory in the range mounts to standard side-rail operating tables, base plate holes, or floor interfaces from any manufacturer, eliminating the need for brand-specific adapters and simplifying procurement for multi-brand hospital environments.
Full C-arm and X-ray transparency (carbon fiber models) — The carbon fiber extension boards deliver complete radiolucency with zero image artifact, enabling intraoperative fluoroscopy and plain radiograph acquisition of the spine, cervical region, and extremities without removing or repositioning the board.
Mobile storage with silent brake casters — The accessories trolleys are equipped with four universal silent brake wheels that allow smooth, quiet transport through the operating room and corridors, then lock firmly in place during use — keeping instruments, consumables, and positioning devices organized and within arm's reach without cluttering the surgical field.
Height-adjustable support poles — Select models feature telescoping poles with precise lifting adjustment, allowing the support surface to be positioned at the optimal height for each patient's anatomy and each surgeon's ergonomic preference.
Multiple mounting configurations (extension boards) — Carbon fiber extension boards are available in side-rail type, foot-plate hole type, and hook type configurations, as well as a heavy-duty floor-support variant, ensuring a proper fit regardless of the operating table's rail geometry or the surgical procedure's load requirements.
Model Variants & Specifications
Elbow & Wrist Supports
FP-049-A1 — Elbow Support

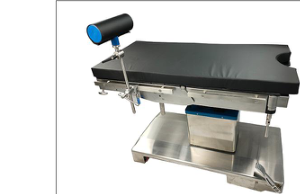

A height-adjustable elbow support built on a 16 mm diameter pole with a lifting range of 0–350 mm, providing precise vertical positioning of the patient's elbow during upper-limb surgery, microsurgical procedures, and nerve conduction studies. The telescoping pole allows the support surface to be set at the exact height needed to maintain the elbow in a neutral, comfortable position — reducing ulnar nerve compression risk during prolonged procedures. The 16 mm pole provides sufficient rigidity to prevent deflection under the weight of the forearm while remaining compact enough to avoid interfering with the surgical field.
FP-050-A1 — Wrist Retractor
Constructed from 304 stainless steel and equipped with a finger sleeve for secure hand fixation, this wrist retractor is designed for wrist traction and hand surgery procedures. The finger sleeve holds the patient's hand in a stable, extended position while the retractor applies controlled traction force to the wrist — essential for distal radius fracture reduction, carpal tunnel release, wrist arthroscopy, and tendon repair. The stainless steel construction withstands repeated sterilization, and the universal fixator ensures compatibility with any standard operating table side rail.
Accessories Trolleys

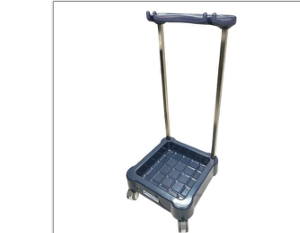

FP-051-A1 — Accessories Trolley
A 304 stainless steel mobile storage trolley with a 600 × 600 mm base and a total height of 1250 mm, providing generous vertical storage space for surgical instruments, positioning accessories, and consumables. The trolley is equipped with four universal silent brake wheels that enable smooth, quiet movement through the operating room and hospital corridors, then lock firmly in place once the trolley is positioned. The stainless steel construction is fully compatible with standard OR disinfection protocols, and the open-shelf design provides visual access to stored items without requiring the surgical team to search through enclosed compartments.
FP-051-B1 — Accessories Trolley
A compact variant with an 800 × 500 mm base and a trolley height of 1000 mm, designed for operating rooms where floor space is at a premium or where a lower-profile storage solution is preferred. The rectangular base footprint fits neatly alongside the operating table without encroaching on the surgical team's working area, while still providing ample storage capacity for case-specific instruments and accessories. Like the FP-051-A1, this model features four universal silent brake wheels for mobile, lockable storage.
FP-051-C1 — Accessories Trolley / Stirrup Leg Frame Trolley
A specialized trolley measuring 1000 × 400 × 480 mm with four universal silent brake wheels, designed specifically for storing and transporting stirrup leg frames and other elongated positioning accessories between cases. The elongated, low-profile shape accommodates the length of stirrup arms, leg racks, and traction rods that would not fit on a standard square-base trolley, keeping these bulky accessories organized, protected, and ready for rapid deployment. The low height of 480 mm allows the trolley to be stored under the operating table or against a wall when not in use, minimizing clutter in the operating room.
Carbon Fiber Extension Boards
FP-052-A1 / FP-052-A2 — Carbon Fiber Extension Board (Side-Rail Type / Foot-Plate Hole Type)

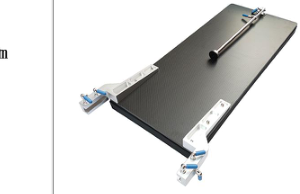

A radiolucent carbon fiber extension board measuring 600 × 1200 mm with a 12 mm thickness, available in two mounting configurations — side-rail type (FP-052-A1) for attachment to the operating table's side rail, and foot-plate hole type (FP-052-A2) for insertion into the foot-plate mounting holes. The extension board lengthens the back or seat plate of the operating table, providing additional support surface for the patient's head, shoulders, or feet during spinal and cervical surgery. The carbon fiber construction delivers full X-ray and C-arm transparency, enabling intraoperative imaging of the extended anatomical region without removing the board — critical for verifying spinal alignment, implant position, and fracture reduction across the entire length of the operative field.
FP-052-B1 — Carbon Fiber Extension Board (Hook Type)
Shares the same 600 × 1200 mm dimensions and 12 mm carbon fiber construction as the FP-052-A series but features a hook-type mounting mechanism that attaches directly to the operating table edge via integrated hooks. This configuration is ideal for operating tables where side-rail or foot-plate hole mounting is not feasible, providing a quick-attach solution that can be deployed and removed in seconds without tools.
FP-052-B2 — Carbon Fiber Extension Board (55 mm Thickness, Floor Support)
A heavy-duty carbon fiber extension board measuring 1200 × 1400 mm with a 55 mm thickness — significantly thicker and larger than the standard 12 mm variants. This model is designed for floor-supported installation, where the extension board rests on the floor in addition to its table attachment, providing the structural rigidity needed to support heavier loads during procedures that place significant weight on the extended surface — such as bariatric spinal surgery or procedures requiring aggressive table articulation with the patient's extremities extending beyond the standard table edge. The 55 mm thickness prevents deflection under load, while the carbon fiber material maintains full radiolucency for intraoperative imaging.
X-Ray Cassette Holder & Prone Position Hand Support
FP-053-A1 — Cassette Holder / X-Ray Bracket

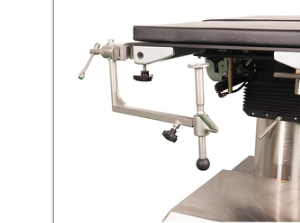

A universal fixator designed to hold X-ray film cassettes or digital detector plates in a fixed position relative to the operating table for intraoperative radiography. The bracket mounts to any standard operating table side rail and provides adjustable positioning to align the cassette precisely with the anatomical region being imaged — whether AP, lateral, or oblique views are required. The universal design ensures compatibility with all major cassette and detector sizes, making it a versatile solution for facilities transitioning between film-based and digital radiography systems.
FP-053-B1 — Hand Support in Prone Position

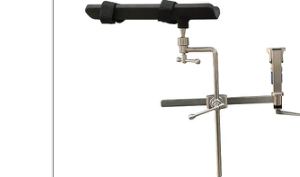

A universal fixator that mounts to the operating table side rail and features an extended guide rail for precise lateral and longitudinal adjustment. This hand support is designed specifically for prone surgery, providing a stable, padded platform that holds the patient's hands and forearms in a secure, comfortable position alongside the head during lengthy spinal and posterior cervical procedures. The extended guide rail allows the support to be positioned at the exact distance from the table edge that matches the patient's arm length, preventing shoulder strain and ulnar nerve compression that can occur when the arms are improperly supported in the prone position. The universal fixator ensures compatibility with any operating table brand.
Clinical Applications
This surgical accessory range supports procedures and workflows across a broad spectrum of surgical disciplines:
Spinal surgery — Carbon fiber extension boards lengthen the table surface to support the patient's head and feet during full-spine procedures, while maintaining complete C-arm transparency for intraoperative fluoroscopy of pedicle screws, interbody cages, and spinal alignment.
Cervical spine surgery — Extension boards and elbow supports provide stable, radiolucent platforms for posterior cervical decompression, laminectomy, and cervical fusion with unobstructed lateral imaging.
Prone-position surgery — The prone-position hand support keeps the upper limbs secure and properly aligned during lengthy posterior spinal procedures, reducing the risk of brachial plexus injury and ulnar neuropathy.
Orthopedic trauma — X-ray cassette holders enable intraoperative plain radiographs for fracture reduction verification; extension boards provide radiolucent support for extremity imaging during fixation procedures.
Hand and wrist surgery — The wrist retractor with finger sleeve provides stable traction for distal radius fixation, carpal tunnel release, and wrist arthroscopy; the elbow support maintains proper upper-limb positioning.
Bariatric surgery — The heavy-duty 55 mm carbon fiber extension board with floor support provides the additional rigidity needed for larger patients whose extremities extend beyond the standard table surface.
Neurosurgery — Extension boards and cassette holders support intraoperative imaging during cranial and spinal neurosurgical procedures where precise radiographic verification is essential.
General operating room logistics — Accessories trolleys keep instruments, positioning devices, and consumables organized and mobile, reducing clutter on the surgical field and improving workflow efficiency during case turnover.
Multi-room facilities — Mobile trolleys with silent brake casters allow accessories to be transported quietly between operating rooms, procedure rooms, and imaging suites without disturbing adjacent cases or patients.
