Operating Table Shoulder Frame & Waist Rack Set

Product Title

Surgical Operating Table Shoulder Frame and Waist Rack Set | Adjustable Shoulder Retainers & 360° Rotating Waist Support for Supine, Head-Low & Lateral Procedures

Product Overview

Engineered for precision patient positioning during complex surgical procedures, this Operating Table Shoulder Frame and Waist Rack Set provides reliable, non-compressive stabilization for patients in supine, Trendelenburg (head-low), and lateral supine pelvic positions. Designed as a modular system, the set combines adjustable surgical shoulder retainers with a 360-degree rotating waist support, ensuring the patient remains firmly anchored throughout the procedure — without unwanted pressure on the chest or abdomen.

Compatible with all standard side-rail operating tables, the system features tool-free modular rail clamps for rapid installation and changeover between cases. Soft, medical-grade polyurethane (PU) pads are easy to disinfect and clean, supporting strict infection-control protocols in high-turnover operating rooms.

Key Features & Clinical Advantages

• Non-compressive stabilization — Shoulder retainers and waist rack work together to prevent cephalad or lateral patient migration during steep Trendelenburg and lateral positioning, while leaving the chest and abdomen free for surgical access and ventilation.

• 360° rotating waist support — The waist rack cushion mount rotates a full 360 degrees with up to 230 mm of lateral adjustment, accommodating a wide range of body habitus and procedural angles for lateral supine pelvic surgery.

• Tool-free, universal rail clamp installation — Modular clamps attach to standard OT table side rails in seconds, with no tools required — reducing setup time and streamlining turnover between cases.

• Easy-to-clean PU pads — All patient-contact pads are constructed from smooth polyurethane that withstands repeated disinfection with hospital-grade cleaners, supporting compliance with infection-prevention protocols.

• Modular configuration — Shoulder frame and waist rack can be used independently or as a combined set, giving surgical teams flexibility across procedure types.

Model Variants & Specifications

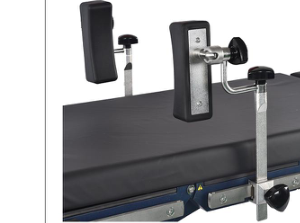

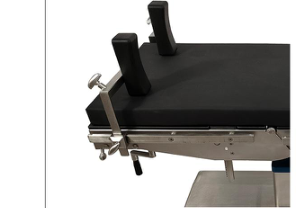

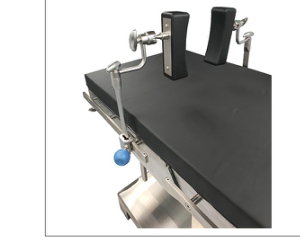

Shoulder Frames

Model Knob Type Pad Dimensions Mounting Best Use Case FP-001-A1 Square retainer 190 × 65 × 60 mm Secures to side rail edge for simple, quick mounting General supine and head-low-foot surgeries FP-001-B1 Black triangle knob 190 × 65 × 60 mm Triangle knob allows finer angular adjustment Procedures requiring repeated micro-adjustments of shoulder position FP-001-B2 Metal knob 190 × 65 × 60 mm Metal knob for maximum durability and grip Long-duration surgeries, ENT, and ophthalmic procedures

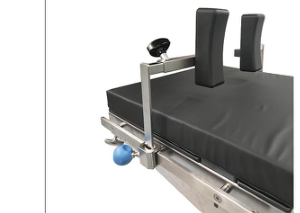

Waist Racks

Model Knob Type Rotation Lateral Adjustment Pad Material Best Use Case FP-002-A1 Black triangle knob 360° 230 mm PU cushion Waist fixation during lateral supine pelvic positioning FP-002-A2 Metal knob 360° 230 mm PU cushion Extended lateral supine pelvic cases requiring higher mechanical reliability

Clinical Applications

This surgical positioning clamp set is indicated for use in procedures that demand secure patient fixation against gravity or table tilt, including but not limited to:

• General surgery — Laparoscopic and open procedures in steep Trendelenburg (e.g., colorectal, gynecological)

• ENT & ophthalmic surgery — Prolonged head-low positioning where even minor patient shift is unacceptable

• Urological & pelvic surgery — Lateral supine pelvic position for renal, ureteral, and hip procedures

• Orthopedic surgery — Lateral decubitus positioning for hip and femur operations
