Modular Carbon-Fiber Spinal Surgery Posture Frames & Prone Position Supports — C-Arm Transparent Systems with Mechanical and Hydraulic Lifting

Modular Carbon-Fiber Spinal Surgery Posture Frames & Prone Position Supports — C-Arm Transparent Systems with Mechanical and Hydraulic Lifting

Product Title

Carbon Fiber Spinal Surgery Posture Frame and Prone Position Support System | Mechanical and Hydraulic Lifting | Full C-Arm Fluoroscopy Transparency | Modular Design with Face Support, Hand Stands & Lifting Columns

Product Overview

Engineered for the demanding requirements of spine surgery, orthopedic trauma, cervical traction, and other procedures requiring uninterrupted intraoperative imaging, this modular carbon-fiber spinal surgery posture frame system delivers full prone-position patient support with complete C-arm fluoroscopic transparency. Every component in the system — from the main frame to the extension rods, hand stands, and lifting columns — is constructed from high-strength carbon fiber, ensuring zero radiographic artifact and full X-ray penetration during lateral, anteroposterior, and 360-degree C-arm acquisitions.

Each system is delivered as a complete surgical positioning package comprising a face support, two multifunctional hand stands, and a set of lifting columns, providing everything the surgical team needs to position the patient in the prone posture safely and efficiently. The modular architecture allows individual components to be reconfigured, replaced, or upgraded independently, giving hospitals the flexibility to adapt the system to evolving procedural requirements without replacing the entire platform.

Lifting is available in two modes — mechanical lifting with a 0–4 cm adjustment range for precise, incremental height control, and hydraulic lifting for smoother, effort-free operation during patient positioning. Both modes maintain the full radiolucency of the carbon fiber structure, ensuring that imaging quality is never compromised regardless of the lifting mechanism selected.

Key Features & Clinical Advantages

• Full carbon fiber construction — The entire frame system, including the main posture frame, extension rods, four-point brackets, hand stands, and lifting columns, is fabricated from medical-grade carbon fiber. This delivers complete C-arm transparency with zero metal artifact, enabling high-resolution fluoroscopy, lateral X-rays, and 360-degree rotational imaging without removing or repositioning any component.

• Mechanical lifting (0–4 cm) — The standard lifting system provides a precise, mechanically actuated height adjustment of up to 4 cm, allowing the surgical team to fine-tune the patient's torso elevation for optimal surgical exposure, venous drainage, and respiratory mechanics during prone positioning.

• Hydraulic lifting option — For facilities that prefer smoother, effort-free height adjustment, the hydraulic lifting variant provides the same range of motion with fluid-damped operation — reducing the physical effort required to reposition the patient and enabling micro-adjustments with minimal force, even under full surgical load.

• Modular component architecture — The face support, hand stands, lifting columns, extension rods, and four-point brackets are all independently detachable and interchangeable, allowing the system to be reconfigured for different procedure types, patient sizes, and surgical approaches without requiring a complete system replacement.

• Four-point bracket stabilization — The carbon fiber four-point bracket system distributes the patient's weight evenly across the frame, preventing focal pressure points on the chest, abdomen, and pelvis while maintaining rigid positional stability throughout the procedure.

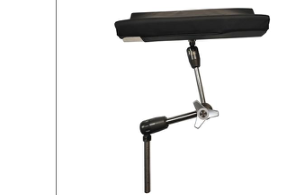

• Multifunctional hand stands — The two included hand stands feature adjustable height, angle, and rotation, allowing the patient's upper limbs to be positioned in the optimal configuration for the surgical approach — whether arms are elevated overhead, tucked alongside the body, or placed in an intermediate position.

• 360-degree C-arm access without dead angles (FP-067-C3) — The suspended design of the FP-067-C3 model eliminates all structural obstructions around the patient's torso, enabling the C-arm to rotate a full 360 degrees around the surgical site for comprehensive intraoperative imaging from any angle — critical for pedicle screw placement, deformity correction, and real-time verification of implant position.

Model Variants & Specifications

FP-067-A1 — Spinal Surgery Posture Frame, Carbon Fiber (Mechanical Lifting)
The standard configuration of the carbon fiber spinal surgery posture frame, built entirely from radiolucent carbon fiber for full C-arm transparency. The system features mechanical lifting with a 0–4 cm adjustment range, providing precise, incremental control over the patient's torso height during prone positioning. The frame is equipped with a carbon fiber extension rod and four-point bracket that distribute support across the patient's thorax and pelvis while leaving the surgical field completely unobstructed for lateral and anteroposterior fluoroscopy. The package includes a face support for prone head positioning, two multifunctional hand stands for upper-limb placement, and a set of lifting columns for height adjustment. This model is the go-to configuration for routine spine surgery, lumbar fusion, disc replacement, and orthopedic trauma procedures where mechanical lifting precision and full imaging transparency are required.

FP-067-A2 — Spinal Surgery Posture Frame, Carbon Fiber (Hydraulic Lifting)
Shares the same full carbon fiber construction, extension rod, four-point bracket, face support, hand stands, and lifting columns as the FP-067-A1, but upgrades to a hydraulic lifting mechanism for smoother, effort-free height adjustment. The hydraulic system provides the same 0–4 cm range of motion as the mechanical version but operates with fluid-damped precision that requires minimal physical force to actuate — making it the preferred choice for facilities where frequent intraoperative repositioning is needed, where bariatric patients place higher demands on the lifting mechanism, or where the surgical team values the ergonomic advantage of hydraulic operation over manual mechanical adjustment. Full C-arm transparency is maintained across the entire range of hydraulic travel.

FP-067-C3 — Prone Surgery Carbon Fiber Spinal Frame (Suspended Design, 360° Imaging)
The most imaging-advanced model in the range, the FP-067-C3 is a full carbon fiber prone surgery frame featuring a suspended design that eliminates all structural elements from beneath and around the patient's torso. Equipped with a carbon fiber extension rod and four-point bracket, this system provides complete structural radiolucency from every angle — enabling the C-arm to achieve full penetration imaging and 360-degree rotational shooting without any dead angle. The suspended architecture means that lateral C-arm sweeps, oblique views, and full rotational fluoroscopy can be performed without the frame's support structure appearing in the image field — a critical advantage for complex spinal instrumentation, pedicle screw placement, and deformity correction where real-time, multi-angle imaging verification is essential. The system includes a face support, two multifunctional hand stands, and the complete set of lifting columns, delivering a comprehensive prone positioning solution that maximizes both surgical access and imaging freedom.

Clinical Applications

This carbon fiber spinal surgery posture frame system is indicated for a broad range of procedures requiring prone positioning with intraoperative imaging:

• Lumbar and thoracic spine fusion — Full C-arm transparency enables real-time lateral and AP fluoroscopy during disc preparation, interbody cage placement, and pedicle screw insertion without removing or repositioning the frame.

• Cervical spine surgery — The face support and adjustable hand stands provide stable prone positioning for posterior cervical decompression, laminectomy, and cervical fusion procedures.

• Spinal deformity correction — The 360-degree imaging capability of the FP-067-C3 model supports complex osteotomy, rod contouring, and multi-level instrumentation where continuous multi-angle fluoroscopic verification is essential.

• Percutaneous pedicle screw placement — Full radiolucency enables precise fluoroscopic guidance for minimally invasive percutaneous screw insertion without frame-related image obstruction.

• Orthopedic trauma — Prone positioning with C-arm access for posterior pelvic ring fixation, sacroiliac screw placement, and posterior acetabular fracture repair.

• Cervical traction — The lifting columns and face support enable controlled cervical traction in the prone or semi-prone position for cervical disc herniation and stenosis management.

• Vertebroplasty and kyphoplasty — Full C-arm transparency supports real-time fluoroscopic guidance during cement injection into fractured vertebral bodies.

• Spinal tumor resection — The unobstructed imaging field allows continuous visualization of tumor margins and instrument position during en bloc resection and decompression.

• Revision spine surgery — Hydraulic or mechanical lifting adjustment enables intraoperative changes in torso elevation to optimize exposure during complex revision procedures with extensive scar tissue and altered anatomy.
