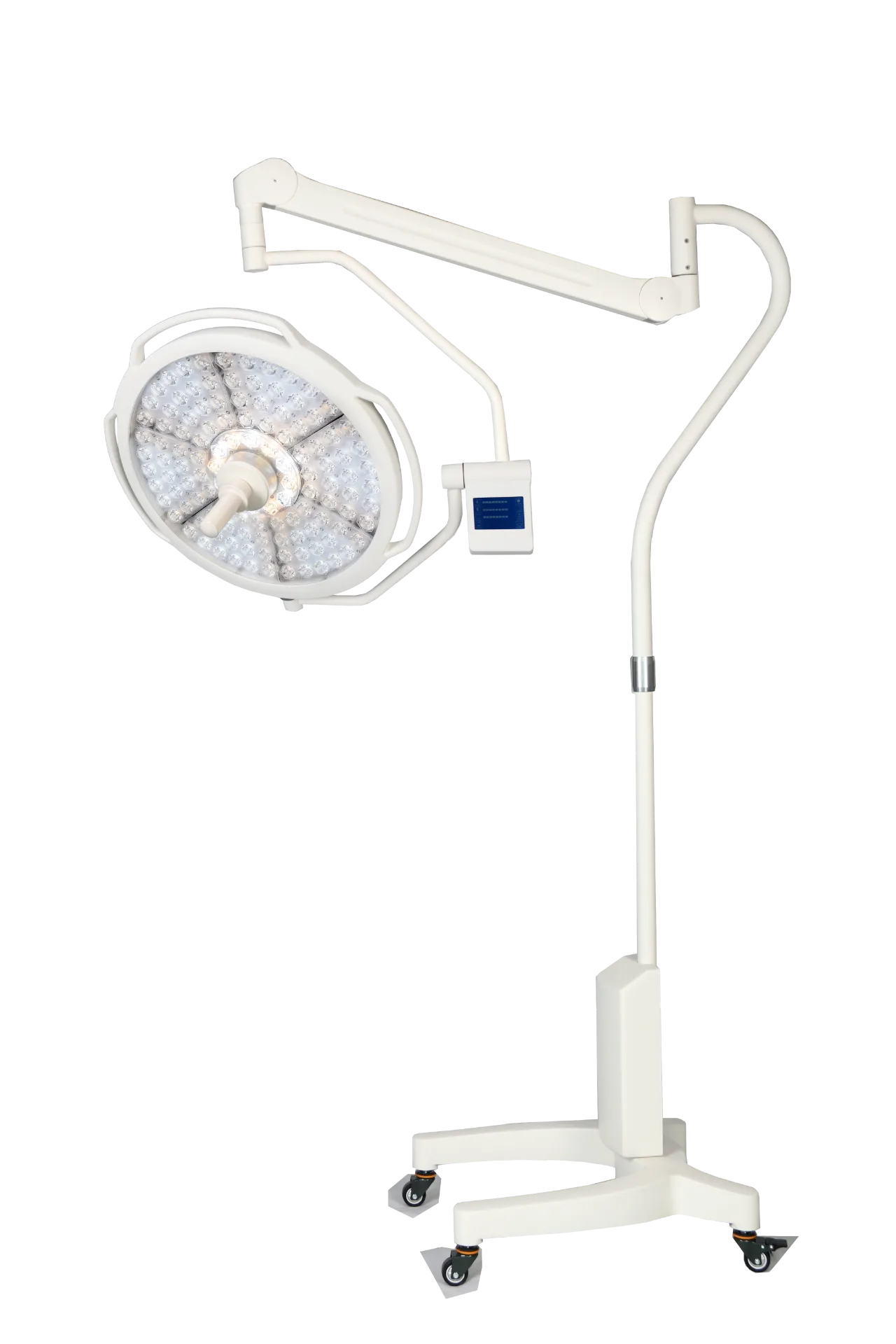

LEDL700 Mobile Stand LED Operating Light

LEDL700 Mobile Stand LED Operating Light

The LEDL700 is a mobile stand LED operating light featuring the latest generation high-efficiency LED cold light source with adjustable illuminance from 60,000 to 150,000 lux and a color rendering index of Ra 85–95. Designed for emergency departments, outpatient operating rooms, and field medical rescue, this mobile surgical light combines multi-point converging shadowless optics with an LCD touch control panel and optional battery backup for versatile surgical and emergency lighting.

Key Features & Advantages

• High-Efficiency LED Cold Light: Heat-to-light ratio below 3.6 mW/m²·lux avoids heat damage to surgical wounds and reduces fatigue for medical staff during long operations.
• Multi-Point Shadowless Optics: Converging optical design effectively eliminates shadows created by surgeons' hands and heads, enabling clear, unobstructed visibility of deep surgical cavities.

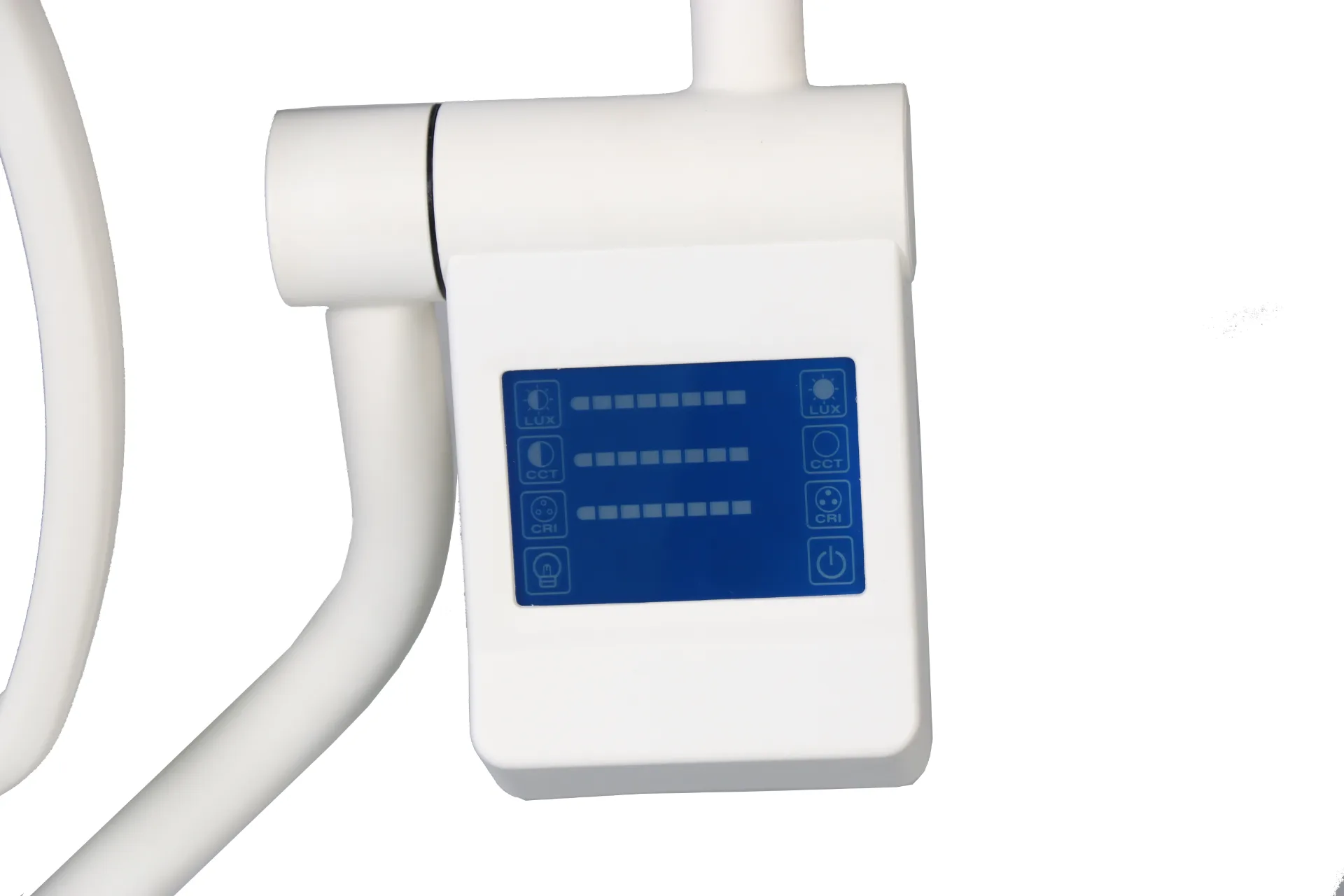

• LCD Touch Control Panel: Integrated touchscreen enables intuitive one-touch adjustment of brightness, spot size, and color temperature for easy clinical operation.
• Wide Uniform Illumination: Large lamp head structure provides wide, uniform illumination coverage with adjustable spot diameter to fit both minor suturing and medium-sized surgeries.
• Optional Battery Backup: Configurable backup battery system maintains uninterrupted lighting during power failures, suited for disaster rescue, mobile medical vehicles, and clinics with unstable power supply.
• Laminar Flow Compatible: Smooth, fully enclosed lamp housing is compatible with laminar flow cleaning and regular disinfection, meeting strict sterile standards of modern medical environments.
• Ultra-Long LED Life: LED components with service life exceeding 50,000 hours, significantly reducing replacement frequency and long-term maintenance expenditure.

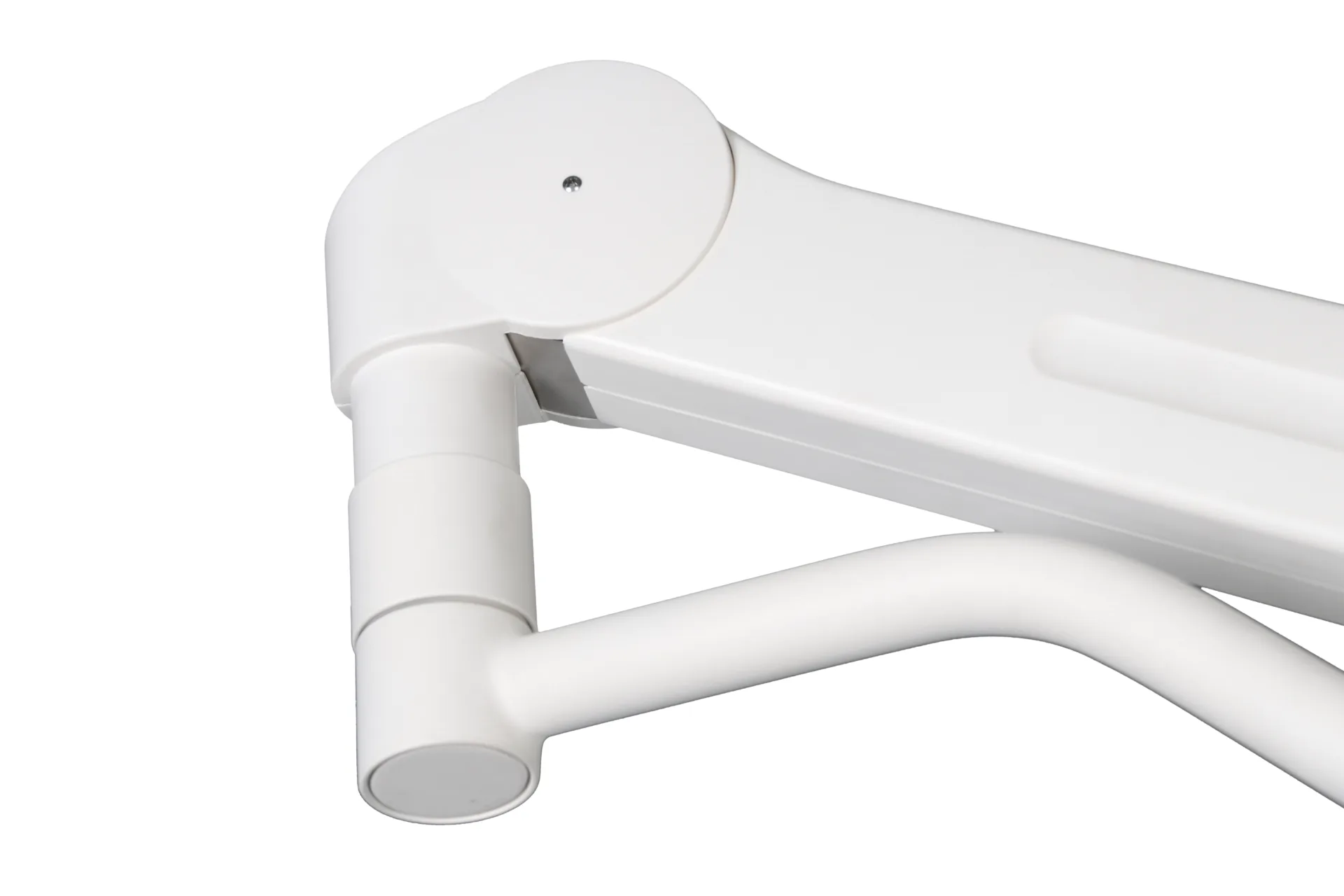

• Flexible Multi-Joint Stand: Mobile stand supports free height, horizontal, and vertical angle adjustment, allowing flexible positioning on treatment beds, stretchers, and operating tables.

Clinical Applications

The LEDL700 mobile operating light is suitable for a variety of clinical settings and procedures:

• Emergency departments and trauma surgery
• General outpatient operating rooms
• Community health centers
• Field medical rescue and disaster relief
• Plastic surgery clinics
• Gynecological treatment rooms
• Debridement, suturing, and minor surgeries
• Wound examination and routine clinical diagnosis

Mobile Operating Light vs. Ceiling-Mounted Surgical Light

The LEDL700 bridges the gap between examination lights and ceiling-mounted surgical lights. With 60,000–150,000 lux illuminance and >1,400 mm illumination depth, it approaches the performance of ceiling-mounted surgical lights while maintaining the flexibility of a mobile stand. It is ideal for facilities that need high-performance surgical lighting without permanent ceiling installation, or as a supplementary light in dedicated operating theaters.

Compared to the LEDL500 (40,000–60,000 lux), the LEDL700 offers significantly higher illuminance and deeper illumination, making it suitable for medium-sized surgeries rather than just examinations and minor procedures.

Technical Specifications

• Model: LEDL700
• Type: Mobile stand LED operating light
• Illuminance: 60,000–150,000 lux (adjustable)
• Illumination Depth: >1,400 mm
• Color Temperature: 3,500–5,000 K (variable)
• Color Rendering Index (CRI): Ra 85–95
• Heat-to-Light Ratio: <3.6 mW/m²·lux
• LED Service Life: >50,000 hours
• Control Mode: LCD touch screen panel
• Optional Configuration: Emergency backup battery

Frequently Asked Questions

What procedures is the LEDL700 suitable for?

The LEDL700 is designed for emergency departments, outpatient operating rooms, community health centers, field medical rescue, plastic surgery clinics, and gynecological treatment rooms. It is suitable for debridement, suturing, minor surgeries, wound examination, and routine clinical diagnosis.

How does the LEDL700 compare to the LEDL500?

The LEDL700 offers significantly higher illuminance (60,000–150,000 lux vs. 40,000–60,000 lux), deeper illumination (>1,400 mm vs. >500 mm), variable color temperature (3,500–5,000 K), and an LCD touch screen — making it suitable for medium-sized surgeries, while the LEDL500 is better suited for examinations and minor procedures.

Does the LEDL700 have battery backup?

Yes. An optional backup battery system is configurable to maintain uninterrupted lighting during power failures, making it suitable for disaster rescue, mobile medical vehicles, and clinics with unstable power supply.

Can the LEDL700 be used as a primary surgical light?

With 150,000 lux maximum illuminance and >1,400 mm illumination depth, the LEDL700 can serve as a primary light for minor and medium-sized surgeries in facilities without ceiling-mounted surgical lights, or as a supplementary light in dedicated operating theaters.
