LEDL500 Mobile Stand LED Cold Light Operating Light
The LEDL500 is a mobile stand LED cold light operating light featuring a 500 mm diameter lamp head with adjustable illuminance from 40,000 to 60,000 lux and a color rendering index of Ra≥90. Designed for minor surgeries, wound care, gynecological examinations, and emergency procedures, this mobile surgical light combines premium LED cold light technology with a flexible multi-angle stand and optional battery backup for versatile clinical use.
Key Features & Advantages
- Premium LED Cold Light Source: No infrared or ultraviolet radiation, with heat-to-light ratio below 3.6 mW/m²·lux, greatly reducing heat radiation to surgical wounds and preventing overheating fatigue for medical staff.

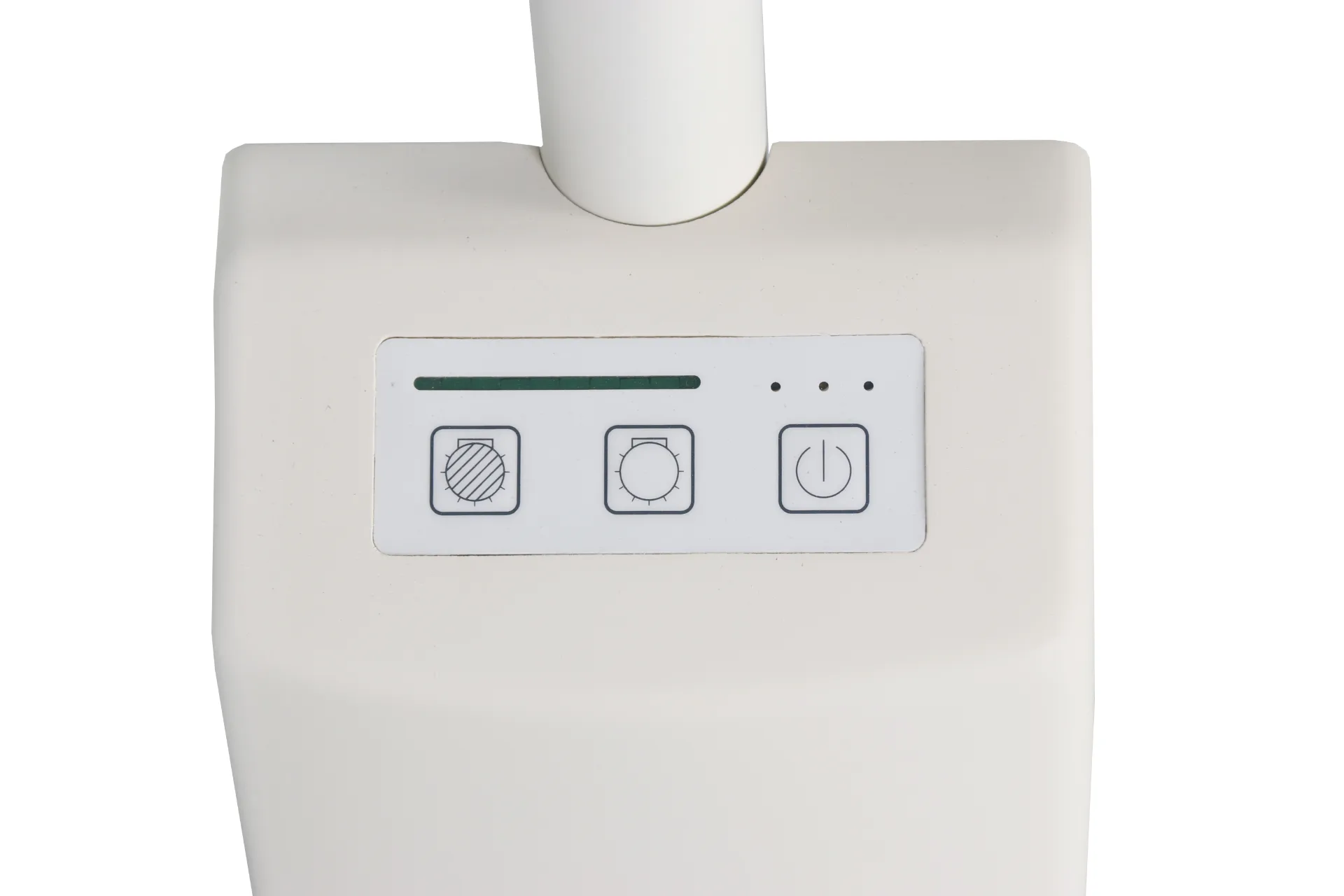

- Digital Integrated Circuit Control: Advanced control panel with intuitive visual brightness display enables quick, precise adjustment of light intensity for different clinical demands.
- Main Light Failure Indicator: Built-in real-time visual warning system alerts medical staff when LED modules malfunction, enabling timely replacement to avoid unexpected lighting interruption during procedures.

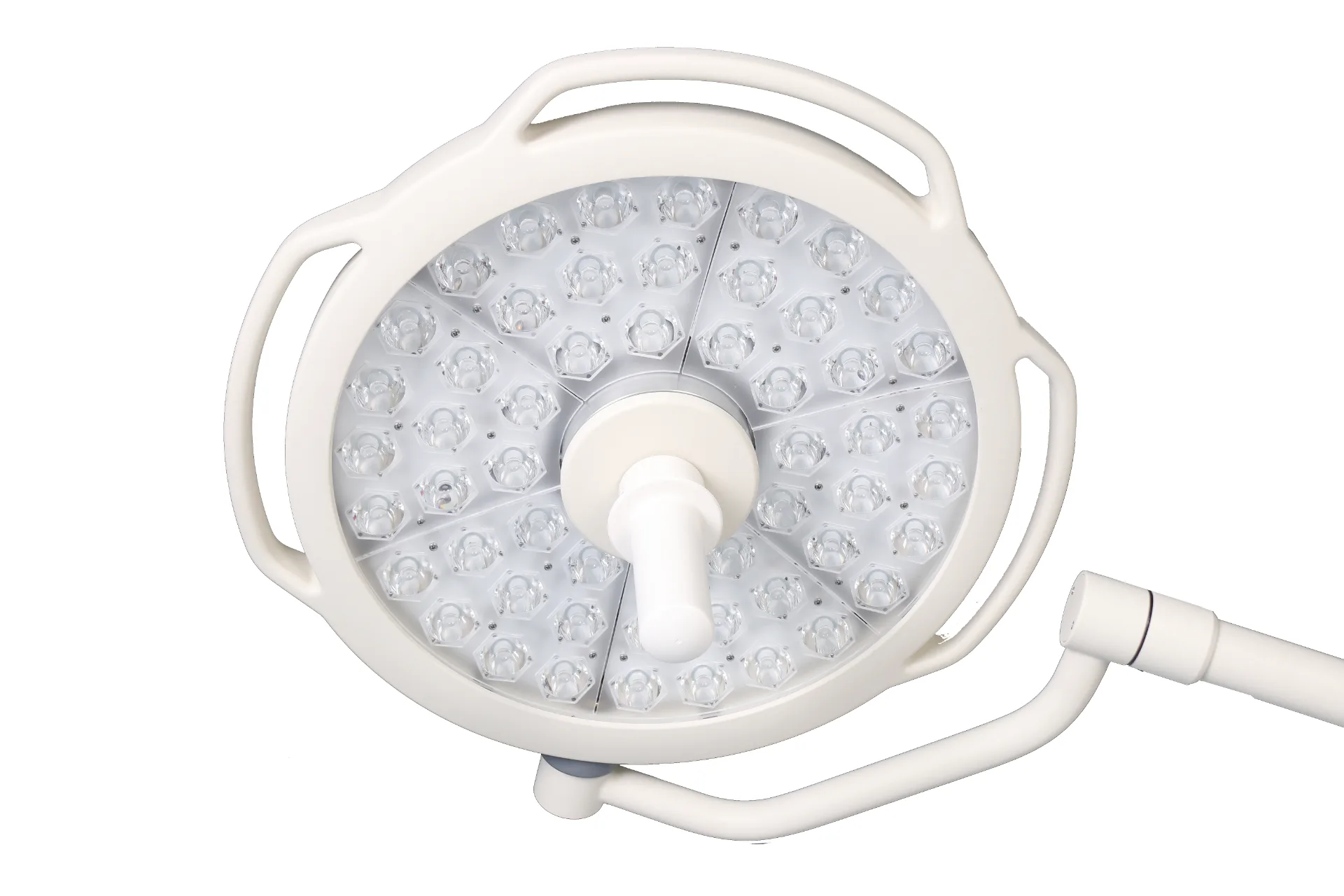

- Flexible Mobile Stand: 500 mm lamp head mounted on a multi-angle rotatable arm stand, enabling free positioning of the light spot over treatment beds, exam tables, and emergency stretchers.
- Optional Battery Backup: Emergency backup battery system ensures continuous lighting during power outages, ideal for disaster rescue, field medical aid, and clinics with unstable power supply.
- Laminar Flow Compatible: Streamlined lamp head structure meets laminar flow cleaning and high-temperature disinfection standards, easy to wipe and sterilize for sterile medical environments.
- Ultra-Long LED Life: LED service life exceeding 50,000 hours, reducing frequent replacement costs and long-term hospital maintenance expenses.
Clinical Applications
The LEDL500 mobile stand operating light is ideal for a variety of clinical settings and procedures:
- General hospitals and outpatient clinics
- Emergency departments and first-aid centers
- Minor surgeries (wound debridement, suturing)
- Gynecological examinations
- Mobile medical vehicles and disaster relief sites
- Routine clinical inspections and dressing changes
Mobile Stand vs. Ceiling-Mounted Surgical Lights
Mobile stand lights like the LEDL500 offer maximum flexibility — they can be moved between rooms, positioned at any angle, and require no permanent installation. Ceiling-mounted lights provide higher illuminance and stability for major surgeries but are fixed in place. The LEDL500 is ideal for facilities that need versatile, movable lighting for minor procedures, examinations, and emergency use, while ceiling-mounted lights (such as the LEDD700/500 or PROLED H6) are better suited for dedicated operating theaters.
Technical Specifications
- Model: LEDL500
- Type: Mobile stand LED cold light operating light
- Illuminance: 40,000–60,000 lux
- Illumination Depth: >500 mm
- Color Temperature: 4,000±500 K
- Color Rendering Index (CRI): Ra≥90
- Lamp Head Diameter: 500 mm
- Light Spot Diameter: 150 mm
- Heat-to-Light Ratio: <3.6 mW/m²·lux
- LED Service Life: >50,000 hours
- Control: Digital integrated circuit panel with visual brightness display
- Optional Configuration: Emergency backup battery
Frequently Asked Questions
What procedures is the LEDL500 suitable for?
The LEDL500 is designed for minor surgeries, wound debridement, suturing, gynecological examinations, and routine clinical inspections in hospitals, outpatient clinics, emergency departments, and mobile medical vehicles.
Does the LEDL500 have battery backup?
Yes. An optional backup battery system is available to ensure continuous lighting during power outages, making it suitable for disaster rescue, field medical aid, and clinics with unstable power supply.
How is the LEDL500 different from the LEDL700?
The LEDL500 offers 40,000–60,000 lux illuminance with a 500 mm lamp head, while the LEDL700 provides higher illuminance (60,000–150,000 lux) with an LCD touch screen and greater illumination depth (>1,400 mm), making the LEDL700 more suitable for medium-sized surgeries.
