LEDB500 Wall Mounted LED Examination Light

LEDB500 Wall Mounted LED Examination Light

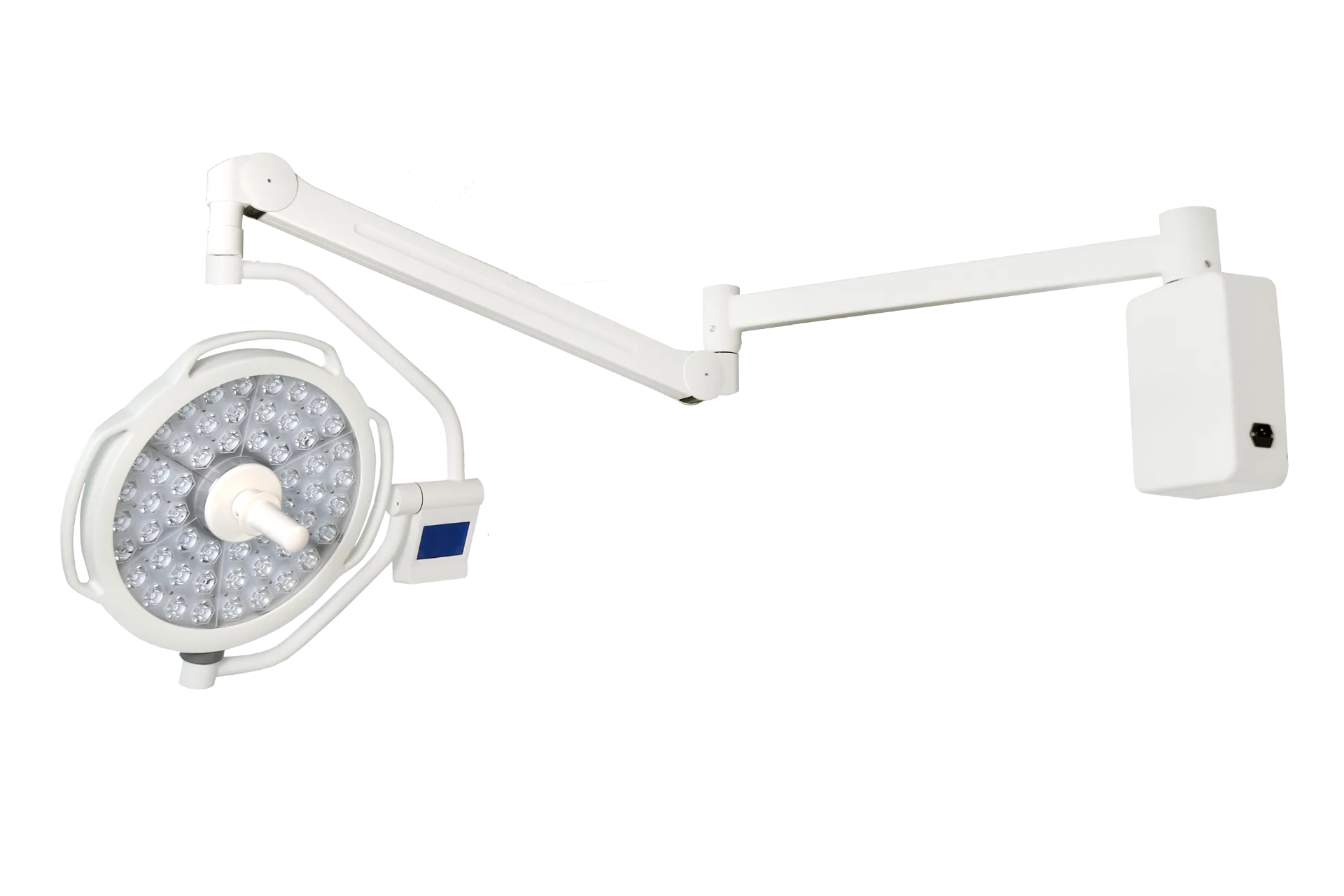

The LEDB500 is a wall-mounted LED examination and minor procedure light delivering adjustable illuminance from 40,000 to 90,000 lux for clinical examination, outpatient procedures, and treatment applications. Designed for permanent wall installation in examination rooms, emergency departments, intensive care units, and treatment rooms, this wall-mounted LED exam light offers a balance of high-output illumination and energy-efficient operation with only 54 W power consumption.

Key Features and Advantages

• Wall Mounted Fixed Installation: Stable wall-mounted structure with spring-balanced multi-joint arm saves floor space and provides vibration-free positioning in dedicated examination rooms.
• High-Efficiency LED Cold Light: Adjustable 40,000 to 90,000 lux illuminance with low 54 W power consumption delivers high-output illumination with stable 3,500 to 5,000 K color temperature.
• Superior Color Rendering: Ra 85 to 98 color rendering index reproduces accurate skin and tissue tones for reliable clinical observation and diagnostic confidence.
• Wide Spot Coverage: 120 to 350 mm adjustable light spot diameter accommodates both focused examination lighting and broader area illumination for minor procedures.
• Heat-to-Light Ratio Under 3.6: Low heat emission protects patient comfort during extended examinations and supports continuous clinical use.
• Energy Efficient Operation: Optimized LED driver technology delivers high light output with minimal energy consumption, supporting sustainable hospital energy management programs.
• Ultra-Long LED Service Life: LED service life exceeding 50,000 hours reduces lamp replacement frequency and total lifetime maintenance costs.
• Easy-Clean Hygienic Housing: Smooth closed lamp head and arm structure supports standard disinfection protocols and routine hospital-grade cleaning.

Clinical Applications

The LEDB500 wall mounted examination light is widely used across the following healthcare settings:

• General hospital examination rooms
• Outpatient clinics and primary care facilities
• Emergency departments and observation units
• Intensive care units and step-down wards
• Obstetric and gynecological examination rooms
• Dressing change and minor procedure rooms
• Dermatology consultation suites
• Veterinary examination rooms

LEDB500 vs. LEDB260 Wall Mounted Lights

Compared to the LEDB260 wall-mounted examination light (40,000 to 60,000 lux, 20 W power), the LEDB500 delivers higher maximum illuminance (90,000 lux) and broader spot coverage for more demanding examination and minor procedure applications. The LEDB500 is the preferred solution for examination rooms where high-output illumination is required for diagnostic accuracy and procedural confidence, while the LEDB260 remains a cost-effective choice for routine observation and basic clinical examinations.

Technical Specifications

• Model: LEDB500
• Type: Wall mounted LED examination and minor procedure light
• Illuminance: 40,000 to 90,000 lux (adjustable)
• Color Temperature: 3,500 to 5,000 K
• Color Rendering Index: Ra 85 to 98
• Heat-to-Light Ratio: less than 3.6 mW/m²·lux
• Light Spot Diameter: 120 to 350 mm (adjustable)
• Lighting Depth: greater than 700 mm
• Power Consumption: 54 W
• LED Service Life: greater than 50,000 hours
• Installation Type: Wall mounted with multi-joint adjustable arm

Frequently Asked Questions

What clinical procedures is the LEDB500 suitable for?

The LEDB500 wall mounted LED examination light is designed for general hospital examination rooms, outpatient clinics, emergency departments, intensive care units, obstetric and gynecological examination rooms, dermatology suites, and minor procedure rooms. It supports examinations, wound care, and minor procedural work.

How does the LEDB500 compare to the LEDB260?

The LEDB500 provides higher maximum illuminance (90,000 lux vs. 60,000 lux) with wider spot range (120 to 350 mm vs. 150 mm fixed), and similar power efficiency. The LEDB260 is a cost-effective option for routine observation, while the LEDB500 is engineered for more demanding examination procedures.

Is the LEDB500 suitable for minor surgical procedures?

The LEDB500 is primarily designed for clinical examinations and minor outpatient procedures. For surgical applications requiring higher illuminance and deep-cavity illumination, wall-mounted LEDB740 or ceiling-mounted LEDD740 surgical lights are recommended.
