The HD-SY5 operating light camera system is a wireless 4K ultra-high-definition surgical field imaging solution purpose-built for modern operating rooms. It integrates a ceiling-mounted LED surgical light, a wireless surgical-field camera, a wireless display and drive unit, an embedded 4K image storage recorder, a wireless bridging device, and a 27-inch medical-grade 4K monitor into a single plug-and-play surgical imaging platform. By replacing cumbersome video cables with a stable long-distance wireless transmission link, the operating light camera system enables real-time surgical field observation, recording, playback, remote consultation, and surgical teaching without disrupting laminar flow or sterile draping in the operating theater.

What Is an Operating Light Camera System?

An operating light camera system combines a surgical lamp with an integrated camera, signal transmission, display, and storage chain to capture, stream, and record the operative field. Compared with traditional surgical lights, a camera-equipped operating light adds visualization, archiving, and remote collaboration capabilities without changing the surgeon's lighting workflow. The HD-SY5 takes this further with a fully wireless 4K signal path, eliminating the routing challenges of HDMI or SDI wiring through revolving arms, suspension columns, and ceiling structures.

Key Features and Advantages

• Wireless 4K Surgical Field Imaging: Built around a Sony 1/2.8-inch stacked 4K CMOS image sensor, the wireless camera delivers up to 3,840 × 2,160 (8 MP) ultra-high-definition surgical field video for crisp visualization of tissue planes, sutures, and anatomical detail.
• 20× Optical Zoom Autofocus Lens: A motorized 4.7–96 mm zoom lens with automatic iris and one-push autofocus supports wide overview shots and close-up inspection of fine structures without refocusing the light head.

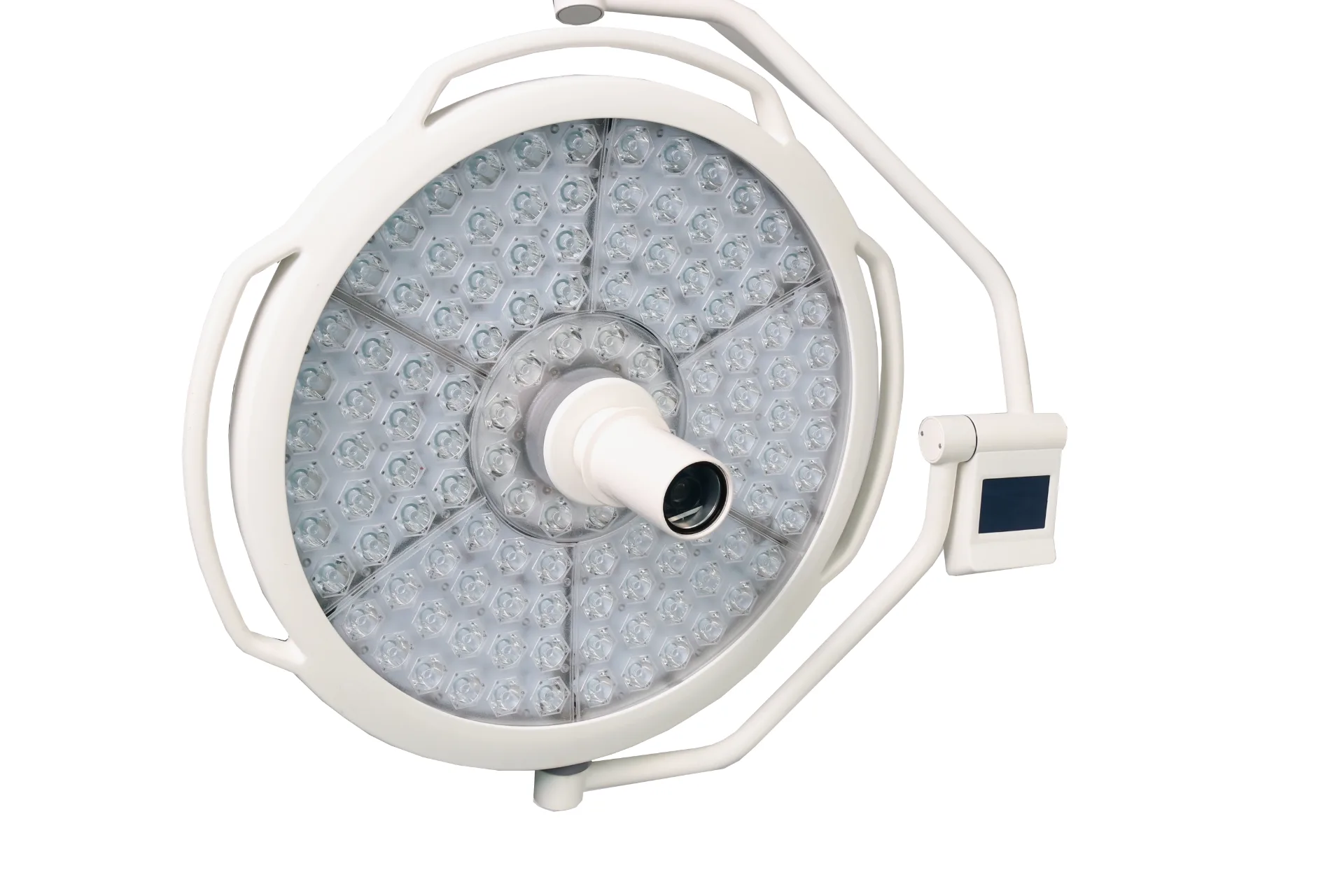

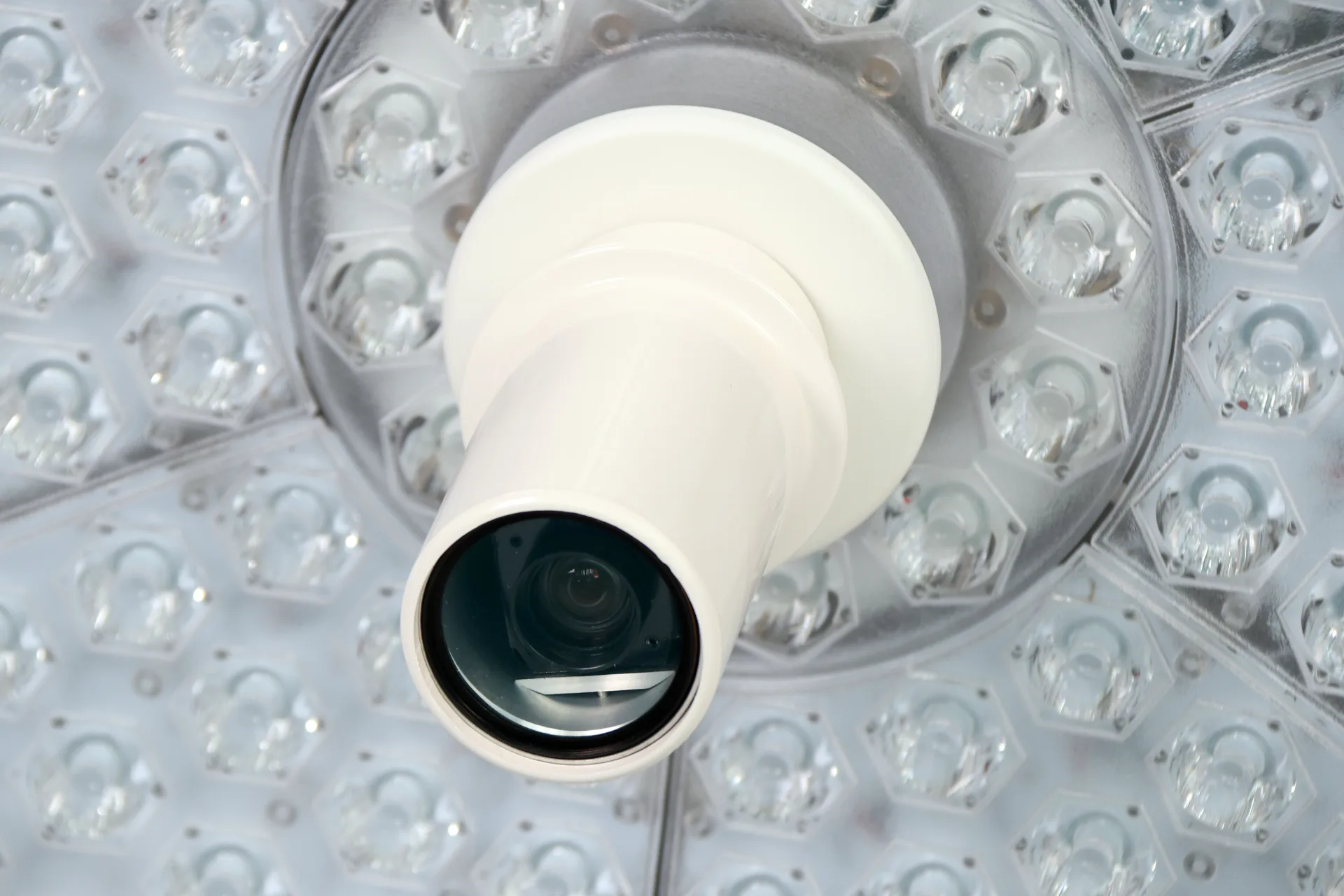

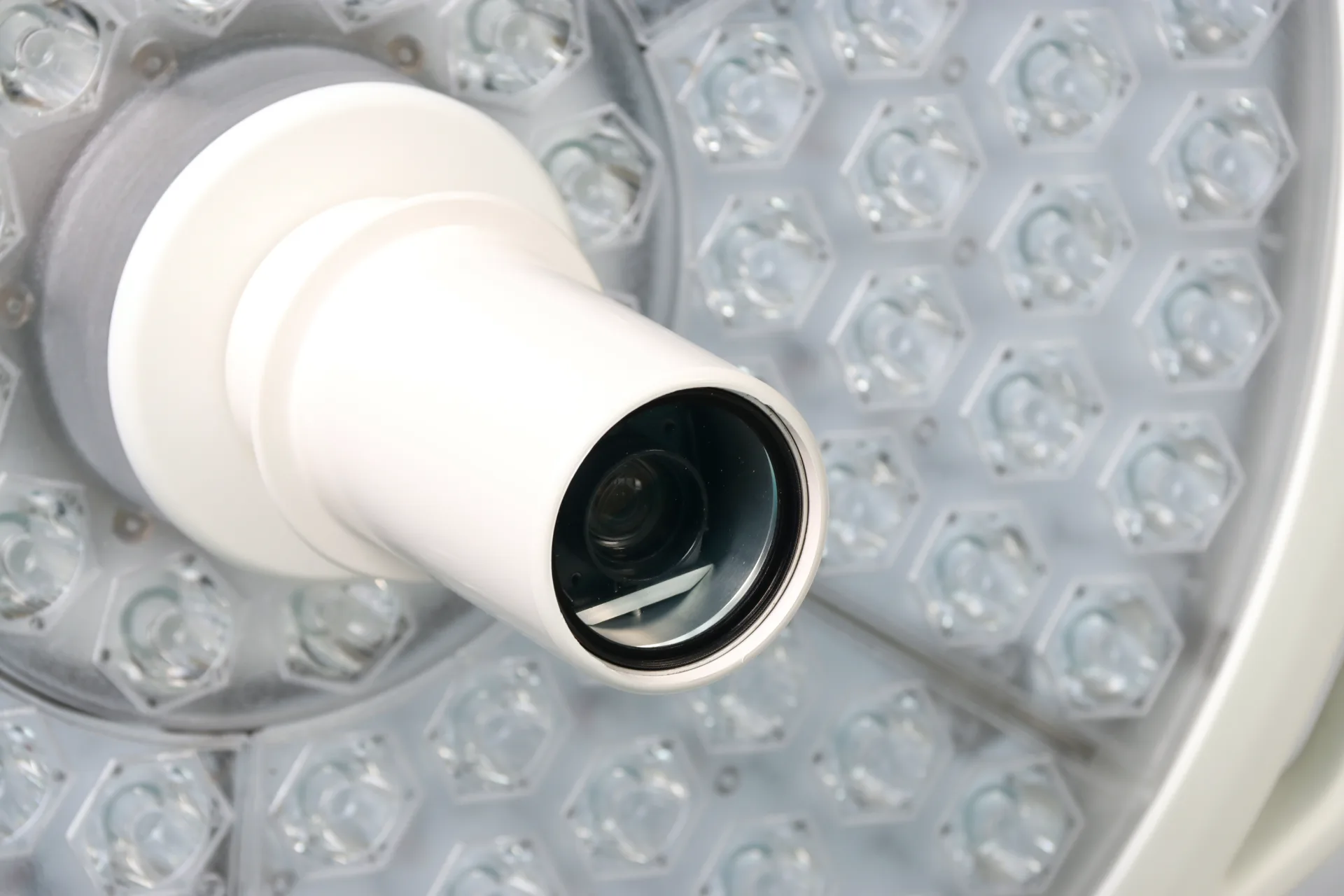

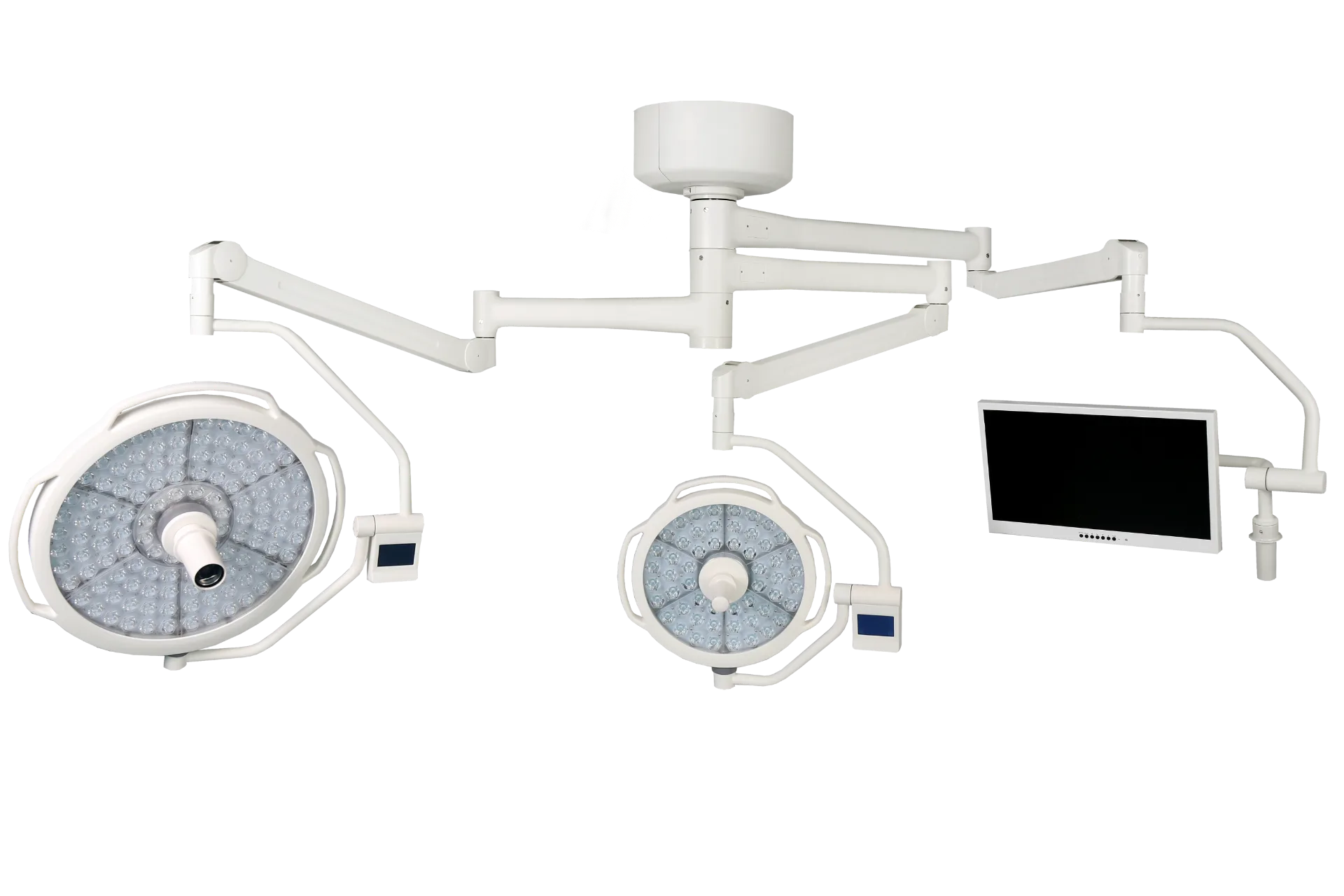

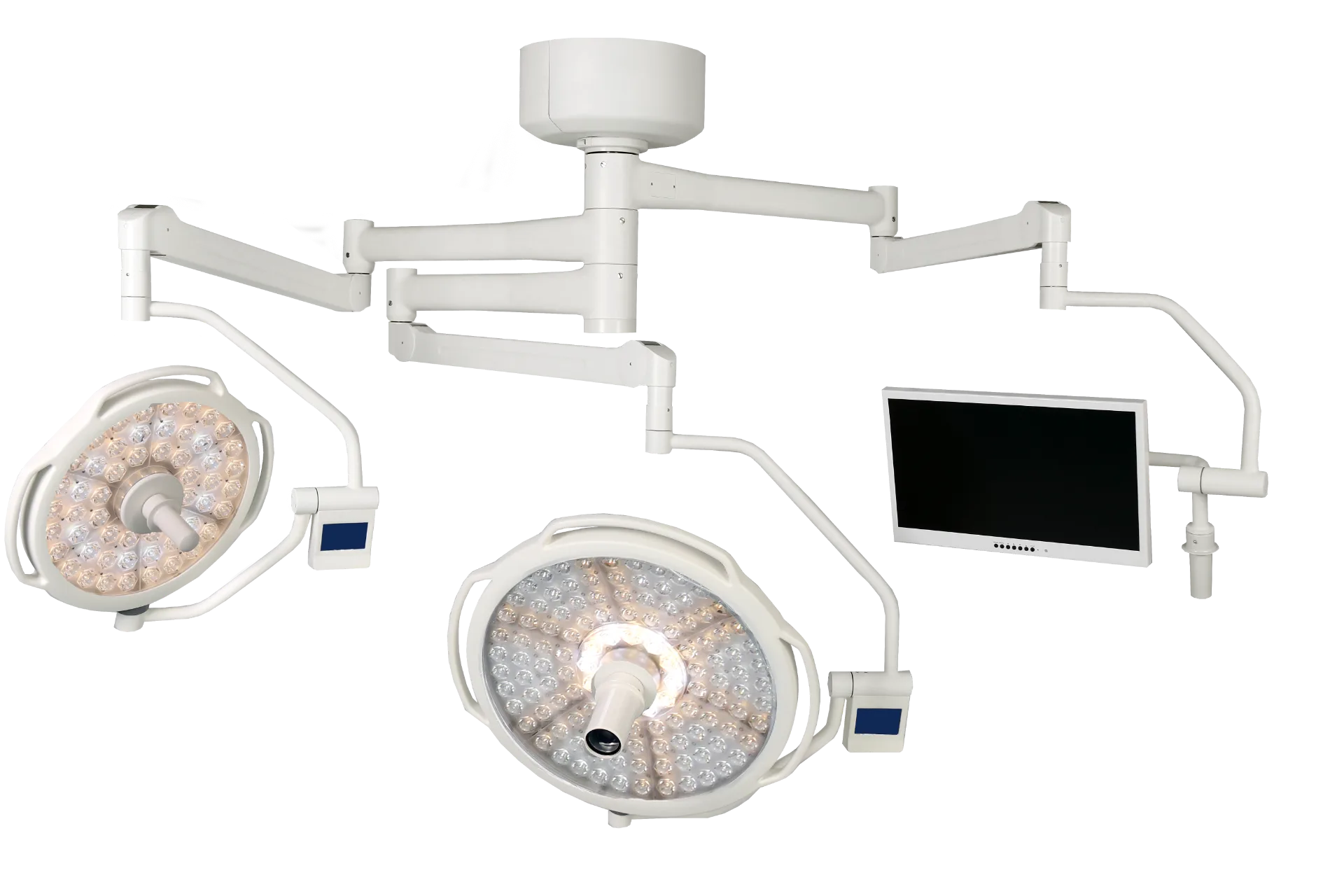

• Center-Mounted Camera Handle: The camera is installed at the center of the surgical lamp handle, with W/T (Wide/Tele) buttons on the sterilization-grade handle so the surgeon or scrub nurse can zoom the camera without leaving the sterile field.
• Long-Distance Stable Wireless Transmission: A dedicated wireless image transmission engine provides 8 MHz bandwidth with up to 16 Mbps data rate, supporting stable 4K transmission over 100 m line-of-sight and 50 m through walls, eliminating the need to route signal cables through the revolving arm.
• One-Click Code-Matching Pairing: The wireless camera, display drive unit, and bridging device support one-click pairing, simplifying installation and ensuring encrypted link integrity between components.
• 4K Ultra-HD Display Output: The wireless display and drive unit decodes H.264 / H.265 / H.265+ streams and outputs HDMI 4K @ 60 Hz to any compatible medical-grade monitor, with 1/2/4 split-screen viewing for multi-camera setups.
• Embedded 4K DVR Storage: A LINUX-based embedded recorder supports 4K and 1080p real-time recording on dual 2.5-inch SATA bays (1 TB / 2 TB / 4 TB), with manual, scheduled, and alarm-triggered capture, plus USB backup for evidence-grade surgical archives.
• ONVIF and RTSP Compatibility: All four imaging components support ONVIF and RTSP protocols for seamless integration with hospital PACS, NVR, and third-party video management systems.
• Low-Light Surgical Performance: Color sensitivity of 0.01 Lux at F1.2 and black-and-white sensitivity of 0.001 Lux at F1.2 ensure usable imaging under dim surgical conditions, while H.265+ encoding reduces bandwidth and storage pressure.
• Integrated 27-Inch Medical Monitor: A full-HD 1920 × 1080 surgical display with 350 cd/m² brightness, 3500:1 contrast ratio, and 4 ms response time offers wide viewing angles and full-metal + tempered-glass construction for 24/7 OR use.
• Multi-Interface Hospital Connectivity: The medical monitor accepts DVI, HDMI, VGA, BNC composite, SD/HD-SDI loop-through, YPbPr, and USB input, allowing direct connection to imaging towers, endoscopy stacks, and existing OR video routers.
• Multi-Point Wireless Bridging: The bridging device supports up to 8 simultaneous access points, forwarding surgical field video to the hospital LAN for remote consultation, telemedicine, and live teaching broadcasts.
• Laminar-Flow Friendly Mounting: Streamlined lamp-head profiles and ceiling-mounted suspension maintain laminar-flow compatibility, supporting infection-control requirements of modern operating theaters.

Clinical Applications and Use Cases

The HD-SY5 operating light camera system is widely deployed across the following surgical and educational environments:

• General surgery, orthopedic surgery, and trauma operating rooms
• Neurosurgical and spinal surgery theaters requiring deep-cavity imaging
• Cardiothoracic and vascular surgery suites
• Plastic, reconstructive, and microsurgery operating rooms
• Gynecological, obstetric, and minimally invasive surgical environments
• ENT, ophthalmic, and dental-maxillofacial procedure rooms
• Veterinary surgical theaters and animal research operating suites
• Hybrid operating rooms combining imaging, intervention, and open surgery
• Day-surgery and ambulatory surgical centers
• Remote consultation, teleproctoring, and live surgical broadcasting
• Medical school surgical teaching and clinical training labs
• Surgical video archiving, medico-legal documentation, and quality assurance reviews

System Architecture and Workflow

The HD-SY5 operating light camera system follows a four-component signal chain that preserves surgical sterility while delivering full 4K visualization. The wireless surgical field camera is mounted at the center of the LED surgical lamp handle and streams 4K video over an encrypted wireless link to the wireless display and drive unit installed behind the medical monitor. The display and drive unit decodes the stream and outputs 4K HDMI to the 27-inch monitor while simultaneously forwarding the stream through the wireless bridging device to the hospital network for remote viewing and recording. The embedded 4K image storage device independently records the surgical field on dual hard drives with redundant backup, ensuring that every procedure is captured for teaching, review, and medico-legal documentation.

This architecture lets the surgical team add 4K imaging to an existing LEDD500, LEDD620, LEDD700, LEDD730, or LEDD740 ceiling-mounted surgical light without rewiring the revolving arm or replacing the suspension column, dramatically reducing installation time and infrastructure cost.

Technical Specifications

Wireless Surgical Field Camera

• Image Sensor: Mstar SoC + 1/2.8-inch Sony IMX415 stacked 4K CMOS, 8 megapixels
• Video Coding: H.265 / H.264 dual-stream, 0.1–6 Mbps adjustable, adjustable frame rate
• Optical Zoom Lens: 20× optical zoom, 4.7–96 mm motorized lens, automatic iris, one-push autofocus
• Minimum Illumination: Color 0.01 Lux @ F1.2; Black-and-white 0.001 Lux @ F1.2
• Image Output: 3,840 × 2,160 (8 MP) ultra-high-definition
• Lens Control: PELCO-D protocol, 9,600 baud, W/T zoom button on handle
• Network Protocols: ONVIF, RTSP, WEB configuration, OSD overlay, real-time video transmission
• Power Supply: DC 12 V–24 V, 4 W typical consumption

Wireless Display and Drive Unit

• Operating System: Embedded LINUX
• Video Decoding: H.264 / H.265 / H.265+ / H.265 AI
• Display Modes: 1 / 2 / 4 split-screen layout
• Video Access: 4K / 1080p input streams
• Image Output: 3,840 × 2,160 (8 MP) HDMI to medical monitor
• Wireless Range: ≥ 100 m line-of-sight, ≥ 50 m through partition walls, 8 MHz bandwidth
• Network Protocols: ONVIF, RTSP, WEB configuration, OSD overlay
• Power Supply: DC 12 V–24 V, 4 W typical consumption

Embedded 4K Image Storage Recorder

• Operating System: Embedded LINUX
• Video Decoding: H.264 / H.265 / H.265 AI / H.265+
• Recording Resolution: 4K / 5 MP / 4 MP / 3 MP / 1080p
• Storage: Dual 2.5-inch SATA bays supporting 1 TB / 2 TB / 4 TB HDDs, drawer-style swap
• Recording Modes: Manual, alarm-triggered, scheduled
• Local Playback: 4K / 5 MP / 4 MP / 3 MP / 1080p time, calendar, event, and channel retrieval
• Backup: Network backup, USB portable hard drive, removable drawer HDD
• Image Output: 3,840 × 2,160 (8 MP) HDMI
• Network: 1 × RJ45 10/100/1000 Mbps adaptive Ethernet
• Network Protocols: ONVIF, RTSP, WEB configuration, OSD overlay
• Power Supply: DC 12 V–24 V, 10 W typical (excluding HDD)

Wireless Bridging Device

• Access Points: Up to 8 simultaneous wireless links
• Communication Bandwidth: 8 MHz
• Data Rate: Up to 16 Mbps
• Wireless Range: ≥ 100 m line-of-sight, ≥ 50 m through walls
• Network: 2 × RJ45 100 Mbps Ethernet
• Power Supply: DC 12 V–24 V, 2 W typical

27-Inch Medical-Grade 4K Monitor

• Display Size: 27-inch diagonal
• Resolution: 1,920 × 1,080 (Full HD), 16:9 native aspect ratio
• Active Area: 579.6 mm × 336.15 mm
• Aspect Modes: 16:9, 4:3, full-screen switchable
• Color Depth: 1,073.7 M colors (10-bit)
• Response Time: 4 ms
• Brightness: 350 cd/m²
• Contrast Ratio: 3,500:1
• Viewing Angle: 89° / 89° / 89° / 89° (top / bottom / left / right)
• Inputs: DVI-D, HDMI, VGA, BNC composite, SD/HD-SDI loop-through, YPbPr, USB 2.0 (media playback and firmware)
• Video Systems: PAL / SECAM / NTSC
• Control: 7-key front panel + infrared remote control
• OSD Languages: English, French, Spanish, Italian, German, Portuguese, Japanese, Simplified Chinese, Traditional Chinese
• Housing: Full-metal chassis + tempered glass front
• Operating Temperature: −10 °C to +50 °C
• Input Voltage: DC 12 V
• Power Consumption: ≤ 18 W
• Net Weight: approximately 13 kg (excluding accessories)

Operating Light Camera System vs. Standalone Surgical Camera

Compared with add-on standalone surgical cameras that require separate tripods, HDMI cabling through sterile drapes, and external recorders, the HD-SY5 operating light camera system integrates the camera into the surgical lamp itself. This eliminates cable clutter, preserves sterile field integrity, and provides one-touch W/T zoom control from the surgeon handle. Compared with cable-bound ceiling-mounted camera systems, the wireless 4K transmission removes the need to plumb signal cables through revolving arms, reducing installation time and simplifying retrofits in existing operating rooms.

Why Choose a Wireless 4K Surgical Imaging Platform

Modern surgical practice depends on high-resolution imaging for documentation, teaching, and remote collaboration. A wireless 4K surgical field imaging platform such as the HD-SY5 removes the physical constraints of wired systems while delivering medical-grade 4K visualization. Hospitals and surgical centers can add advanced imaging capabilities to existing surgical lights without rewiring ceiling structures, making it a future-proof investment for hybrid ORs, telemedicine programs, and digital surgery initiatives.

Installation and Integration

The HD-SY5 operating light camera system is designed for retrofit on compatible ceiling-mounted, wall-mounted, or mobile LED surgical lights. The wireless camera replaces the standard sterilization handle assembly; the display and drive unit mounts behind the surgical display; and the bridging device connects to the hospital network via standard RJ45 Ethernet. One-click code-matching establishes encrypted wireless links between all four imaging components in minutes, and ONVIF / RTSP compliance allows the system to stream directly to existing hospital NVR and PACS infrastructure without proprietary gateways.

Frequently Asked Questions

What surgical procedures is the HD-SY5 operating light camera system designed for?

The HD-SY5 is suitable for general surgery, orthopedic surgery, neurosurgery, cardiothoracic surgery, plastic and reconstructive surgery, gynecological surgery, ENT and ophthalmic surgery, veterinary surgery, and any operating theater requiring high-resolution surgical field documentation. It supports both routine procedures and complex multi-hour operations that demand continuous 4K recording.

Does the HD-SY5 require any cables between the lamp head and the monitor?

No. The wireless surgical field camera transmits 4K video over a dedicated 8 MHz wireless link, eliminating HDMI, SDI, or network cables through the surgical lamp revolving arm. Only power wiring to the lamp head is required, which is already part of the standard surgical light installation.

How stable is the wireless 4K transmission during long procedures?

The wireless image engine provides 8 MHz bandwidth with up to 16 Mbps data rate and supports stable transmission over 100 m line-of-sight or 50 m through partition walls. The encrypted wireless link is engineered for continuous 4K streaming across multi-hour procedures without signal dropouts in typical operating room environments.

Can the surgeon control the camera zoom without breaking sterility?

Yes. The W/T (Wide/Tele) zoom buttons are integrated into the sterilization-grade handle at the center of the surgical lamp. The surgeon or scrub nurse can adjust the optical zoom, focus, and iris without touching any non-sterile surface or leaving the sterile field.

Is the HD-SY5 compatible with existing LED surgical lights?

Yes. The wireless camera module is engineered as a drop-in upgrade for compatible ceiling-mounted, wall-mounted, and mobile LED surgical lights. Existing revolving arms, suspension columns, and ceiling structures can be retained, avoiding costly infrastructure modifications.

Can the recorded surgical video be exported to external storage?

Yes. The embedded 4K image storage recorder supports USB portable hard drive backup, network backup, and removable drawer-style HDD swap. Recordings can also be streamed over the hospital LAN via ONVIF / RTSP to existing NVR, PACS, or VMS platforms.

Does the system support remote consultation and live teaching broadcasts?

Yes. The wireless bridging device forwards 4K surgical field video to the hospital network, where it can be relayed to telemedicine endpoints, lecture halls, and remote consultation sites. ONVIF and RTSP compliance ensures broad compatibility with hospital video infrastructure.

What is the difference between the wireless camera and a standard endoscopy camera?

A wireless surgical field camera captures the open surgical field from above the operative site, while an endoscopy camera captures images from inside body cavities through a scope. The two systems are complementary: the HD-SY5 captures the surgeon's view of the operating field, while endoscopy cameras capture internal anatomy. Many hybrid operating rooms deploy both in parallel for comprehensive surgical documentation.

Is the 27-inch monitor suitable for continuous 24/7 OR operation?

Yes. The medical-grade monitor features a full-metal chassis with tempered glass front, a wide −10 °C to +50 °C operating temperature range, and 4 ms response time for crisp surgical video. The display is engineered for 24/7 use in operating theaters and procedure rooms.

What languages are supported on the monitor OSD?

The monitor OSD supports English, French, Spanish, Italian, German, Portuguese, Japanese, Simplified Chinese, and Traditional Chinese, allowing surgical teams worldwide to configure the display in their preferred language.

Does the system integrate with hospital PACS or VMS platforms?

Yes. ONVIF and RTSP compliance across all four imaging components allows direct integration with most hospital PACS, NVR, and video management systems without proprietary drivers. The embedded storage device also exposes standard network backup paths for archival workflows.

What maintenance does the system require?

The HD-SY5 operating light camera system requires minimal routine maintenance. The LED surgical light module has a service life exceeding 50,000 hours, the camera lens can be cleaned with a soft optical cloth, and the storage device supports hot-swappable drawer HDDs for archival rotation. Firmware updates can be applied via USB or network without interrupting clinical workflows.
