Door-Type & Folding-Cloth Curtain Frames, Universal Rail Holders & Retainers — Anesthesia Screen and Surgical Instrument Mounting Solutions for Operating Table Side Rails
Product Title
Door-Type Curtain Frame, Folding Cloth Curtain Frame, Universal Rail Holder & Retainer for Operating Table | 304 Stainless Steel Anesthesia Screen Frame and Surgical Instrument Mount | Universal Side-Rail Compatibility
Product Overview
This specialized range of door-type curtain frames, folding-cloth curtain frames, universal rail holders, and retainers provides the complete mounting infrastructure for anesthesia screens, surgical drapes, and instrument supports on any operating table side rail. Fabricated entirely from 304 stainless steel for corrosion resistance, structural rigidity, and full autoclave compatibility, each component is engineered to deliver secure, vibration-free attachment that maintains the sterile barrier between the anesthesia workstation and the surgical field throughout the procedure.
The curtain frame family includes two distinct designs — a double-sided door-type frame with extension rods that installs on both sides of the side rail for maximum stability, and a folding-cloth curtain frame with a compact 16 mm rod and 12 mm extension rod for lightweight, space-efficient drape support. Both designs integrate seamlessly with the finator (fixator) system to create a rigid, adjustable curtain frame that can be configured to any height and width required by the surgical team.
The universal holder and retainer family spans multiple plate sizes and round-hole diameters — from 25 × 8 mm to 32 × 9 mm clamp plates and 17 mm to 19 mm round holes — covering the full spectrum of side-rail profiles and mounting rod sizes used by surgical instrument holders, auxiliary support arms, and positioning accessories across all major operating table brands. Together, these components form the essential mounting backbone that enables every other positioning accessory to function reliably on the operating table.
Key Features & Clinical Advantages
304 stainless steel construction — All curtain frames, holders, and retainers are fabricated from medical-grade 304 stainless steel that resists corrosion from repeated disinfection, maintains structural integrity under sustained load, and withstands standard autoclave sterilization cycles without deformation or surface degradation.
Double-sided door design (FP-036-A1) — The door-type curtain frame installs on both sides of the side rail, creating a symmetrical, balanced mounting structure that resists lateral forces and prevents the curtain frame from tilting or shifting when the anesthesia drape is attached and subjected to tension or accidental contact.
Folding-cloth compact design (FP-036-C1) — The folding-cloth curtain frame uses a 16 mm main rod with a 12 mm extension rod, providing a lightweight, low-profile solution for facilities that prefer a minimalist curtain frame or where space around the side rail is constrained by adjacent accessories.
Extension rod compatibility — Both curtain frame designs incorporate extension rods that allow the frame height to be adjusted to match the specific drape dimensions and anesthesia screen requirements of each procedure, ensuring the sterile barrier extends from the table surface to the required height without gaps.
Multiple plate and hole sizes for universal holders — The holder and retainer range covers clamp plates from 25 × 8 mm to 32 × 9 mm and round holes of 17 mm and 19 mm, ensuring a precise fit on the side-rail profiles of all major operating table brands and accepting the standard mounting rod sizes used by surgical instrument holders and auxiliary supports.
Multi-size inserting rod options (FP-039-A1/A3) — The universal retainer/adapter accepts inserting rods in multiple sizes — 10 mm, 6L, 5L, and 10 — as well as a 30 × 6 mm rod, providing exceptional versatility for adapting accessories with non-standard rod diameters to the operating table side rail.
Rapid installation and removal — All components feature tool-free, knob-actuated or lever-actuated tightening mechanisms that allow surgical staff to install, adjust, and remove curtain frames and instrument holders in seconds, streamlining case setup and turnover.
Model Variants & Specifications
Curtain Frames
FP-036-A1 — Door-Type Curtain Frame / Anesthesia Curtain Frame
A robust curtain frame featuring a double-sided door design that installs on both sides of the operating table side rail, creating a symmetrical mounting structure with extension rods that extend upward to support the anesthesia screen or surgical drape. The double-sided installation distributes the load evenly across the rail, preventing the frame from cantilevering or tilting to one side — a critical advantage when the drape is large, heavy, or subjected to lateral forces from the anesthesia team's movements. The frame is designed to be used together with the finator (fixator), which provides the adjustable clamping mechanism that locks the frame at the desired height and angle. The 304 stainless steel construction ensures long-term durability and full autoclave compatibility. This model is the preferred choice for procedures requiring a tall, stable anesthesia screen — including cardiac surgery, neurosurgery, and any operation where the sterile barrier must extend well above the table surface to separate the anesthesia workstation from the surgical field.
FP-036-C1 — Folding Cloth Curtain Frame
A compact curtain frame built on a 16 mm diameter main rod with a 12 mm diameter extension rod, designed to fit standard side rails with a minimal footprint. The folding-cloth design allows the frame to be collapsed or folded when not in use, reducing storage space and simplifying transport between operating rooms. The 16 mm rod provides sufficient rigidity to support standard-weight anesthesia drapes and surgical screens, while the 12 mm extension rod allows fine-tuned height adjustment to match the drape dimensions. This model is ideal for facilities that prefer a lightweight, space-efficient curtain frame solution or where the side rail space is at a premium due to multiple accessories being mounted simultaneously.
Universal Holders & Rail Holders

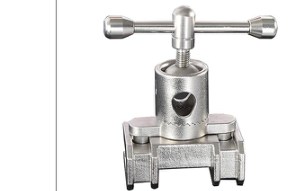

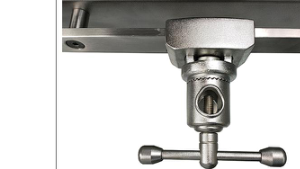

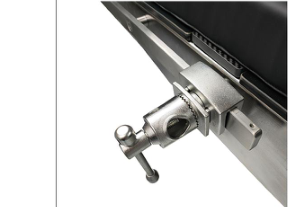

FP-037-A4 / FP-037-A5 — Universal Holder / Rail Holder
Universal rail holders with clamp plates sized 30 × 10 mm (FP-037-A4) and 32 × 9 mm (FP-037-A5), each featuring a 17 mm round hole for mounting auxiliary supports and instruments on the side rail. The 17 mm round hole accommodates the standard 17 mm mounting rods used by many instrument holders, auxiliary support arms, and positioning accessories. The two plate-size variants ensure compatibility with both 30 × 10 mm and 32 × 9 mm side-rail profiles, covering the rail dimensions found on a wide range of operating table brands. The holder's precision-machined round bore provides a snug, vibration-free fit that prevents the mounted accessory from wobbling or rotating under load.
FP-038-A2 / FP-038-A3 / FP-038-A4 / FP-038-A6 — Universal Holder / Retainer
A family of four universal holders and retainers with clamp plates sized 25 × 10 mm (FP-038-A2), 30 × 8 mm (FP-038-A3), 30 × 10 mm (FP-038-A4), and 25 × 8 mm (FP-038-A6), each featuring a 19 mm round hole. The 19 mm diameter is the most widely used mounting rod size across the surgical positioning accessory industry, making this series the most versatile and frequently specified holder in the range. The four plate-size variants ensure a precise match to the side-rail profile of virtually any operating table brand, while the standardized 19 mm opening accepts the full range of 19 mm rod accessories — including instrument holders, camera supports, retractors, and auxiliary arms.
Universal Retainers & Adapters
FP-039-A1 / FP-039-A3 — Universal Retainer / Adapter
Versatile universal retainers designed with multi-size inserting rod compatibility — accepting rods in 10 mm, 6L, 5L, and 10 configurations — as well as a 30 × 6 mm rod. This multi-size capability makes the FP-039 series the most adaptable retainer in the range, able to accommodate accessories with non-standard or varying rod diameters without requiring a dedicated clamp for each size. The retainer is used for fixing auxiliary supports and instruments on the side rail, providing a secure, adjustable connection that can be tightened to the required holding force and released quickly for accessory swaps between cases. The 304 stainless steel construction ensures long-term durability and full autoclave compatibility.
Clinical Applications
These curtain frames, universal holders, and retainers serve as the foundational mounting infrastructure for the operating room across all surgical disciplines:
Anesthesia screen installation — Door-type and folding-cloth curtain frames provide the structural support for anesthesia screens and surgical drapes that create the sterile barrier between the anesthesia workstation and the surgical field — essential for maintaining aseptic technique in every procedure.
Cardiac and vascular surgery — Tall, stable door-type curtain frames support large anesthesia screens required during cardiopulmonary bypass and major vascular procedures where the anesthesia team works in close proximity to the surgical field.
Neurosurgery — Curtain frames maintain the sterile barrier during lengthy cranial and spinal procedures where the drape must remain undisturbed for many hours while the surgical team works around it.
Laparoscopic and endoscopic surgery — Universal holders with 19 mm round holes secure camera support arms, instrument holders, and auxiliary support arms for laparoscopic cholecystectomy, appendectomy, and other minimally invasive procedures.
Arthroscopy — Rail holders and retainers mount camera supports, shaver handles, and irrigation tubing holders on the side rail, keeping essential instruments within reach without cluttering the surgical field.
Orthopedic surgery — Universal holders secure traction bows, reduction clamps, and auxiliary support arms for fracture fixation, joint replacement, and limb alignment procedures.
ENT and ophthalmic surgery — Compact folding-cloth curtain frames provide drape support in procedures where space around the patient's head is at a premium and a low-profile curtain frame is preferred.
General surgery — Universal retainers and adapters provide the flexible mounting interface needed to attach a wide variety of instrument holders, retractor arms, and auxiliary supports to the side rail, adapting to the specific requirements of each case.
Multi-accessory configurations — Multiple holders and retainers can be installed on a single side rail at different positions, allowing the surgical team to mount several accessories simultaneously — curtain frames at the head end, instrument holders at the mid-table, and auxiliary supports at the foot end — each secured by its own precisely matched clamp.
Cross-facility standardization — The range of plate sizes and hole diameters covers the side-rail dimensions and rod sizes of all major operating table brands and accessory manufacturers, enabling hospitals with mixed equipment inventories to standardize on a single holder and retainer inventory that serves every table and every accessory in every operating room.
