Carbon Fiber X-Ray Transparent Head Frames & Cervical Traction Frames — Neurosurgery and Intraoperative Imaging Positioning Solutions
Product Title
Carbon Fiber X-Ray Permeable Head Frame and Cervical Traction Frame for Neurosurgery | Full Carbon Fiber Construction for Intraoperative Imaging | Gel Head Support with Adjustable Angle Spacing | Side-Rail Clamping for Any Operating Table Brand
Product Overview
This specialized range of carbon-fiber X-ray transparent head frames and cervical traction frames addresses the most demanding positioning and imaging requirements in neurosurgery, cervical spine surgery, and any procedure where intraoperative radiographic visualization of the cranial and cervical anatomy must be achieved without removing or repositioning the head support. Every component in the system — from the main frame structure to the clamping devices, guide wheels, and head support surfaces — is constructed entirely from carbon fiber or incorporates carbon fiber as the primary structural material, delivering full X-ray transmission with zero radiographic artifact.
This complete radiolucency is not merely a convenience — it is a clinical necessity in neurosurgery and cervical spine surgery, where intraoperative fluoroscopy, plain radiographs, and CT verification are used to confirm implant position, assess decompression adequacy, and verify anatomical alignment in real time. Any metallic component in the head frame's imaging field would create streak artifact, obscure critical anatomical landmarks, and potentially necessitate repeat imaging — extending operative time, increasing radiation exposure, and compromising surgical precision. The all-carbon-fiber construction of these head frames eliminates this risk entirely, providing a radiolucent platform that remains invisible to X-ray imaging from every angle.
The system spans craniocerebral head frames for general neurosurgical positioning with gel head supports for pressure-trauma prevention, to cervical traction head frames with integrated guide wheel groups for posterior cervical surgery, to standalone cervical traction guide wheel assemblies that convert existing head frames into cervical traction platforms. All variants feature side-rail clamping with adjustable spacing, enabling the frame to be secured to both sides of any operating table brand and positioned at the precise angle and height required for each procedure.
Key Features & Clinical Advantages
Full carbon fiber construction for X-ray transparency — Every structural element of the head frame is fabricated from carbon fiber, delivering complete radiolucency across the entire imaging field. The frame produces zero streak artifact, zero beam hardening, and zero scatter on intraoperative fluoroscopy, plain radiographs, and CT scans — enabling the surgeon to visualize cranial and cervical anatomy with full diagnostic clarity without removing or repositioning the head support.
Gel head support for pressure trauma prevention — Select models incorporate gel-based head support surfaces that conform to the patient's cranial contour, distributing pressure evenly across the occiput and temporal regions during prolonged neurosurgical procedures. Gel's viscoelastic properties absorb micro-movements and prevent focal pressure points that could lead to scalp necrosis, occipital nerve compression, or pressure-related hair loss during surgeries lasting many hours.
Adjustable angle spacing (520–720 mm) — The craniocerebral head frame with adjustable angle spacing allows the distance between the head support contact points to be set anywhere within a 520–720 mm range, accommodating patients of all head sizes and enabling the surgical team to optimize the head position for the specific surgical approach — whether the procedure requires neutral alignment, slight flexion, extension, or lateral tilt.
Double guide wheels for cervical traction — The FP-026-C-03 and FP-027 series incorporate double guide wheels that provide smooth, low-friction traction force transmission for posterior cervical surgery. The guide wheels allow the traction vector to be adjusted precisely, ensuring that the cervical spine is placed under the exact amount of distraction required for the procedure — whether for laminectomy, cervical disc replacement, or posterior cervical fusion.
Side-rail clamping with adjustable spacing — All models feature clamping devices that attach to both sides of the operating table side rail with adjustable spacing, ensuring a secure, symmetrical fit regardless of the table brand or rail width. The adjustable clamping mechanism accommodates the full range of side-rail dimensions found across major operating table manufacturers.
Soft memory sponge with multi-directional adjustment (FP-027-B1) — The cervical traction guide wheel group features soft memory sponge padding that is adjustable from front to back and left to right, allowing the head support to conform precisely to the patient's cranial anatomy and maintain stable, comfortable fixation throughout the procedure.
Long-term surgical pressure trauma prevention — Across the entire product range, the combination of carbon fiber's lightweight rigidity, gel or memory sponge cushioning, and adjustable contact-point spacing is specifically engineered to prevent the pressure-related complications — including scalp necrosis, occipital neuralgia, and airway compromise — that can occur when the head is immobilized in a fixed position for extended neurosurgical procedures.
Model Variants & Specifications
Craniocerebral Head Frames
FP-026-C-01 — Craniocerebral Head Frame, Carbon Fiber X-Ray Permeable (Adjustable Spacing)
A fully carbon-fiber craniocerebral head frame designed for side-rail clamping on both sides of the operating table, with adjustable spacing and angle spacing specifically engineered for long-term surgical pressure trauma prevention. The adjustable spacing mechanism allows the surgical team to set the distance between the head support contact points to match the patient's head dimensions precisely — preventing the focal pressure concentration that occurs when a fixed-spacing head frame is used on a patient whose head size falls outside the design range. The adjustable angle spacing further allows the head support surfaces to be tilted to the optimal angle for the surgical approach, ensuring that the patient's head is held in a position that provides both surgical access and physiological comfort — maintaining airway patency, venous drainage, and cervical alignment throughout the procedure. The all-carbon-fiber construction ensures that the frame remains completely invisible on intraoperative imaging, making it suitable for any neurosurgical procedure requiring real-time radiographic verification — including cranial tumor resection, aneurysm clipping, stereotactic biopsy, and deep brain stimulation electrode placement.
FP-026-C-02 — Craniocerebral Head Frame, X-Ray Permeable (Gel Head Support)
A carbon-fiber craniocerebral head frame that upgrades the standard head support surface to a gel-based head support specifically designed to prevent long-term pressure trauma during extended neurosurgical procedures. The gel support surface conforms to the patient's occipital and temporal contours, distributing pressure across a broad contact area and absorbing micro-movements that occur during patient repositioning or table adjustment. This is particularly critical in procedures lasting four hours or longer — such as complex cranial base surgery, multi-lesion tumor resection, or combined cranial-spinal procedures — where prolonged immobilization of the head on a rigid surface can lead to occipital scalp pressure necrosis, occipital nerve compression neuropathy, and post-operative hair loss at the pressure points. The gel support's viscoelastic properties provide continuous pressure redistribution throughout the procedure, maintaining tissue perfusion at the contact points even during the longest operations. The carbon fiber frame maintains full X-ray transparency, and the gel support is removable for cleaning and disinfection between cases.

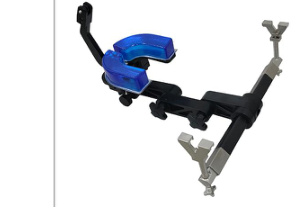

FP-026-C-03 — Craniocerebral Head Frame, Carbon Fiber X-Ray (Gel Support with Double Guide Wheels)
The most advanced craniocerebral head frame in the range, combining the features of the FP-026-C-01 and FP-026-C-02 with the addition of double guide wheels for traction in posterior cervical surgery. This model features side-rail clamping on both sides of the operating table, a gel head support for pressure trauma prevention, and adjustable angle spacing in the 520–720 mm range to accommodate patients of all head sizes. The double guide wheels are integrated into the frame structure and provide smooth, low-friction traction force transmission for posterior cervical procedures — including cervical laminectomy, cervical laminoplasty, posterior cervical fusion, and cervical deformity correction. The guide wheels allow the traction vector to be adjusted precisely in both the vertical and horizontal planes, enabling the surgeon to apply the exact amount of cervical distraction required for the procedure while maintaining the head in a stable, immobilized position. The adjustable angle spacing of 520–720 mm ensures that the head support contact points can be positioned to match the patient's anatomy precisely, preventing the focal pressure concentration that leads to long-term pressure trauma. This model is the preferred choice for combined cranial-cervical procedures where both neurosurgical head fixation and cervical traction are required in the same operation.
Cervical Traction Head Frames & Guide Wheel Groups

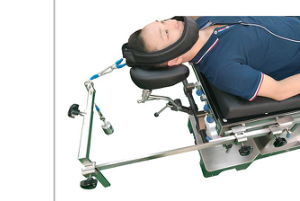

FP-027-A1 — Cervical Traction Head Frame + Guide Wheel Group
A combined head frame and cervical vertebra guide wheel system featuring side-rail plug-in mounting with adjustable spacing, designed to provide integrated head fixation and cervical traction in a single unit. The head frame component secures the patient's head in a stable, immobilized position, while the integrated guide wheel group provides smooth, adjustable cervical traction force for posterior cervical spine procedures. The side-rail plug-in design allows the entire unit to be installed on the operating table side rail with adjustable spacing, ensuring a secure fit on any table brand. The adjustable spacing mechanism accommodates different table widths and patient body sizes, while the guide wheels provide the low-friction traction force transmission needed for precise cervical distraction control. This combined design eliminates the need to install separate head frame and traction devices, reducing setup time and simplifying the positioning workflow for cervical spine surgery.

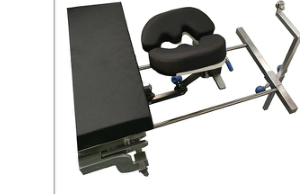

FP-027-B1 — Cervical Traction Guide Wheel Group (Adapter + U-Shaped Frame)
A standalone cervical traction guide wheel assembly designed to convert an existing head frame into a cervical traction platform. The system comprises a head frame adapter, a U-shaped head frame, and a cervical traction guide wheel group, all padded with soft memory sponge that is comfortable and adjustable from front to back and left to right. The U-shaped head frame cradles the patient's head from below, providing support while leaving the posterior cervical spine completely exposed for surgical access. The memory sponge padding conforms to the patient's cranial contour, distributing pressure evenly and preventing focal compression during prolonged procedures. The front-to-back and left-to-right adjustability allows the head support to be fine-tuned to the exact position required for the surgical approach — whether the procedure requires neutral alignment, slight flexion for posterior cervical access, or lateral tilt for foraminal decompression. The cervical traction guide wheels provide smooth, adjustable traction force for cervical distraction during laminectomy, disc replacement, and fusion procedures. The head frame adapter ensures compatibility with a wide range of existing head frame models, allowing facilities to add cervical traction capability to their current positioning inventory without replacing the entire head frame system.
Clinical Applications
This carbon fiber head frame and cervical traction system supports procedures across the full spectrum of neurosurgery and cervical spine surgery:
Cranial tumor resection — Full X-ray transparency enables intraoperative fluoroscopy and CT verification of tumor extent, resection margins, and implant position without removing the head frame.
Cerebral aneurysm clipping — The radiolucent head frame allows real-time angiographic verification of clip placement and parent vessel patency during microsurgical aneurysm surgery.
Stereotactic neurosurgery — The adjustable angle spacing and gel head support provide precise, comfortable head fixation for stereotactic biopsy, deep brain stimulation electrode placement, and radiosurgery targeting.
Posterior cervical laminectomy and laminoplasty — The double guide wheels and cervical traction capability provide controlled cervical distraction for posterior decompression of the spinal cord and nerve roots.
Posterior cervical fusion — The traction frame maintains consistent cervical alignment during lateral mass screw placement, pedicle screw insertion, and rod contouring, with full fluoroscopic transparency for real-time screw trajectory verification.
Cervical disc replacement — The adjustable traction and radiolucent construction enable precise disc space preparation and implant positioning with continuous intraoperative imaging.
Cervical deformity correction — The traction guide wheels provide the controlled, adjustable distraction force needed for osteotomy, realignment, and multi-level fixation in cervical kyphosis and deformity correction.
Combined cranial-cervical procedures — The FP-026-C-03 model supports procedures that span the craniocervical junction — including foramen magnum decompression, Chiari malformation surgery, and occipitocervical fusion — where both cranial head fixation and cervical traction are required simultaneously.
Skull base surgery — Full radiolucency enables intraoperative imaging verification of bone removal extent, implant position, and anatomical landmarks during complex skull base approaches.
Traumatic brain injury monitoring — The gel head support prevents pressure-related scalp injury during prolonged ICU-level neurosurgical procedures where the head must remain immobilized for many hours.
Pediatric neurosurgery — The adjustable angle spacing (520–720 mm) accommodates the smaller cranial dimensions of pediatric patients while maintaining the same radiolucent performance and pressure-distribution benefits.
